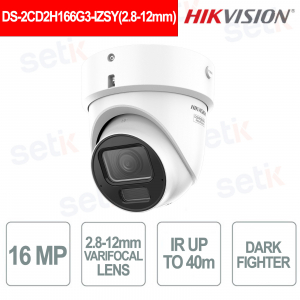

DS-2CD2H166G3-IZSY IP Turret Camera 16MP 2.8-12mm AcuSense DarkFighter IR 40m PoE IP67 IK10 - Hikvision

DS-2CD2H166G3-IZSY IP Turret Camera 16MP 2.8-12mm AcuSense DarkFighter IR 40m PoE IP67 IK10 - Hikvision

 
Optic calculation
-35%

DS-2CD2H166G3-IZSY(2.8-12mm) - is a professional 16 MP Turret IP camera with resolution up to 4608 × 3456 and 2.8-12 mm motorized varifocal lens , ideal for precisely adjusting the frame. Powered by DarkFighter technology ensures high performance in low light conditions, while AcuSense with Deep Learning enables intelligent classification of people and vehicles . It integrates real WDR 130 dB , IR illumination up to 40 m , dual array microphone , Face Capture and advanced perimeter protection. It supports microSD up to 512 GB , IEEE 802.3at PoE power supply and has audio and alarm inputs/outputs. The metal structure with IP67, IK10 and NEMA 4X protections guarantees high resistance for professional video surveillance systems in outdoor environments. Hikvision

Technical Data Sheet

referencia : DS-2CD2H166G3-IZSY(2.8-12mm)

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-2CD2H166G3-IZSY(2.8-12mm) – 2.8-12mm 16MP VARIFOCAL TURRET CAMERA - ARTIFICIAL INTELLIGENCE - DEEP LEARNING FUNCTION

Hikvision

The Hikvision DS-2CD2H166G3-IZSY is a 16 MP Turret IP camera with a maximum resolution of 4608 × 3456 and a 2.8-12 mm motorized varifocal lens , ideal for precisely adapting the frame to different surveillance areas. Powered by DarkFighter technology improves vision in low light conditions, while AcuSense with Deep Learning enables intelligent classification of people and vehicles . It integrates real WDR 130 dB , IR up to 40 m , dual array microphone , Face Capture and advanced perimeter protection. It supports microSD up to 512 GB , IEEE 802.3at PoE power supply and has audio and alarm inputs/outputs. The metal structure with IP67, IK10 and NEMA 4X protections ensures high reliability even in outdoor environments.

Main features:

  • Resolution: 16 MP, 4608 × 3456
  • Lens: 2.8-12 mm motorized
  • AI: AcuSense, People and Vehicles
  • DarkFighter: Advanced low-light vision
  • IR: up to 40m
  • Audio: Dual array microphone
  • Storage: microSD up to 512 GB
  • PoE: IEEE 802.3at
  • Protection: IP67, IK10, NEMA 4X

Further details

✅ Optics :
 2.8-12mm motorized varifocal lens with F1.2 maximum aperture , designed to easily adjust the framing according to the area to be monitored, with horizontal FOV from 99° to 43° , vertical from 72° to 33° and diagonal from 136° to 54°.
✅ Resolution:
 1/1.8" Progressive Scan CMOS 16 MP sensor with maximum resolution of 4608 × 3456 pixels , ideal for obtaining extremely high-detail UHD images and improving observation capacity in professional video surveillance applications.
✅ Artificial Intelligence:
 Hikvision AcuSense technology based on Deep Learning for intelligent classification of people and vehicles , allowing security events to be focused on relevant targets and making alarm management more precise.
✅ DarkFighter:
 Powered by DarkFighter technology for high performance in low light conditions , with sensitivity up to 0.0008 Lux in color and 0 Lux with IR , supported by intelligent infrared illumination up to 40 meters .
✅ Audio:
It integrates a dual array microphone with ambient noise filtering, as well as 1 Line-In input and 1 Line-Out output ; it supports mono audio and G.711, G.722.1, G.726, MP2L2, PCM, MP3 and AAC-LC codecs for versatile audio management.
✅ Deep Learning Function :
 It offers intelligent perimeter protection with line crossing, intrusion, entry and exit detection, classifying targets as people or vehicles; it also integrates the Face Capture function for facial acquisition.
✅ PoE :
 It supports IEEE 802.3at, Class 4 PoE power supply with a maximum power consumption of 15W , allowing power and data to be transmitted over a single Ethernet cable for simple wiring and installation.
✅  Network:
 It has a 10/100 Mbps RJ45 Ethernet port and supports protocols such as TCP/IP, HTTPS, IPv4/IPv6, RTSP, SNMP and SFTP , ONVIF Profile S/G/T , NAS and ANR compatibility ; it is manageable via Hik-Connect, iVMS-4200 and Hik-Central and supports up to 6 simultaneous Live Views .

Technical data sheet

DS-2CD2H166G3-IZSY(2.8-12mm)
Room
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 4608 × 3456
Min. Illumination Color: 0.0008 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV horizontal FOV 99° to 43°, vertical FOV 72° to 33°, diagonal FOV 136° to 54°
Lens Mount Integrated
Iris Type Fixed
Openings Max. F1.2
Depth of Field 1 m to ∞
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850mm
Video
Main Stream 50 Hz:
12.5 fps (4608 × 3456)
20 fps (4608 × 2592)
25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (4608 × 3456)
20 fps (4608 × 2592)
30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream

50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream

50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Substream: H.265/H.264/MJPEG
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video Bit Rate

32 Kbps to 24 Mbps
H.264 Type

Baseline Profile, Main Profile, High Profile
H.265 Type

Main Profile
Bit Rate Control

CBR,VBR
Region of Interest (ROI)

1 fixed region for main stream
Scalable Video Coding (SVC)

H.264 and H.265 encoding
Audio
Audio Type Mono sound
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View

Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host

Up to 32 users.
3 user levels: administrator, operator and user
Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Client

iVMS-4200,Hik-Connect,Hik-Central
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Web Browser

Free live view plugin: Chrome 80+, Firefox 80+, Edge 89+
Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch

Yes
Image Settings

Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Image Enhancement BLC,HLC,3D DNR,Distortion Correction,Defog
Day/Night Switch

Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)

130 dB
SNR ≥ 52 dB
Privacy Mask

4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Audio Built-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email
Deep Learning Function
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power

12 VDC ± 25%, 1 A, max. 12 W, 2-core terminal block, reverse polarity protection,
PoE: IEEE 802.3af, Class 4, max.15W
Material

Base: Metal, cover: Metal
Dimension

Ø143.5 mm × 142.7 mm (Ø5.7" × 5.6")
Package Dimension

170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight

Approx. 1245 g (2.7 lb.)
With Package Weight

Approx. 1520 g (3.4 lb.)
Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function

Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding
Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment

CE-RoHS (2011/65/EU)
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection

IP67: IEC 60529-2013,IK10: IEC 62262:2002
Anti-Corrosion Protection

NEMA 4X (NEMA 250-2018)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
