DS-2CD2T87G3P-LIS2UY/SL - is an 8 MP panoramic bullet IP camera with a 2.8 mm F1.0 fixed lens and a 182.6° horizontal field of view, ideal for 180° panoramic coverage. ColorVu 3.0 technology offers 24/7 color images, supported by HikAI-ISP , Smart Hybrid Light with IR and white light up to 40 m and 130 dB WDR . Artificial intelligence with Deep Learning distinguishes people and vehicles and supports advanced perimeter protection functions. It integrates Arrayed Dual-Mic , speaker, audio alarm and strobe light for active deterrence. The equipment includes IEEE 802.3at PoE , H.265+ compression, microSD up to 512 GB and IP67 and NEMA 4X protection. Hikvision
BUSQUE INSTALADOR

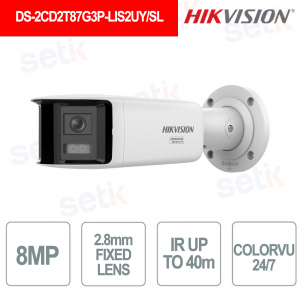

DS-2CD2T87G3P-LIS2UY/SL – 8MP 2.8mm FIXED LENS BULLET CAMERA – 180° PANORAMIC – ARTIFICIAL INTELLIGENCE – 24/7 COLORVU
The Hikvision DS-2CD2T87G3P-LIS2UY/SL is an 8 MP panoramic bullet IP camera with 2.8 mm F1.0 fixed lens and 182.6° horizontal field of view, ideal for 180° panoramic coverage. ColorVu 3.0 technology guarantees 24/7 color images, supported by HikAI-ISP , Smart Hybrid Light with IR and white light up to 40 m and WDR 130 dB . Artificial Intelligence with Deep Learning allows the classification of people and vehicles and perimeter protection functions. It integrates Arrayed Dual-Mic , speaker, audio alarm and strobe light for active deterrence. It supports IEEE 802.3at PoE , H.265+ compression, microSD up to 512 GB and IP67 protection with NEMA 4X .
Main features:
- Resolution: 8 MP
- Lens: 2.8mm F1.0
- Overview: 180°
- ColorVu: 24/7 color
- AI: People and Vehicles
- Audio: Dual-Mic + speaker
- Alarm: audio + strobe
- PoE: IEEE 802.3at
- Protection: IP67, NEMA 4X
Further details
2.8mm fixed lens with large F1.0 aperture , 182.6° horizontal and 74.6° vertical field of view, designed to monitor large areas with a single camera.
1 /2.5" Progressive Scan CMOS sensor with maximum resolution of 8 MP (4256 × 1888 pixels) and main stream up to 20 fps , for detailed panoramic images.
It offers a 180° panoramic view with an effective horizontal FOV of 182.6° , ideal for expanding the coverage of the monitored area and limiting blind spots.
It integrates Artificial Intelligence algorithms based on Deep Learning to distinguish people and vehicles , improving the accuracy of alarms and reducing irrelevant events.
ColorVu 3.0 technology provides 24/7 color imaging , supported by F1.0 aperture, HikAI-ISP , IR light and white light with a range of up to 40 meters .
It features a built- in Arrayed Dual-Mic with ambient noise filtering, a built-in speaker up to 110 dB at 10 cm and audio input/output interfaces for complete audio management.
It integrates strobe light and active audio alarm to deter any intruders, as well as 1 alarm input and 1 alarm output and linkage functions with recording, capture and audible warning.
Deep Learning perimeter protection supports line crossing, intrusion, area entry and exit detection, with alarms triggered based on person or vehicle targets.
It supports IEEE 802.3at Class 4 PoE power , with a maximum power consumption of 24W , allowing you to transmit power and data over the Ethernet connection and simplifying installation.
It integrates 10/100 Mbps Ethernet RJ45 port , IPv4/IPv6 protocols, HTTPS, RTSP and ONVIF Profile S/G/T support , with up to 6 simultaneous live views , NAS and compatibility with Hik-Connect, iVMS-4200 and Hik-Central .
Technical data sheet
| DS-2CD2T87G3P-LIS2UY/SL | |
| Room | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 4256 × 1888 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | horizontal FOV 182.6°, vertical FOV 74.6° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Openings | F1.0 |
| Depth of Field | 1.6 m to ∞ |
| Illuminator | |
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850mm |
| Video | |
| Main Stream | 50 Hz: 20 fps (4256 × 1888, 4096 × 1856) 60 Hz: 20 fps (4256 × 1888, 4096 × 1856) |
| Sub-Stream |
50Hz: 20fps (1200×536, 960×432) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 24 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed regions for each stream |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | SNMP,SSL/TLS,IPv6,IGMP,DNS,SFTP,WebSockets,QoS,DDNS,SMTP,PPPoE,DHCP,WebSocket, FTP,NTP,HTTP,RTSP,IPv4,HTTPS,UPnP,RTP,TCP/IP,ICMP,802.1X,RTCP,UDP |
| Simultaneous Live View |
Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host |
Up to 32 users. |
| Security |
IP address filter, basic and digest authentication for HTTP/HTTPS, TLS 1.3, host authentication (MAC address), watermark, RTP/RTSP over HTTPS, complicated password, AES128/256, Password protection, WSSE and digest authentication for Open Network Video Interface, TLS 1.2, 802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), control timeout settings, HTTPS encryption, security audit log |
| Client |
iVMS-4200,Hik-Connect,Hik-Central |
| Network Storage |
NAS (NFS, SMB/CIFS) |
| Web Browser |
Free live view plug-ins: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ |
| Image | |
| Image Parameters Switch |
Yes |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
130 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | No |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Speaker | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB. |
| Audio | Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception, alarm input and output |
| Smart Event | Scene change detection |
| Linkage | notify surveillance center, trigger alarm output, trigger recording, trigger capture, audible warning, send email |
| Deep Learning Function | |
| Face Capture | No |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power |
12 VDC ± 25%, 1.67 A, max. 20 W, Ø5.5 mm coaxial power plug, reverse polarity protection |
| Material |
Cover: metal, main body: metal |
| Dimension |
118.6 mm × 78 mm × 306.5 mm (4.67" × 3.07" × 12.07") |
| Package Dimension |
405 mm × 190 mm × 180 mm (15.94" × 7.48" × 7.09") |
| Weight |
Approx. 1440 g (3.17 lb.) |
| With Package Weight |
Approx. 2100 g (4.63 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Flashing Light |
White Light |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013 |
| Anti-Corrosion Protection |
NEMA 4X (NEMA 250-2018) |
