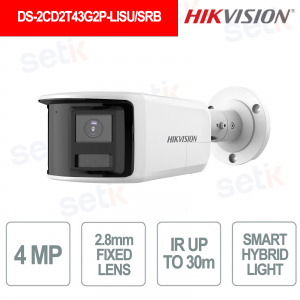

DS-2CD2T43G2P-LISU/SRB IP Camera 4MP 2.8mm Panoramic 180° AcuSense Smart Hybrid Light PoE - Hikvision
DS-2CD2T43G2P-LISU/SRB - is a 4 MP panoramic bullet IP camera with 2.8 mm fixed lens and 180° horizontal field of view, ideal for monitoring large areas. It integrates AcuSense technology for intelligent detection of people and vehicles , reducing unwanted alarms, and Smart Hybrid Light with IR illumination and white light up to 30 meters . It offers integrated two-way audio , active alarm with red and blue strobe light and audible signaling, as well as recording on microSD up to 512 GB . It supports H.265+ compression, IEEE 802.3af PoE power supply, 120 dB WDR and IP67 protection for professional installations even outdoors. Hikvision
BUSQUE INSTALADOR
DS-2CD2T43G2P-LISU/SRB – 4MP 2.8mm FIXED LENS BULLET CAMERA - ARTIFICIAL INTELLIGENCE - STROBE LIGHT - SMART HYBRID LIGHT
The Hikvision DS-2CD2T43G2P-LISU/SRB is a 4 MP panoramic bullet IP camera with a 2.8 mm fixed lens and a 180° horizontal field of view, ideal for monitoring large areas. It integrates AcuSense technology with intelligent detection of people and vehicles , Smart Hybrid Light with IR illumination and white light up to 30 m and 120 dB WDR for clear images even in high contrast conditions. It features two-way audio , an audible alarm and red and blue strobe light , recording on microSD up to 512 GB , H.265+ compression, PoE power supply and IP67 protection for outdoor installations.
Main features:
- Resolution: 4 MP
- Optics: 2.8 mm
- Overview: 180°
- AcuSense: People and Vehicles
- Smart Hybrid Light: up to 30 m
- Audio: Two-way
- Alarm: red/blue light + siren
- Storage: microSD up to 512 GB
- PoE: IEEE 802.3af
- Protection: IP67
Further details
2.8mm fixed focal length lens with F1.6 aperture , designed to offer wide scene coverage and effective panoramic view in video surveillance applications.
1 /2.5" Progressive Scan CMOS sensor with maximum resolution of 4 MP (3008 × 1328) and main stream up to 20 fps , for detailed images and high-definition surveillance.
It integrates intelligent video analytics functions capable of distinguishing people and vehicles , applicable to motion detection and smart events to make alarm management more precise.
The 2.8 mm lens offers a 180° horizontal and 77° vertical field of view , allowing you to monitor very large areas and is suitable for car parks, streets, parks and large open spaces.
Intelligent illumination technology with IR light and white light and a range of up to 30 meters , designed to improve visibility and monitoring even in low light conditions or in the dark.
Hikvision AcuSense technology with person and vehicle target classification, used for events such as motion detection, line crossing and intrusion , increasing the effectiveness of video surveillance.
Integrated two-way audio system with microphone and speaker , with ambient noise filtering and support for various audio codecs for real-time communication and security.
- It has 1 alarm input and 1 alarm output and supports active alerts via beep and red and blue strobe light , as well as triggering recording, image capture, email and notification to the surveillance center.
It supports IEEE 802.3af, Class 3 PoE power supply, allowing power and data to be transmitted through the Ethernet connection and simplifying the installation of the IP camera.
It integrates a 10/100 Mbps Ethernet RJ45 port and supports network protocols such as TCP/IP, IPv4, IPv6, HTTP, RTSP, RTP and FTP , as well as ONVIF Profile S, T and G , ISAPI, SDK and management via Hik-Connect and iVMS-4200 .
Technical data sheet
| DS-2CD2T43G2P-LISU/SRB | |
| Room | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 3008 × 1328 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8mm |
| Focal Length & FOV | horizontal FOV 180°, vertical FOV 77° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Openings | F1.6 |
| Illuminator | |
| Supplement Light Type | White Light, IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850mm |
| Video | |
| Main Stream | 50Hz: 20fps (3008 x 1328) 60Hz: 20fps (3008 x 1328) |
| Sub-Stream |
50Hz: 20fps (1200×536, 960×432) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
1 fixed regions for each stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP |
| Simultaneous Live View |
Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK |
| User/Host |
Up to 32 users. |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Client |
VMS-4200, Hik-Connect |
| Network Storage |
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Web Browser |
Plug-in required live view: IE 11, |
| Image | |
| Image Parameters Switch |
Yes |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Image Enhancement | BLC, HLC, 3D DNR |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR | ≥ 52 dB |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface | |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio | 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection, intrusion detection(support alarm triggering by specified target types (human and vehicle)) |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing |
| General | |
| Power |
12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, |
| Material |
Front cover: Metal, body: Metal, bracket: Metal |
| Dimension |
103.6 mm × 76 mm × 241.9 mm (4.1" × 3.0" × 9.52") |
| Package Dimension |
260 mm × 140 mm × 115 mm (10.2" × 5.5" × 4.5") |
| Weight |
Approx. 1260 g (2.8 lb.) |
| With Package Weight |
Approx. 940 g (2.1 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| General Function |
Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Flashing Light |
Red and Blue Light |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS (2011/65/EU) |
| Protection |
IP67: IEC 60529-2013 |
