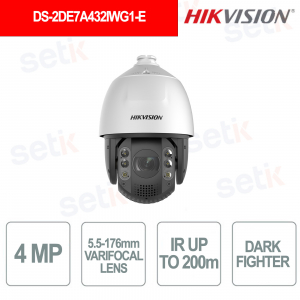

DS-2DE7A432IWG1-E - is a 4MP PTZ Speed Dome IP camera with 5.5-176mm motorized lens, 32× optical zoom and 16× digital zoom, designed for professional monitoring of large areas. Thanks to DarkFighter technology, the 1/2.5" CMOS sensor and IR illumination up to 200 meters , it guarantees detailed images even in low light conditions. AcuSense technology with Deep Learning allows the intelligent classification of people and vehicles, also supporting Smart Tracking , Face Capture and people counting. It integrates dual microphone , speaker, audiovisual alarm with flashing white light, WDR 120 dB and H.265+ compression. The IP67 and IK10 certified structure, 360° PTZ rotation, PoE 802.3bt/Hi-PoE support and microSD storage up to 512 GB make it ideal for advanced video surveillance in large outdoor spaces. Hikvision
BUSQUE INSTALADOR
DS-2DE7A432IWG1-E – 5.5-176mm 4MP VARIABLE LENS PTZ CAMERA – ARTIFICIAL INTELLIGENCE – DARKFIGHTER – 32x OPTICAL ZOOM
The Hikvision DS-2DE7A432IWG1-E is a 4 MP PTZ IP camera with a 5.5-176 mm motorized lens, 32× optical zoom and 16× digital zoom, ideal for professional video surveillance of large areas. It integrates DarkFighter technology and IR illumination up to 200 meters for clear images even in low light conditions. Thanks to AcuSense with Deep Learning , it recognizes and classifies people and vehicles, also supporting Smart Tracking , Face Capture and people counting. It has a built-in dual microphone , speaker, audiovisual alarm, 120 dB WDR , H.265+ compression and microSD memory up to 512 GB. The IP67 and IK10 certified structure, 360° PTZ rotation and 802.3bt/Hi-PoE support ensure reliability and flexibility in outdoor installations.
Main features:
- Resolution: 4 MP, 2560 × 1440
- Lens: 5.5-176mm, 32× zoom
- Night vision: IR up to 200m
- AI: AcuSense and Deep Learning
- Tracking: Automatic/manual Smart Tracking
- Audio: dual microphone and speaker
- PTZ: 360° panorama
- Protection: IP67 and IK10
- Power supply: PoE 802.3bt / Hi-PoE
Further details
5.5-176mm motorized lens with 32 × optical and 16× digital zoom, F1.6 maximum aperture and automatic, semi-automatic or manual focus, ideal for observing details even at great distances.
1/2.5" Progressive Scan CMOS sensor with maximum resolution of 4 MP (2560 × 1440) , designed to obtain detailed and defined images in professional video surveillance applications.
Hikvision AcuSense technology based on AI algorithms that allows you to distinguish and classify people and vehicles , increasing alarm accuracy and reducing irrelevant events.
Powered by DarkFighter technology designed to deliver high performance in low light conditions , with sensitivity down to 0.005 Lux in color and IR support for night surveillance up to 200 meters .
Speed Dome with 360° Pan movement and Tilt from -15° to 90°, up to 300 presets , 8 patrols and 4 pattern scans, to dynamically monitor large areas and points of interest.
It integrates a dual array microphone with a range of up to 8 metres and ambient noise filtering, as well as a built-in speaker with a range of up to 30 metres and audio inputs/outputs for complete management of audio communication.
It has 2 alarm inputs and 1 alarm output and supports intelligent events such as line crossing, intrusion, area entry and exit; events can trigger recording, buzzer, white light flashing , and PTZ actions.
Deep Learning algorithms support Face Capture of up to 5 faces simultaneously and Regional People Counting of up to 8 areas, with analysis of density, number of people and waiting times.
It supports manual tracking and auto-tracking , allowing the PTZ camera to dynamically follow subjects of interest during video surveillance events.
Compatible with IEEE 802.3bt Type 3 Class 6 and Hi-PoE , allowing you to manage power and data transmission through compatible Ethernet infrastructure.
10/100Mbps RJ45 port, support ONVIF Profile S/G/T , IPv4/IPv6, HTTPS, RTSP and numerous network protocols; compatible with Hik-Connect, iVMS-4200 and HikCentral Pro , NAS storage and simultaneous live viewing up to 20 channels.
Technical data sheet
| DS-2DE7A432IWG1-E | |
| Room | |
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR |
| Shutter Time | 1/3 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Zoom | 32x optical, 16x digital |
| Slow Shutter | Yes |
| Lens | |
| Focal Length | 5.5 to 176 mm |
| FOV | Horizontal field of view: 60.72° to 2.2° Vertical field of view: 35.92° to 1.3° Diagonal field of view: 68.42° to 2.6° |
| Focus | Auto, semi-auto, manual |
| Openings | Max. F1.6 |
| Zoom Speed | Approx. 2.7 s |
| Illuminator | |
| Supplement Light Type | IR |
| Supplement Light Range | IR Distance: up to 200 m |
| PTZ | |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| Video | |
| Main Stream | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704×576, 640×480, 352×288) 60Hz: 30fps (704×480, 640×480, 352×240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+, |
| Video Bit Rate |
32 Kbps to 16384 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Bit Rate Control |
CBR,VBR |
| Region of Interest (ROI) |
8 fixed regions for each stream |
| Audio | |
| Audio Compression | G.711,G.722.1,G.726,MP2L2,PCM,MP3,AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
| Audio Sampling Rate | MP2L2: 16kHz,AAC-LC: 16kHz,PCM: 8kHz, 16kHz,MP3: 8kHz, 16kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Simultaneous Live View |
Up to 20 channels |
| API | Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host |
Up to 32 users. |
| Security |
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
| Client |
iVMS-4200, HikCentral Pro, Hik-Connect |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Web Browser |
Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
| Image | |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| SNR | ≥ 52 dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask |
24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus |
Yes |
| Regional Exposure |
Yes |
| VR View |
360° Real Scene Stitched Panoramic Image |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Speaker | 1 built-in speaker with effective distance reaching max. 30 meters |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 2 inputs, 1 output |
| Reset Key | Yes |
| Built-in Microphone | 2 built-in Microphone: Arrayed dual-microphone up to 8 meters |
| Event | |
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan, tracking) |
| Deep Learning Function | |
| Face Capture | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Regional People Counting | Supports up to 8 detection regions, and independent arming schedule and linkage method Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection Supports searching real-time number of people |
| Linkage and Tracking | |
| Smart Tracking | Manual tracking, auto-tracking |
| General | |
| Power |
36 VDC (Max. 48 W, including max. 9 W for IR and max. 2 W for heater), |
| Dimension |
Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91") |
| Weight |
Approx. 5 kg (11.03 lb.) |
| Material |
ADC12, PC+10%GF |
| Operating Conditions |
-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Demist |
Yes |
| Approval | |
| EMC | CE-EMC (EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (IEC 62368-1:2014), CE-LVD (EN 62368-1:2014 + A11:2017) |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); |
| Protection |
IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6000 V lightning protection, surge protection and voltage transient protection |
