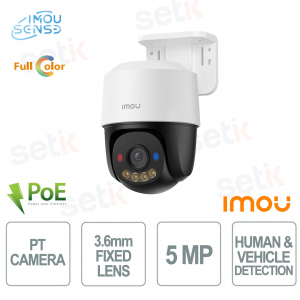

IPC-PS7FP-8X0-IMOU | PS7F 5MP is a PoE PT video surveillance camera designed for indoor and outdoor monitoring, featuring 5MP (2880×1620) resolution and a 3.6mm fixed lens for sharp, detailed images. 355° Pan and 0°~90° Tilt movement ensures wide coverage, while AI with person and vehicle detection and Smart Tracking improve subject identification. It integrates night vision up to 30 meters , IR illuminators and spotlight, red-blue warning lights and a 110dB siren for effective active deterrence. The built-in microphone and speaker enable two-way communication, while PoE or 12V DC power supply simplifies installation. It supports H.265/H.264 compression, ONVIF , Imou App and recording on MicroSD up to 512 GB, NVR or Cloud , offering a complete and versatile solution for video security. Imou
Technical Data Sheet
IPC-PS7FP-8X0-IMOU | IP PoE PT CAMERA 5MP CAMERA 3.6mm OPTIC
The Imou PS7F 5MP is a PoE PT video surveillance camera with 5MP resolution (2880×1620) and 3.6 mm fixed lens , ideal for monitoring homes and outdoor areas. The 355° Pan and 0°~90° Tilt rotation ensures wide coverage, while the AI Human & Vehicle Detection and Smart Tracking allow you to automatically identify and follow moving subjects. It integrates night vision up to 30 m , IR illuminators and spotlight, red-blue lights and a 110 dB siren for active deterrence. It supports two-way audio , H.265/H.264 compression, ONVIF protocol and PoE or 12V DC power supply. Recording can be done on MicroSD up to 512 GB, NVR or Cloud , with management via the Imou App on iOS and Android.
Main specifications:
- Resolution: 5MP 2880×1620
- Optics: fixed 3.6 mm
- PT: Pan 355° / Tilt 0°~90°
- AI: People and Vehicle Detection
- Tracking: Automatic Smart Tracking
- Night: up to 30m, IR + spotlight
- Deterrence: red-blue lights + 110 dB siren
- Audio: Built-in microphone and speaker
- Power supply: PoE / 12V DC
- Storage: MicroSD 512 GB, NVR, Cloud
- Network: Ethernet 100 Mbps, ONVIF
Main features
✅ Optics:
3.6mm fixed lens with 76° horizontal, 41° vertical and 91° diagonal field of view, designed to offer wide and detailed coverage of the monitored area.
✅ Resolution:
1/3" 5 Megapixel Progressive Scan CMOS sensor with maximum resolution of 2880 × 1620 , H.265/H.264 compression and frame rate of up to 25/30 fps for smooth and defined images.
✅ PT Camera :
Motorized Pan & Tilt system with horizontal rotation up to 355° and vertical tilt 0°~90° , ideal for extending video surveillance coverage and reducing unmonitored areas.
✅ AI Human & Vehicle Detection :
Artificial Intelligence technology capable of quickly identifying people and vehicles , making monitoring more targeted than simply detecting motion.
✅ Smart Tracking :
Intelligent automatic tracking function that allows the camera to follow moving objects , using the motorized PT system to keep them in the shooting area.
✅ Active Deterrence :
Active deterrent system with integrated spotlight and 110 dB security siren , designed to promptly discourage the presence of unwanted visitors.
✅ Red-Blue Warning Lights :
It integrates 2 red-blue warning lights that increase the deterrent effect of the camera and provide an immediately recognizable visual signal in case of need.
✅ Two-way Talk:
Thanks to the built-in microphone and speaker , it supports real-time two-way audio communication , allowing you to listen and speak with the people in front of the camera.
✅ Alarm Notification :
Sends instant alarm notifications to your smartphone when motion is detected, allowing you to quickly check events across the Imou ecosystem.
✅ AOR Mode :
Always-On-Record mode is designed to keep recording active while optimizing storage space usage.
✅ Smart Color Night Vision:
It supports 4 night vision modes , with a range of up to 30 meters , thanks to 4 built-in illuminators with IR and spotlight capabilities to obtain clear images even in low light conditions.
✅ PoE/12V DC:
It offers dual power supply mode via PoE or 12V DC 1A , allowing for flexible installation; with PoE , power and data transmission can be managed through the Ethernet connection.
✅ Network:
It has a 100 Mbps Ethernet port , ONVIF compatibility and management via Imou App for iOS and Android , making it easy to integrate the camera into compatible IP video surveillance systems.
Technical Data Sheet
| Model | IPC-PS7FP-8X0-IMOU |
| Room | |
| 1/3”5 Megapixel Progressive CMOS | |
| 5MP(2880*1620) | |
| Night Vision: 30m(98ft) Distance | |
| 3.6 mm Fixed Lens | |
| Field of View: 76°(H), 41°(V), 91°(D) | |
| 355°Pan & 0~90°Tilt | |
| 4 integrated illuminators (each combined spotlight and IR capabilities) | |
| 2 Red-Blue Warning Lights | |
| Video & Audio | |
| Video Compression: H.265/H.264 | |
| 25/30 fps Frame Rate | |
| 8x Digital Zoom | |
| Built-in Mic & Speaker | |
| Built-in Spotlight | |
| Notice Management | |
| Motion Detection | |
| Human Detection | |
| Vehicle Detection | |
| Network | |
| 1 x 100Mbps Ethernet Port | |
| Imou App: iOS, Android | |
| ONVIF | |
| Auxiliary Interface | |
| Micro SD Card Slot (up to 512 GB) | |
| Built-in Mic & Speaker | |
| Reset Button | |
| General | |
| PoE or DC 12V 1A Power Supply | |
| Power Consumption: <12W | |
| Material: Plastic | |
| Working Environment:-30°C~+50°C, Less Than 95%RH | |
| Dimensions: 196 × 115 × 159 mm (7.72 × 4.53 × 6.26 inch) | |
| Weight: 505g (1.11 lb) | |
| THERE IS | |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
