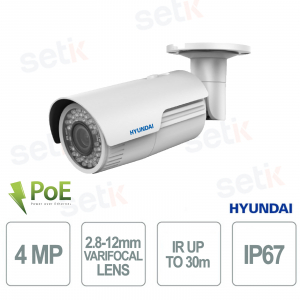

Hyundai HYU-311 4MP Outdoor Bullet IP Camera with 2.8-12mm Motorized Lens, IR 30m, PoE, IP67

Hyundai HYU-311 4MP Outdoor Bullet IP Camera with 2.8-12mm Motorized Lens, IR 30m, PoE, IP67

 
Optic calculation
nuevo

HYU-311 is a 4 Megapixel outdoor IP bullet camera , equipped with a 1/3" CMOS sensor with a resolution of up to 2688×1520 pixels for high-definition video surveillance. It integrates a 2.8-12 mm motorized lens with autofocus and a viewing angle of 108° to 31° , as well as infrared illumination up to 30 meters for night monitoring. Real WDR 120 dB, 3D-DNR and Day/Night technologies improve image quality in difficult lighting conditions. It supports H.264/H.264+/MJPEG compression , recording on MicroSD up to 128 GB and ONVIF compatibility. Thanks to IP67 protection , RJ45 Ethernet connectivity and PoE 802.3af or 12V DC power supply , it is ideal for professional IP video surveillance systems in outdoor environments. Hyundai

Technical Data Sheet

referencia : HYU-311

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-311 | 4-MEGAPIXEL IP BULLET CAMERA - 2.8-12mm VARIFOCAL LENS - 30m IR


Hyundai Security

The Hyundai HYU-311 is a 4 Megapixel outdoor IP bullet camera , equipped with a 1/3" CMOS sensor with a resolution of up to 2688×1520 pixels, ideal for professional video surveillance systems. It integrates a 2.8-12 mm motorized lens with autofocus and a viewing angle of 108° to 31° , ensuring flexible monitoring. Infrared illumination up to 30 meters ensures night vision, while WDR 120 dB, 3D-DNR and Day/Night technologies optimize image quality. It supports H.264/H.264+/MJPEG compression , recording on MicroSD up to 128 GB and ONVIF compatibility. Thanks to IP67 protection , RJ45 Ethernet connection and PoE 802.3af or 12V DC power supply , it is designed for security and surveillance of outdoor environments.

Main specifications:

  • Type: Outdoor IP Bullet Camera
  • Resolution: 4MP (2688×1520)
  • Sensor: 1/3" CMOS
  • Lens: Motorized 2.8-12mm with autofocus
  • Viewing angle: 108°–31°
  • Night vision: Infrared up to 30m
  • Video technologies: WDR 120 dB, 3D-DNR, Day/Night
  • Compression: H.264/H.264+/MJPEG
  • Memory: MicroSD up to 128 GB
  • Connectivity: Ethernet RJ45, ONVIF
  • Power supply: PoE 802.3af / 12V DC
  • Protection: IP67

Further details

✅ Optics:
 The Hyundai HYU-311 IP bullet camera integrates a 2.8-12mm motorized varifocal lens with autofocus , which allows you to adjust the zoom and focus to adapt the frame to different video surveillance needs.
✅ Resolution:
Equipped with a 1/3" 4 Megapixel CMOS sensor , it offers a maximum resolution of 2688×1520 pixels , also supporting 3MP, Full HD 1080p and HD 720p formats, to obtain detailed and sharp images.
✅ IP Technology :
The camera uses IP video surveillance technology with H.264, H.264+ and MJPEG video compression, integrating advanced features such as 120 dB real WDR, 3D-DNR noise reduction, Day/Night and infrared illumination up to 30 meters , to ensure optimized images even in low light conditions.
✅ Viewing angle:
Thanks to the 2.8-12mm motorized lens , it offers an adjustable viewing angle from 108° to 31° , allowing you to switch from a wide-angle frame for monitoring large areas to a narrower one for observing specific details.
✅ Connectivity:
It has a 10/100 Mbps RJ45 Ethernet interface for connection to the IP network, supports TCP/IP, HTTP, HTTPS, RTSP and ONVIF Profile S/G protocols for integration with compatible video surveillance systems and allows local recording on MicroSD cards up to 128 GB.
✅ PoE :
It supports IEEE 802.3af (Power over Ethernet) PoE technology, which allows power and data to be transmitted through a single Ethernet cable, simplifying installation and reducing wiring. It is also compatible with 12V DC power , with a consumption of 11W.
✅ Protection:
Designed for outdoor video surveillance , it features an IP67 rated casing, resistant to dust and water ingress, and guarantees operation in a temperature range from -30°C to +60°C , making it suitable even for difficult environmental conditions.

Technical data sheet

HYU-311
Specifications
1/3" 4 megapixel CMOS image sensor
Digital resolution: 4MP (2688x1520), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), etc.
Compression format H.264/H.264+/MJPEG
Main stream: 4MP, 3MP (20 ips), 1080P, 720P (25/30 ips)
Secondary stream: 640x360, (25/30 ips), 352x288 (25 ips), 352x240 (30 ips)
Day/night mode with removable mechanical filter
Infrared illumination: 30 meters
Minimum illumination: 0.01 lux F1.2 color / 0 lux IR On
2.8~12mm (108°~31°) motorized lens with autofocus
OSD menu, AGC, BLC, WDR real 120dB, 3D-DNR
1 fixed ROI zone
Video sensor and privacy mask
Adjust brightness, saturation, contrast, sharpness, mirror
MicroSD/SDHC/SDXC card support (up to 128 GB)
Network interface: RJ45 (10/100 Base-T)
Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Compatible with ONVIF (Profile S, G), PSIA, CGI, ISAPI
Compatible with DDNS DEMES
IP67 protection
Power supply: 12V DC /11W
Supports PoE 802.3af
Operating temperature -30°C ~ +60°C
Humidity: 95%
Dimensions: 91.6 x 105 x 294.5 mm
Weight: 1.2 kg
3AXIS support
Reset button
Power supply sold separately
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
