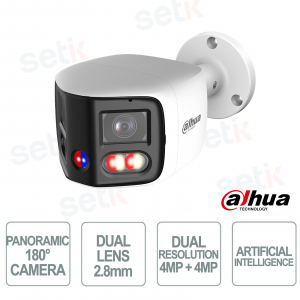

IPC-PFW3859S-A180-AS-PV White 8MP 180° WizSense TiOC Bullet IP Camera with AI, Active Deterrence and PoE+ - Dahua

IPC-PFW3859S-A180-AS-PV White 8MP 180° WizSense TiOC Bullet IP Camera with AI, Active Deterrence and PoE+ - Dahua

 
Optic calculation
BEST SELLER -57% nuevo

The IPC-PFW3859S-A180-AS-PV white is an 8MP panoramic Bullet IP camera with TiOC Duo Splicing WizSense technology, equipped with a dual 4MP CMOS sensor, 2.8mm fixed lens and 180° horizontal viewing angle for high definition video surveillance. It offers 4320 × 1944 pixel resolution at 20 fps, IR night vision and warm light up to 30 meters, 120 dB WDR and H.265 compression with Super AI Coding . It integrates artificial intelligence with people and vehicle recognition, SMD 4.0 , perimeter protection and facial detection. It has active deterrence with siren and red and blue lights, dual microphone, speaker and two-way audio . Supports microSD up to 512 GB, PoE+ or 12V DC power supply and IP67 protection , ideal for professional video surveillance systems in indoor and outdoor environments. Dahua

Technical Data Sheet

referencia : IPC-PFW3859S-A180-AS-PV

brand : Dahua

EAN: 6937552442030

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

IPC-PFW3859S-A180-AS-PV | 180° PANORAMIC CAMERA 4MP + 4MP - DUAL 2.8mm FIXED LENS - OUTDOOR POE WITH ARTIFICIAL INTELLIGENCE - WHITE


Dahua

The white Dahua IPC-PFW3859S-A180-AS-PV is an 8MP panoramic Bullet IP camera with TiOC Duo Splicing WizSense technology, equipped with a dual 4MP CMOS sensor, 2.8mm fixed lens and 180° viewing angle for professional high-definition video surveillance. It offers 4320 × 1944 pixel resolution at 20 fps, IR night vision and warm light up to 30 meters, 120 dB WDR and H.265 compression with Super AI Coding. Thanks to WizSense artificial intelligence , it integrates SMD 4.0, people and vehicle recognition, perimeter protection and facial detection. Active deterrence with siren and red and blue lights , together with two-way audio , guarantees advanced security. Supports microSD up to 512 GB, PoE+, 12V DC and IP67 protection , ideal for indoor and outdoor installations.

Main specifications:

  • Type: White Panoramic Bullet IP Camera
  • Resolution: 8MP (4320 × 1944)
  • Sensor: Dual 1/2.7" 4MP CMOS
  • Optics: Fixed 2.8 mm
  • Viewing angle: 180° horizontal
  • Night vision: IR and warm light up to 30m
  • AI Technology: WizSense, SMD 4.0, AcuPick
  • Active deterrence: Siren and red/blue lights
  • Audio: Two-way, dual microphone
  • Compression: H.265, Super AI Coding
  • Memory: MicroSD up to 512 GB
  • Power supply: PoE+ / 12V DC
  • Protection: IP67

Further details

✅ Double optics :
The Dahua IPC-PFW3859S-A180-AS-PV IP camera integrates a 2.8mm fixed dual lens system , with two 1/2.7" CMOS sensors , designed to acquire high definition images and combine them via TiOC Duo Splicing technology, ensuring a continuous panoramic view and wide coverage of the monitored area.
✅ Dual resolution:
Thanks to the two 4MP sensors , the camera generates a combined panoramic image with a maximum resolution of 8MP (4320 × 1944 pixels) at 20 fps , ensuring high video quality, sharp details and optimised recordings through H.265 compression and Super AI Coding.
✅ Artificial Intelligence :
Dahua WizSense AI technology, based on Deep Learning algorithms, integrates advanced features such as SMD 4.0, AcuPick, face detection and intelligent people and vehicle classification , improving detection accuracy and reducing false alarms in professional video surveillance systems.
✅ Perimeter Protection :
The IVS intelligent perimeter protection function uses Artificial Intelligence algorithms to accurately identify people and vehicles , detecting events such as intrusion, crossing virtual lines (Tripwire), permanence and prolonged parking , with a significant reduction in false alarms and increased security of the monitored areas.

✅ 180° Panorama:
The Duo Splicing system combines the images from the two lenses to offer a 180° horizontal and 72° vertical viewing angle , enabling high-resolution panoramic video surveillance and extended monitoring of entrances, parking lots, perimeters and large spaces with a single IP camera.
✅ Xinghan Large-Scale AI Models-Vision:
Xinghan AI technology integrates advanced AI models , Edge AI algorithms and NPU computing power, leveraging an optimized Transformer architecture to enhance intelligent image processing, increase the operational capability of algorithms and make subject detection in security applications more accurate.
✅ Audio :
The camera features dual microphones and a built-in 2W speaker , supporting two-way audio communication for real-time listening and talking. It also features RCA audio input and output , PCM, G.711, and G.726 compression, and a speaker with a maximum sound pressure level of 110 dB at 10 cm.
✅ Siren and Light Active Deterrence:
TiOC technology with active audio and light deterrence combines a built-in siren and red and blue flashing lights to deter intrusions and unauthorized access. It supports 11 predefined audible alarms , customizable voice messages, and adjustable duration and frequency of light signals, which can be automatically activated in the event of perimeter events.
✅ PoE:
It supports IEEE 802.3at PoE+ power supply , allowing data and power to be transmitted over a single Ethernet cable , simplifying installation and reducing wiring. It is also compatible with 12V DC ±30% power supply , with a maximum consumption of 16.1W via PoE+.
✅ Network Camera:
The Dahua WizSense 8MP Bullet IP Network Camera features a 10/100/1000 Mbps Gigabit RJ45 Ethernet port , H.265/H.264 compression with Super AI Coding , ONVIF Profile S/G/T/M compatibility, and microSD storage up to 512 GB, NAS, or FTP . It supports remote management via DMSS, Smart PSS Lite, and DSS , with IP67 protection and a metal structure for professional indoor and outdoor installations.

Technical data sheet

Model IPC-PFW3859S-A180-AS-PV
Room
Image Sensor 1/2.7" CMOS
Max. Resolution 4320 (H) × 1944 (V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.003 [email protected] (Color, 30 IRE)
0.0003 [email protected] (B/W, 30 IRE)
0 lux (illuminator on)
S/N Ratio >56 dB
Illumination Distance 2.8 mm: Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto;Manual
Illuminator Number 4 (Multi-core (IR + warm) light)
Angle Adjustment Pan: 0° to 360°
Tilt: -20° to 90°
Rotation: 0° to 360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8mm
Max. Openings F1.4
Field of View H: 180°; V: 72°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm.
SMD SMD 4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animals and motor vehicles, and search through live and recorded videos to quickly locate targets.
Face Detection (Full Image) Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization duration setting.
Smart Search Works together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)
AI Coding Super AI Coding (H.265); Super AI Coding (H.264)
*Includes smart codec technology, Smart H.264+ and Smart H.265+.
Video Frame Rate

Main stream: 4320 × 1944@(1–20 fps)
Sub stream: 1200 × 536@(1–20 fps)
Third stream: 1920 × 860@(1–20 fps)
*The values above are the max frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability 3 Streams
Resolution

8M (4320 × 1944/4096 × 1860); 1920×860; 1200×536; 960×432; D1 (704 × 576/704 × 480)
Bit Rate Control VBR;CBR;ABR
Video Bit Rate H.264: 6 kbps–16384 kbps;
H.265: 6 kbps–16384 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (ROI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Privacy Masking 8 areas
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in dual speaker; Max power consumption: 2 W; max sound level at 10 cm: 110 dB
* Test results from laboratory
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; loitering detection; stay detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network Port RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration
Interoperability ONVIF (Profile S & Profile G & Profile T & Profile M); CGI
User/Host 20 users (total bandwidth: 64M)
Storage FTP; SFTP; Micro SD card (support max. 512GB); NAS
Browser IE; Chrome; Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Mobile Client iOS;Android
Security Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
Function
Light Warning Light Warning: Red and blue light warning
Flash/Solid on duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Sound Warning:
Offers 11 sound alarms and supports importing custom sound alarms
Sound: 0-100
Play times can be set from 1 to 10
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input

1 channel (RCA port)
Audio Output

1 channel (RCA port)
Alarm Input

1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection
Alarm Output

1 channel out: dry contact, max load 1,000 mA 30 VDC/500 mA 50 VAC
Power
Power Supply

12 VDC (±30%); PoE+ (802.3at)
Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 4.9W (12VDC);6.8W (PoE);
Max.: 13.3W (12VDC); 16.1 W (PoE) (H.265 + WDR + warm light + sound and light active deterrence + intelligence on)

Environment
Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity

≤95% (RH), non-condensing
Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity

≤95% (RH), non-condensing
Protection

IP67
Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure
Casing Material

Metal
Product Dimensions

183.1 mm × 99.0 mm × 78.0 mm (7.21" × 3.90" × 3.07") (L × W × H)
Net Weight

0.695 kg (1.53 lb)
Gross Weight

0.870 kg (1.92 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
