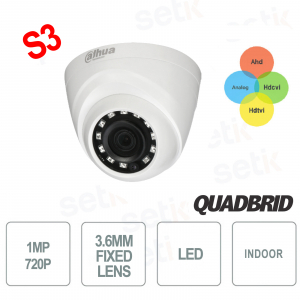

HAC-HDW1000R-S3 | 4IN1 HDCVI / HDTVI / AHD / ANALOG HD 720P 1MP DOME CAMERA - INDOOR

The Dahua HAC-HDW1000R-S3 is a 1MP HDCVI dome camera with 720p HD resolution, ideal for residential and commercial installations. Thanks to its compact design and compatibility with existing analog systems, it offers an excellent solution for those seeking video quality and ease of use. It supports long-distance transmission up to 1200m, Smart IR up to 20m, and switchable HD/SD video output. Perfect for indoor/outdoor environments with extreme temperatures from -40°C to +60°C.
Main specifications:
- HD resolution 720p (1MP) @ 25/30 fps
- 3.6mm fixed lens
- Smart IR illumination up to 20 meters
- Compatible with HDCVI/CVBS and other analog HD formats
- Wide viewing angle: up to 60°
- 12V DC power supply with low consumption (max 2.8W)
- Multilingual OSD menu with DWDR, AGC, BLC, 2DNR functions
- Easy installation with UTC support and optional accessories
Further details

Technical data sheet
Model | HAC-HDW1000R-S3 |
Room | |
Image Sensor | 1/4" CMOS |
Effective Pixel | 1280(H)×720(V), 1MP |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
Min. Illumination | 0.05Lux/F2.0, 30IRE, 0Lux IR on |
S/N Ratio | More than 65dB |
IR Distance | Up to 20m (66 feet) |
IR On/Off control | Auto / Manual |
IR LEDs | 12 |
Lens | |
Lens Type | Fixed lens / Fixed iris |
Mount Type | Board-in |
Focal Length | 3.6mm |
Max Openings | F 2.0 |
Angle Of View | H: 60° (83.4°) |
Focus Control | N/A |
Close focus distance | 600mm (500mm) 23.6'' (19.69'') |
PTZ | |
PAN/Tilt Range | Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
Video | |
Resolution |
720P (1280×720) |
Frame Rate | 25/30fps@720P |
Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
Day/Night | Auto (ICR) / Manual |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / DWDR |
WDR | DWDR |
Gain control | AGC |
Noise reduction | 2D |
White Balance | Auto / Manual |
Smart IR | Auto / Manual |
Certifications | |
Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
Interface | |
Video Interface | N/A |
Electrical | |
Power Supply | 12V DC ±25% |
Power Consumption | Max 2.8W (12V DC, IR on) |
Environmental | |
Operating Consumption | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F) |
Storage conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
Ingress Protection & Vandal Resistance | N/A |
Construction | |
Casing | Plastic |
Dimensions | Φ85.4mm×69.1mm(Φ3.36"×2.72") |
Net Weight | 0.11kg (0.24lb) |
Gross Weight | 0.17kg (0.37lb) |
