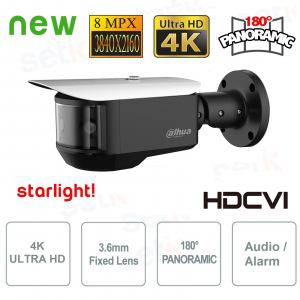

HAC-PFW3601-A180 | 4K ULTRA HD MULTI-SENSOR 180° PANORAMIC HDCVI CAMERA


Dahua

The Dahua HAC-PFW3601-A180 is a 4K HDCVI panoramic camera with three 2MP sensors and a 3.6mm fixed lens that guarantees a complete 180° view without blind spots. Thanks to multi-channel technology, it provides 1 panoramic video and 3 2MP streams simultaneously, with IR night vision up to 20 m, IP67/IK10 protection and transmission over coaxial cable up to 700 m. Ideal for public areas, shopping centres, ports and squares, it offers advanced performance in harsh environments .

Main specifications:

- 3 x 2MP sensors with 180° panoramic view

- 3.6mm fixed lens, IR up to 20 meters

- 4K/4MP resolution, 120dB WDR and advanced 3DNR

- 4 signals (video, audio, data, power) on a single cable

- IP67 and IK10 protection, ideal for outdoor installations

- Transmission up to 700 m on RG6 coaxial cable

Further details

Resolution:
The camera is equipped with three 2MP CMOS sensors, which together generate a panoramic image at 4K resolution (3840×2160) and three independent video streams of 2MP each . It supports frame rates of up to 15 fps in 4K and 25 fps in 4MP , ensuring smooth and clear images ideal for high-definition monitoring even in complex environments.
Optics :
It features 3.6mm fixed lenses with F1.8 aperture and a 180° horizontal viewing angle , designed for extended coverage without the need for multiple cameras. Intelligent IR illumination allows for clear vision up to 20m even in total darkness, with Smart IR technology that prevents overexposure from subjects that are too close.
180° panoramic view :
Thanks to the integration of three 2MP sensors , the camera generates a continuous 180° panoramic view, eliminating blind spots and offering complete coverage in large spaces such as airports, squares, parks and shopping malls. The “3-in-1” design combines the advantages of a big picture view with precise detail.
4 signals on a coaxial cable :
HDCVI technology allows the simultaneous transmission of video, audio , data, and power through a single coaxial cable . This significantly reduces installation complexity and wiring costs. Additionally, the bidirectional data channel allows interaction with the DVR for alarms or remote control.
Long distance transmission :
It supports real-time and lossless transmission up to 700m (4K/4MP resolution) via RG6 cable and up to 300m via UTP cable , ideal for distributed installations over large areas. Signal quality is maintained stable even over long distances, according to tests carried out in Dahua laboratories .
Wide Dynamic Range (WDR) :
Equipped with 120dB True WDR technology, the camera can handle high-contrast scenes, simultaneously enhancing very bright and shadowed areas. The result is a balanced and visible image even in difficult lighting conditions such as backlit entrances or shop windows exposed to direct light .
Protection :
Thanks to the rugged aluminum design, the camera offers IP67 certified protection against dust and water , and IK10 protection against vandalism . It operates over a wide temperature range from -30°C to +60°C , with a voltage tolerance of ±25% and surge protection up to 4KV , making it perfect for outdoor, industrial or public environments .
HAC-PFW3601-A180 CCTV Camera Dimension Diagram

Technical data sheet

Model HAC-PFW3601-A180
Room
Image Sensor Three 1/2.8" 2MP STARVIS TM CMOS
Effective Pixels 4K(3840x832)/4M(2560x554)
Scanning System Progressive
Electronic Shutter Speed

PAL:1/4s~1/100,000s

NTSC:1/3s~1/100,000s

Min. Illumination 0.005Lux/F1.8(Color), 30IRE,0Lux/F1.8(IR on)
S/N Ratio More than 65dB
IR Distance 20m
IR On/Off Control Auto (ICR)/Color/B/W
IR LEDs 6
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm
Max openings F1.8
Angle of view H: 180°
Focus Control N/A
Video
Resolution

4K (3840X2160)/4MP(2560×1440)

Frame Rate

PAL:3840×2160@12.5fps,2560x1440@25fps;

NTSC:3840×2160@15fps,2560x1440@25fps;

Video Output

1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output

Day/Night Auto (Electronic) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Alarm I/O

2/1

Audio interface

1-channel audio in(JACK)

Test interface

1-channel 2-pin CVBS video output

Upgrade Interface

1-channel 4-pin USB input

Code switcher

1 physical code switch(switch the preset video source)

Menu set

1 Five-direction button

Electrical
Power Supply

1 2V DC ±25%

Power Consumption

22W

Environmental
Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Vandal Resistance

IK10

Construction
Casing

Aluminum

Dimensions

286mm x 119mmx 106mm(11.26"×4.68"×4.19")

Net Weight

2.05kg (4.5lb)

Gross Weight

2.43kg (5.36lb)
