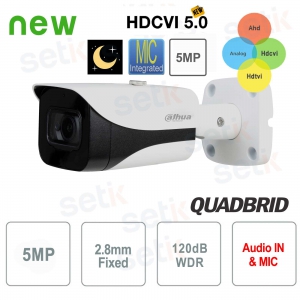

HAC-HFW2501E-A-S2 | 4-IN-1 5MP 2.8MM CAMERA - AUDIO & MICROPHONE - WDR - STARLIGHT


Dahua

The Dahua HAC-HFW2501E-A-S2 is a 5MP bullet camera with a 2.8mm F1.6 fixed lens, ideal for outdoor environments thanks to its IP67 protection and aluminum body. Equipped with Starlight technology and true 120dB WDR, it ensures clear images even in low-light or high-contrast conditions. IR night vision reaches up to 40 meters, while two-way audio and video, audio, data, and power transmission over a single coaxial cable make installation simple and efficient. Compatible with multiple video formats (HDCVI, CVBS, TVI, AHD), it is perfect for professional installations and upgrades from existing analog systems .

Main specifications:

- 5MP resolution (2880×1620) at 25fps

- Fixed 2.8mm F1.6 lens with 106° H angle

- IR night vision up to 40 meters

- Starlight technology for color images in low light

- 120dB Real WDR and 3D NR noise reduction

- Transmission of 4 signals on 1 coaxial cable: video, audio, data, power

- Output switchable between HDCVI, TVI, AHD and CVBS

- IP67 protection and durable metal body

Further details

Resolution:
The camera features a 1/2.8" CMOS sensor with 5MP (2592×1944) resolution and supports frame rates of 20fps at 5MP , delivering ultra-high definition images with great detail precision .
Optics :
It has a 2.8mm fixed lens (3.6mm and 6mm are also optional), with F1.6 aperture and a horizontal viewing angle of up to 98° , ideal for monitoring large areas with a single camera.
4 signals on 1 coaxial cable :
HDCVI technology allows for the simultaneous transmission of video, audio, data, and power over a single coaxial cable. This reduces installation costs and also allows for remote monitoring and alarm management, improving system flexibility.
Long distance transmission :
Supports stable 5MP video transmission up to 700 meters over coaxial cable and 300 meters over UTP , without signal degradation. Ideal for large areas or distant installation points .
Starlight :
Thanks to the high-performance sensor, Starlight mode allows color vision even in low light conditions (up to 0.005Lux), improving the quality of night images and the precision of details in dark environments.
Wide Dynamic Range (WDR) :
True 120dB WDR perfectly balances overexposed and underexposed areas in the same scene, allowing for clear viewing even under very bright or backlit conditions.
Protection :
The camera has an IP67 protection rating against dust and water, is made with an aluminum body and is designed to operate in a temperature range from -40°C to +60°C , with a power tolerance of ±30% and lightning protection up to 4KV.
Detailed diagram with dimensions of the Dahua HAC-HFW2501E-A camera

Technical data sheet

Model

HAC-HFW2501E-A S2

Room
Image Sensor 1/2.8" CMOS
Effective Pixels 2592(H)×1944(V), 5MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Min. Illumination

0.005Lux/F1.6, 30IRE, 0Lux IR on

S/N Ratio More than 65dB
IR Distance Up to 40m (130 feet)
IR On/Off Control Auto/Manual
IR LEDs 2
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm
Max. Openings F1.6
Field of view 132° × 111° × 58
Focus Control N/A
Close focus distance

800mm

31.5"

PTZ
Pan/Tilt/Rotation Range

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution

5MP (2592×1944)

Frame rate 20fps@5MP , 25/30fps@4MP, 25/30fps@1080P
Video Output

1-channel BNC high definition video output / CVBS video output (DIP switch)

Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain control AGC
Noise reduction 2D/3D
White balance Auto / Manual
Smart IR Auto / Manual
Certification
Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface 1ch Built-in Mic
Electrical
Power Supply 12V DC ±30%
Power consumption Max. 7W (12V DC, IR on)
Environmental
Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Strorage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection IP67
Construction
Casing Aluminum
Dimensions 179.9mm×70mm×70mm (7.08"×2.76"×2.76")
Net Weight 0.42kg (0.93lb)
Gross Weight

0.53kg (1.17lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
