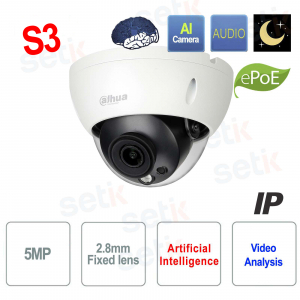

IPC-HDBW5541R-ASE-S3 | 5MP ONVIF® POE OUTDOOR IP CAMERA WITH ARTIFICIAL INTELLIGENCE

The Dahua IPC-HDBW5541R-ASE-S3 5MP IP surveillance camera with a 2.8mm fixed lens integrates advanced artificial intelligence for facial detection, people counting, and real-time video analytics. Thanks to deep learning algorithms and IR illumination up to 50 meters, it guarantees clear images day and night. Ideal for professional settings, it features IP67 and IK10 protection, H.265 AI compression, and intelligent features for next-generation security.
Main specifications:
- 5MP resolution (2960×1668) @30fps
- 2.8mm fixed optics (123° angle)
- IR LED with night vision up to 50 meters
- AI: facial recognition, IVS, people counting, video metadata
- IP67 (waterproof) and IK10 (vandal-proof) protection
- AI H.265 / H.264 video compression + 4 video streams
- Support PoE / ePoE and MicroSD up to 1TB
Further details
✅ AcuPick – Intelligent Target Search:
- Vehicles (type, color, logo, seatbelt use, cell phone use, smoking)
- Non-motor vehicles (type, color, passengers, hats)
- Human bodies (gender, clothing, accessories such as bags, umbrellas)
- Faces (age, gender, expressions, masks, glasses, beards)

Technical data sheet
Model | IPC-HDBW5541R-ASE-S3 |
Room | |
Image Sensor | 1/2.7” 5Megapixel progressive scan CMOS |
Effective Pixel | 2592 (H) × 1944 (V) |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s |
Min. Illumination |
0.005 Lux@F1.6 |
S/N Ratio | Less than 50dB |
IR Distance | Distance up to 50 m (164 ft) |
IR On/Off Control | Auto/Manual |
IR LEDs | 1 |
Lens | |
Lens Type | Fixed |
Mount Type | Board-in |
Focal Length | 2.8 mm |
Max. Openings | F1.6 |
Angle of View | H: 102°, V: 71° |
Optical Zoom | N/A |
Close Focus Distance | 0.9 m (2.95 ft) |
Artificial Intelligence | |
Face Capture | Supports face image capture |
People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
Perimeter Protection | Tripwire, Intrusion (Human & Vehicle classification) |
General Intelligence | |
Event Trigger | Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
General Intelligence | Object Abandoned/Missing |
Video | |
Compression | H.265+, H.265, H.264+, H.264, H.264B, H.264H, MJPEG (sub stream) |
Streaming Capability | 3 Streams |
Resolution |
2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
Frame Rate |
Main Stream: 2592 × 1944 (1 fps–20 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) Sub Stream: D1 (1 fps–20/30 fps) D1 (1 fps–50 fps) Third Stream: 1080P (1fps–17fps) |
Bit Rate Control | CBR/VBR |
Bit Rate |
H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC Mode | BLC/HLC/WDR (120 dB) |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off / On (4 Zone, Rectangle) |
Region of interest | Off / On (4 Zones) |
Electronic Image | N/A |
Smart IR | Support |
Defog | Support |
Digital Zoom | N/A |
Flip | 0°/90°/180°/270° |
Mirror | Off / On |
Privacy Masking | Off / On (4 Area, Rectangle) |
Audio | |
Compression | G.711a, G.711Mu, G.726, AAC, G.723 |
Network | |
Ethernet | RJ-45 (10/100 Base-T) |
Protocol |
HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x |
Compatibility | ONVIF® (Profile S/Profile G), CGI, Milstone, Genetec, P2P |
Streaming Method | Unicast / Multicast |
Max. User Access | 20 Users |
Edge Storage |
NAS FTP Micro SD card 256 GB |
Web Viewer | IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12) |
Management Software | Smart PSS, DSS, P2P |
Smartphone | iOS, Android |
Interface | |
Video Interface | 1 Port (For adjustment only) |
Audio Interface | 1/1 channel In/Out |
RS485 | N/A |
Alarm |
1 channel In: 5mA 5V DC |
General | |
Power Supply | DC 12V (±30%), PoE (802.3af) (Class 0) |
Power Consumption |
<6W |
Operating Conditions | -30° C to +60° C (-22° F to +140° F)/10%RH–95%RH |
Storage Conditions | -30° C to +60° C (-22° F to +140° F) |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Casing | Metal |
Dimensions | Φ122.0 mm × 88.9 mm (4.80” × 3.50”) |
Net Weight | 0.46 kg (1.01 lb) |
Gross Weight | 0.62 kg (1.37 lb) |
