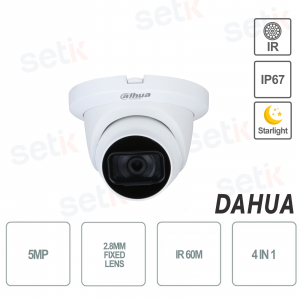

Dahua 5MP Starlight Camera with 2.8mm Lens, Audio, and 60m IR

Dahua 5MP Starlight Camera with 2.8mm Lens, Audio, and 60m IR
BEST PRICE -57%

HAC-HDW2501TMQ-A-S2 - 5MP guarantees high-definition images with a 2.8mm fixed lens and Starlight technology for clear vision even in low-light conditions. It is equipped with Smart IR infrared up to 60 meters , a built-in microphone for audio recording and supports long-distance video transmission via coaxial cable without signal loss. 120dB WDR technology ensures clear images even in backlit situations and the IP67 protection makes it ideal for outdoor installations in all weather conditions. Dahua

Technical Data Sheet

referencia : HAC-HDW2501TMQ-A-S2

brand : Dahua

EAN: 6939554944918

Disponibilità: 10

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HAC-HDW2501TMQ-A-S2 | OUTDOOR VIDEO SURVEILLANCE CAMERA 5 MP 2.8MM - 4IN1 CVI/CVBS/AHD/TVI STARLIGHT


Dahua

The Dahua HAC-HDW2501TMQ-A-S2 camera offers 5MP high-definition images with a 2.8mm fixed lens and Starlight technology for clear vision even in low-light conditions. Thanks to HDCVI technology, it allows video, audio, and data transmission over a single coaxial cable, ensuring easy installation and long transmission distances of up to 700 meters. Equipped with Smart IR up to 60 meters, a built-in microphone, and IP67 protection, it is perfect for indoor and outdoor video surveillance.

Main specifications:

- 5MP CMOS sensor and 2.8mm fixed lens

- Starlight and IR technology up to 60 meters

- WDR 120dB and 3DNR noise reduction

- Integrated audio on coaxial cable

- IP67 protection for outdoor use

Further details

Resolution:
The Dahua HAC-HDW2501TMQ-A-S2 camera offers a maximum resolution of 5MP (2880×1620 pixels), ensuring clear and detailed images both day and night, ideal for high-definition video surveillance systems.
Optics :
It features a 2.8mm fixed lens with a wide 132° diagonal field of view, perfect for monitoring open spaces and commercial environments without blind spots.
4 Signals over 1 Coaxial Cable :
Thanks to HDCVI technology, it simultaneously transmits video, audio, data and power over a single coaxial cable, simplifying installation and reducing costs and installation times.

Long Distance Transmission:
It guarantees real-time transmission without quality loss up to 700 meters via coaxial cable and up to 300 meters via UTP, ideal for covering large areas.
Starlight:
The advanced CMOS sensor with Starlight technology enables clear vision and true colors even in low light conditions, capturing details at night.
Broadcast-quality Audio:
It integrates a high-quality microphone that transmits audio clearly on the same cable as the video, reducing noise and improving monitoring effectiveness.
Wide Dynamic Range (WDR):
With 120dB true WDR, the camera automatically balances light and dark areas, ensuring readable images even in high-contrast lighting situations.

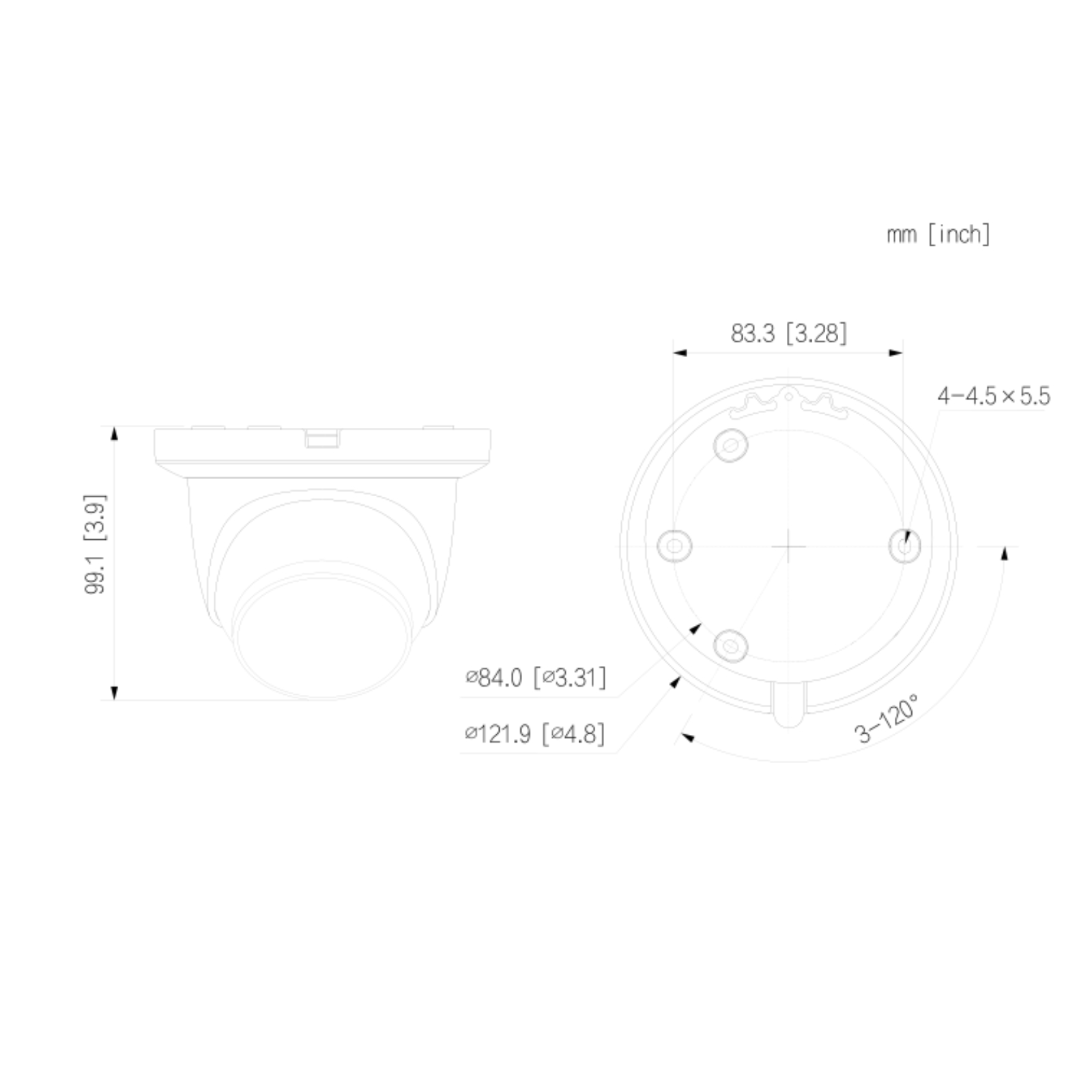

HAC-HDW2501TMQ-A-S2 dimensions

Technical data sheet

Model HAC-HDW2501TMQ-A-S2
Room
Image Sensor
1/2.7 inch CMOS
Max Resolution 2880 (H) × 1620 (V)
Effective Pixels
5MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s

Min. Illumination 0.001 Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio

More than 65dB

IR Distance 60 m (196.9 ft)
IR On/Off Control Auto / Manual
IR LEDs 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed lens / Fixed iris
Mount Type M12
Focal Length

2.8mm

Field of view 2.8 mm: 109° × 92° × 48°
(diagonal × horizontal × vertical)
Iris type Fixed iris
Close Focus Distance

2.8 mm: 1.6 m (5.2 ft)

Video
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920×1080); 960H (960 × 576/960 × 480)
Frame Rate CVI:
PAL: 5M@25fps; 4M@25fps; 1080P@25fps
NTSC: 5M@25fps; 4M@30fps; 1080P@30fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Day/Night Auto switch by ICR
BLC Mode BLC/HLC/WDR/HLC-Pro
WDR 120dB
Gain Control Auto - Manual
Noise Reduction 2D NR/3D NR
White Balance Auto / Manual
Smart IR Yes
Mirror Off/On
Privacy mask Off/On (8 areas, rectangle)
Certifications
Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Interface One channel built-in mic
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Power
Power Supply

12V DC ±30%

Power Consumption Max 5.9W (12V DC, IR on)
Environmental
Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67

Construction
Casing Metal dome+metal cover+plastic decorative ring
Dimensions φ121.9mm × 99.1mm (φ4.8" × 3.9")
Net Weight 0.43 kg (0.95 lb)
Gross Weight 0.6 kg (1.32 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
