HAC-HDW2509T-A-LED The HDCVI dome camera offers 24/7 color surveillance thanks to the Full-color technology and the 5MP CMOS sensor. The 2.8 mm fixed lens ensures a wide field of view, while the warm light LEDs ensure night vision up to 40 meters . Equipped with 120 dB WDR and 3DNR noise reduction, it provides clear images even in difficult lighting conditions. The integrated microphone allows audio recording, and the 4in1 compatibility (CVI / TVI / AHD / CVBS) facilitates its integration into different systems. The IP67 protection and the metal body make it ideal for outdoor installations. Dahua
referencia : HAC-HDW2509T-A-LED
brand : Dahua
EAN: 6923172528810
Disponibilità: 21
 BUSQUE INSTALADOR
 BUSQUE INSTALADOR
											DAHUA: DEBAJO DEL COSTE×
 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

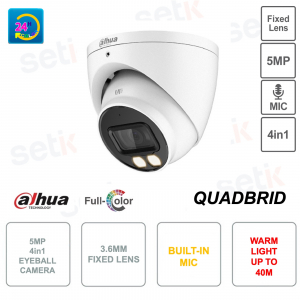

HAC-HDW2509T-A-LED | 4IN1 FIXED LENS 2.8mm FULLCOLOR STARLIGHT CAMERA WITH MICROPHONE

The Dahua HAC-HDW2509T-A-LED camera is a professional solution for outdoor video surveillance. With 5MP full-color technology, it offers clear, color images even at night thanks to the integrated LED lighting. The built-in microphone allows audio recording, while the IP67 protection guarantees maximum resistance to atmospheric agents. Perfect for homes, businesses and public spaces, it ensures continuous and detailed monitoring.
Main specifications:
- 5MP Full-Color Resolution: High video quality with color images 24/7
- 2.8mm fixed optics: wide angle view ideal for monitoring large areas
- Built-in LED lighting: Clear night vision without infrared
- Built-in microphone: supports ambient audio for added security
- IP67 protection: resistant to dust, rain and adverse weather conditions
Further details
✅ Starlight Technology:
✅ Full-color technology:
✅ CVI/CVBS/AHD/TVI switchable:

Technical data sheet
| Model | HAC-HDW2509T-A-LED |
| Room | |
| Image Sensor | 5MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s |
| Y/N Ratio | > 65 dB |
| Min. Illumination | 0.0002 Lux/F1.0, 0 Lux warm light on |
| Illumination Distance | 40 m (131.2 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Openings | F1.0 |
| Field of View | H: 111°; V: 57°; D: 131° |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.5 m (4.9 ft) |
| Video | |
| Video Frame Rate | CVI: |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120dB |
| White Balance | Auto; White balance area |
| Gain Control | Car; manual |
| Noise Reduction | 3D NR |
| Smart Lighting | Yes |
| Defog | Electronic defog |
| Digital Zoom | 4x |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
| Audio Input | One channel built-in mic |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 6.4 W (12 VDC, warm light on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation) |
| Ingress Protection | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |

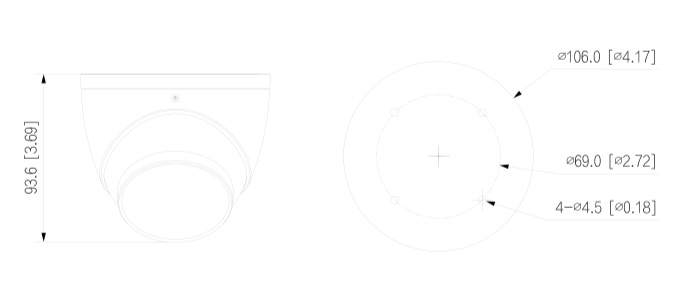

| Dimensions | φ106.0 mm × 93.6 mm (φ4.17" × 3.69") |
| Net Weight | 0.49 kg (1.1 lb) |
| Gross Weight | 0.64 kg (1.4 lb) |
