IPC-HDBW2841E-S - is an 8MP dome IP camera designed for advanced video surveillance applications in indoor and outdoor environments. Equipped with a high-performance CMOS sensor, it supports 4K Ultra HD images, ensuring sharp details in any condition. Thanks to the WizSense technology with integrated AI, it offers intelligent functions such as people and vehicle detection, while the IR illumination guarantees night vision up to 40 meters . The IP67 and IK10 protection ensures resistance to atmospheric agents and vandalism. With PoE support, Smart H.265+ compression and ONVIF compatibility, it is the ideal solution for professional security.
referencia : IPC-HDBW2841E-S
brand : Dahua
EAN: 6923172582249
Disponibilità: 41

DAHUA: DEBAJO DEL COSTE×
DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

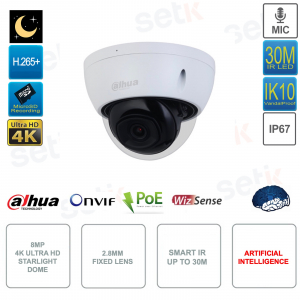

IPC-HDBW2841E-S | 2.8mm 8MP 4K ULTRA HD POE IP CAMERA WITH MICROPHONE

The Dahua IPC-HDBW2841E-S is an 8MP dome IP camera from the WizSense series, designed to offer advanced surveillance with intelligent features. Thanks to the 1/2.7" CMOS sensor, it provides high definition images up to 3840×2160 pixels, ensuring clear details even in low light conditions. The integrated IR technology allows effective night vision up to 30 meters. With a 2.8mm fixed lens, it offers a wide viewing angle of 106°, ideal for monitoring large areas. The IP67 and IK10 protection ensures resistance to atmospheric agents and vandalism, making it suitable for both indoor and outdoor installations.
Main specifications:
- Ultra HD 8MP resolution: detailed images up to 3840×2160 pixels
- 2.8mm fixed optics: 106° wide viewing angle
- IR night vision up to 30m: effective monitoring even in the dark
- WizSense Technology: Intelligent detection of people and vehicles
- IP67 and IK10 protection: resistance to dust, water and vandalism
- Smart H.265+ compression: reduce bandwidth consumption and storage space
- Built-in microphone: for ambient audio recording
- MicroSD slot up to 256 GB: local storage of recordings
- PoE or 12V DC power supply: flexible and simplified installation
- ONVIF compatibility: integration with existing video surveillance systems
Further details
✅ Built-in Microphone:
✅ Alarm event management:
✅ IP67 and IK10 protection:

Technical data sheet
IPC-HDBW2841E-S | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
3840 (H) × 2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
256 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.009 lux@F 2.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Y/N Ratio |
>56dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
30 m (98.43 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto; Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
3 (IR LEDs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–355° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Mount |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Openings |
F2.0 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
H: 106°; V: 56°; D: 125° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12VDC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 2.6W (12VDC); 3.3W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 5.4 W (12 VDC); 6.4W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity |
≤95% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection |
IP67; IK10 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
81.0 mm × Φ109.9 mm (3.19" × Φ4.33") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.34 kg (0.75 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.49 kg (1.08 lb) |
