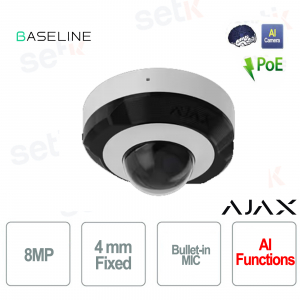

76024.214.WH1 #76024 | The Ajax DomeCam mini camera is a compact and discreet video surveillance solution, perfect for indoor environments thanks to its modern white design. Equipped with 8MP resolution and a 4mm lens, it guarantees ultra-high definition images with a wide viewing angle and precise details, even in critical lighting conditions. Advanced technology and integration into Ajax systems make it ideal for professional and smart home installations. Easy to install and configure, it combines security, performance, and style in a single device.
referencia : 76024.214.WH1
brand : Ajax Systems
EAN: 4823114047879
Disponibilità: 28

LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
76024.214.WH1 | DOMECAM MINI 8MP 4MM POE IP CAMERA WITH MICROPHONE AND ARTIFICIAL INTELLIGENCE

The Ajax DomeCam mini 76024.214.WH1 is a compact and advanced wired IP camera designed for indoor use, featuring 8MP resolution (3840×2160 px) and a 4mm lens, in an elegant white color. It guarantees crisp 4K UHD images, True WDR to compensate for extreme lighting conditions, and IR vision up to 15 m. Integrated with the Ajax Cloud system, it enables secure video streaming, AI analytics for recognizing people, vehicles, and animals, as well as easy setup via app or NVR.
Main specifications:
- 8MP 4K UHD resolution with True WDR
- 4mm fixed optics with 75°–85° viewing angle
- IR night vision up to 15 meters
- Full compatibility with Ajax system and standard PoE
- White color, IP65 protection, compact design
Further details
✅ Communication channels:
Technical data sheet
76024.214.WH1 |
|
Compatibility | Hub, Hub plus, Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G) |
Model | 8MP/4mm Resolution up to 3840 × 2160 px Frame rate 20 FPS Viewing angle from 75° to 85° |
Videostream | Video protocol JetSparrow Fast and encrypted peer-to-peer video protocol developed by Ajax Systems |
Storage NVR MicroSD - Memory storage device not included |
|
Codecs: H.265 H.264 |
|
Dynamic ranges HDR WDR |
|
Communication channels | Ethernet: Up to 100 Mbps |
Key features | Motion detection: The camera has software to detect motion in the frame |
Object detection - using AI Humans Pets Vehicles |
|
Smart IR illumination - up to 30m Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low light conditions |
|
Active Zone: The camera focuses on certain areas of its view where the device will detect motion |
|
Visual verification of Ajax alarms: The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app. |
|
Microphone: With the corresponding settings, the camera records sound at the object. |
|
Power Supply | Power supply unit 12 V⎓ ± 20%, 1 А - Up to 7.5 W of mains power consumption. |
Ethernet port PoE Standard 802.3at |
|
Sabotage protection | mTLS: Encrypted connection for data protection. Authentication: Via cloud - Without local access rights. Secure Boot: Protection against firmware spoofing. OTA signature verification: Secure automatic firmware update. Privacy: Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop. |
Enclosure | Dimensions: 113 × 60 × 60 mm |
Weight: 360g - without a hard drive |
|
Operating temperature range from -25°C to +40°C |
|
Operating Humidity: up to 90% |
|
Protection class: IP65 |
|
Colors | White |
Complete set | TurretCam (8 Mp/4 mm) Installation template Installation kit Quick start guide |
