HAC-HDW1200CLQ-IL-A-S6 - is a 2MP HDCVI dome camera with Smart Dual Light technology, ideal for residential and commercial video surveillance. With intelligent lighting, it automatically switches from IR light to warm light to ensure clear color images up to 20 meters, reducing light pollution. Equipped with a built-in microphone, 2.8mm fixed lens and IP67 protection, it offers weather resistance and easy installation. 4in1 compatibility (CVI / TVI / AHD / Analog) makes it versatile for different system configurations. With advanced functions such as 3DNR and Super Adapt, it ensures optimal performance in various lighting conditions. Dahua
referencia : HAC-HDW1200CLQ-IL-A-S6
brand : Dahua
EAN: 6923172591937
Disponibilità: 45

DAHUA: DEBAJO DEL COSTE×
DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

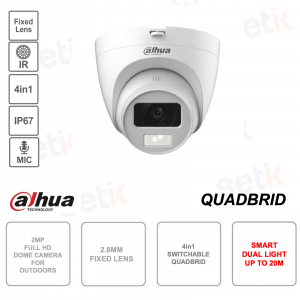

HAC-HDW1200CLQ-IL-A-S6 | 2MP SMART DUAL LIGHT DOME CAMERA WITH MICROPHONE S6 VERSION

Dahua HAC-HDW1200CLQ-IL-A-S6 2MP dome camera offers an advanced video surveillance solution with Smart Dual Light technology, ideal for indoor and outdoor environments. Thanks to the intelligent lighting function, it ensures clear color images even at night, while the built-in microphone allows audio acquisition. Compatible with multiple video formats (CVI, TVI, AHD, CVBS) and equipped with IP67 protection, it ensures maximum flexibility and resistance to atmospheric agents.
Main specifications:
- 1080P Full HD resolution (2MP)
- Smart Dual Light Technology: IR + warm light
- 2.8mm fixed optics with night vision up to 20m
- Built-in microphone for real-time audio
- 4-in-1 compatibility: HDCVI / TVI / AHD / CVBS
- IP67 protection grade for outdoor use
- Intelligent functions: 3DNR (Digital Noise Reduction), Super Adapt
Further details
✅ Hybrid night lighting:
✅ 4in1 Compatibility:
✅ Image enhancement technologies:

Technical data sheet
MODEL | HAC-HDW1200CLQ-IL-A-S6 |
Room | |
Image Sensor | 2MP CMOS |
Max. Resolution | 1920 (H) × 1080 (V) |
Scanning System | Progressive |
Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
Y/N Ratio | >65dB |
Illumination Distance | IR: 20m (65.62ft) Warm light: 20 m (65.62 ft) |
Illuminator On/Off Control | Car |
Illuminator Number | 2 (Warm light); 2 (IR light) |
Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed focal |
Auto Focus | No |
Lens Mount | M12 |
Focal Length | 2.8mm |
Max. Openings | F2.0 |
Field of View | 2.8mm: H: 102°; V: 60°; D: 129° |
Iris Control | Fixed |
Close Focus Distance | 2.8mm: 0.5m (1.64ft) |
Video | |
Video Frame Rate | CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
Day/Night | Auto(ICR)/Color/B/W |
BLC | BLC; HLC; DWDR |
WDR | VBR |
Video Bitrate | H265: 54kbps–1280kbps |
WDR | DWDR |
White Balance | Auto;White balance area |
Gain Control | Car |
Noise Reduction | 3D NR |
Mirror | Yes |
Privacy Masking | Off/On (8 areas, rectangle) |
Certification | |
Certifications | CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B |
Port | |
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Audio Input | 1 channel |
Power | |
Power Supply | 12VDC ±30% |
Power Consumption | Max 2.6W (12VDC, IR on) |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | <95% (RH), non-condensing |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity | <95% (RH), non-condensing |
Protection | IP67 |
Structure | |
Casing Material | Plastic |

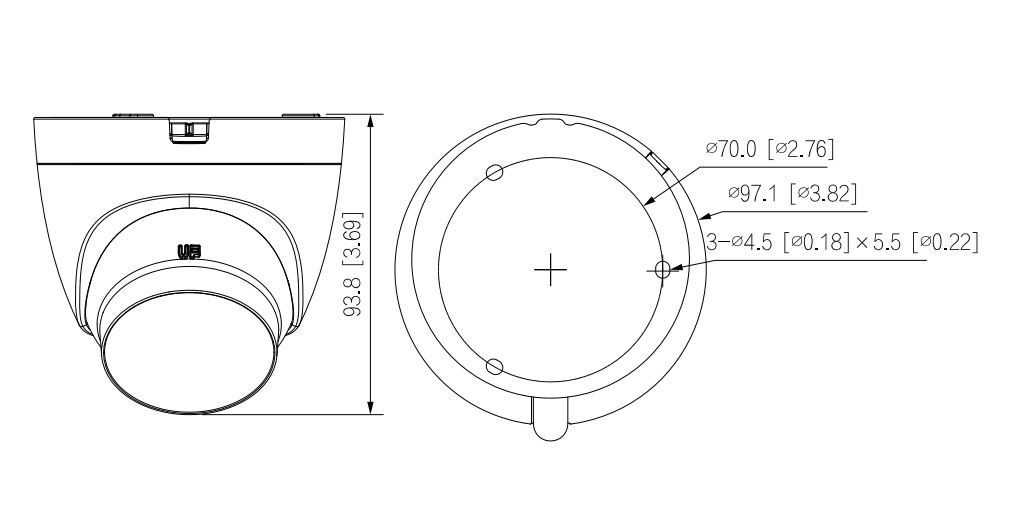

Product Dimensions | Φ97.1mm × 93.8mm (Φ3.82" × 3.69" |
Net Weight | 0.18 kg (0.40 lb) |
Gross Weight | 0.29 kg (0.64 lb) |
Installation | Wall mount; ceiling mount; vertical pole mount |
