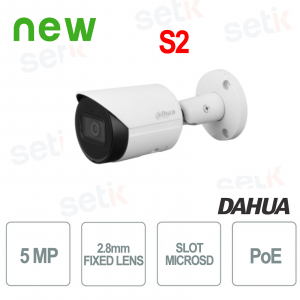

IPC-HFW2541S-S-S2 | ONVIF® POE IP CAMERA - 5 MEGAPIXEL 2.8MM - VIDEO ANALYSIS - MICROSD SLOT - S2 VERSION
The Dahua IPC-HFW2541S-S-S2 IP camera is the ideal solution for professional video surveillance with clear images and advanced security. Thanks to AI-based WizSense technology, it ensures intelligent detection of people and vehicles, minimizing false alarms and improving protection in sensitive areas.
Main specifications:
- 5MP CMOS sensor with IR night vision up to 30 meters
- H.265+ codec for bandwidth and space savings
- Artificial intelligence with advanced perimeter detection
- 120dB WDR technology for clear images even in backlight
- IP67 protection rating for outdoor use in any weather condition
- PoE or 12V DC power supply for easy installation
Further details
✅ Resolution:
Equipped with a 1/2.7'' CMOS sensor with a resolution of up to 5MP (2960×1668), it guarantees high-definition images and a smooth frame rate of up to 30fps for sharp details both day and night.
✅ Optics :
Fixed lens available in 2.8mm version with F1.6 aperture, wide viewing angle up to 132° and integrated IR illumination up to 30 meters for effective coverage even in dark environments.
✅ Intelligence :
Thanks to WizSense technology, it integrates Artificial Intelligence functions with perimeter detection (tripwire and intrusion) and SMD Plus to distinguish people and vehicles, drastically reducing false alarms.
✅ Microphone:
It features a built-in microphone for capturing ambient audio, offering complete video and audio monitoring for more effective security.
✅ Network Camera:
It is a true IP camera with 10/100 Mbps Ethernet connectivity, PoE support for simplified power supply and compatibility with ONVIF protocols, making it easily integrated into any video surveillance system.
✅ WizSense:
Dahua's WizSense series is based on deep learning algorithms for intelligent human and vehicle recognition, improving operational efficiency and simplifying alarm management with a simple and effective user interface.
Technical data sheet
| Model | IPC-HFW2541S-S-S2 |
| Room | |
| Image Sensor | 1/2.7” CMOS |
| Effective Pixel | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.007 lux@F1.6 (Color, 30 IRE) 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| IR Distance | Up to 30 m (98.43 ft) (IR) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Openings | F1.6 |
| Field of View | H: 111°; V: 58°; D: 132° |
| Iris Type | Fixed |
| Close Focus Distance | 1.1 m (3.61 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2960 × 1668 (2960 × 1668); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–8192 Kbps H.265: 12 Kbps–8192 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P |
| Interoperability | ONVIF®(Profile S/Profile G/Profile T);CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256GB); NAS |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | Basic: 2.2W (12VDC); 2.9W (PoE) Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.1 W (12 VDC); 5.0W (PoE) |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Storage Humidity | ≤95% |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal |
| Dimensions | 166.2 mm × 70 mm × 70 mm (6.54" × 2.76" × 2.76") (L × W × H) |
| Net Weight | 0.48 kg (1.1 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
