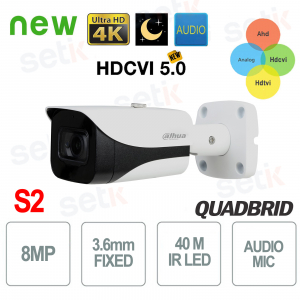

HAC-HFW2802E-A-S2 | DAHUA 4IN1 8MEGAPIXEL 3.6MM CAMERA - STARLIGHT IR 40METERS AUDIO


Dahua

The Dahua HAC-HFW2802E-A-S2 bullet camera offers ultra-clear 4K images with Starlight technology for advanced night vision, 120dB true WDR to handle strong light contrasts, and 3DNR noise reduction for consistently clear footage. Thanks to coaxial cable transmission up to 700 meters, it is compatible with existing analog systems and is equipped with a built-in microphone and a 3.6mm fixed lens. Ideal for professional installations, it guarantees high performance indoors and outdoors thanks to its IP67 protection and 12V±30% DC power supply.

Main specifications:

- Maximum resolution 4K (8MP) – 3840×2160

- 3.6mm fixed optics

- Starlight + Smart IR up to 40m for night vision

- WDR 120dB for clear images in backlight

- Built-in microphone for broadcast-quality audio

- Compatible with HDCVI / CVBS / other analog HD formats

- IP67 protection grade, operating temperature -30°C~+60°C

- Simplified installation with video, audio and data signal support on a single coaxial cable

Further details

4K Ultra HD resolution (8MP):
This camera offers extremely sharp video quality with 4K resolution (3840x2160 pixels), ideal for video surveillance in situations where detailed identification of people, vehicles, and objects is required. It supports frame rates up to 15fps at 4K, ensuring smoothness and quality even in high definition.
3.6mm fixed lens :
The included 3.6mm fixed lens ensures a horizontal viewing angle of approximately 87°, suitable for monitoring entrances, corridors or medium-long areas.
Multi-protocol HDCVI technology :
HDCVI allows the simultaneous transmission of video, audio, data, and power over a single coaxial cable, simplifying installation and reducing costs. Multiple compatibility with CVBS and other analog HD standards allows for seamless integration with existing DVRs/XVRs. It also supports stable transmission up to 700 meters over coaxial cable without loss of quality.

Starlight technology for low light:
Thanks to a highly sensitive 1/2" sensor and Starlight technology, the camera captures detailed, color images even in very low light environments (0.005 Lux). In completely dark conditions, intelligent infrared (Smart IR) guarantees a clear view of up to 40 meters.
Microphone:
The camera features a built-in microphone and separate audio input, with advanced processing technology that reduces noise and improves sound quality. This allows for the collection of clear and reliable audio evidence, making it ideal for environments where audio is of evidentiary value.
Detailed diagram with dimensions of the Dahua HAC-HFW2802E-A camera

Technical data sheet

Model

HAC-HFW2802E-A-S2

Room
Image Sensor 4K CMOS
Effective Pixels 3840(H)×2160(V)
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s

Min. Illumination

0.001 lux@F1.5 (Color, 30 IRE)
0.0001 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio >65 dB
IR Distance Up to 40m (130 feet)
IR On/Off Control Car
IR LEDs 2
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Auto Focus No
Lens Mount M16
Focal Length 3.6mm
Max. Openings F1.5
Angle of View H: 111°; V: 59°; D: 131°
Iris Control Fixed
Close focus distance

1.8 m (5.91 ft)

Video
Video Frame Rate

CVI: PAL: 4K@15fps;5M@25fps; 4M@25fps
NTSC: 4K@15fps;5M@25fps; 4M@30fps
AHD: PAL: 4K@15fps; NTSC: 4K@15fps
TVI: PAL: 4K@15fps; NTSC: 4K@15fps
CVBS: PAL: 960H; NTSC: 960H

Resolution

4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480)

Day/Night Auto (ICR) / Manual
BLC Mode BLC; HLC; WDR; HLC-Pro
WDR 120dB
Gain control Auto/Manual
Noise reduction 3D NR
Illumination Mode Smart IR
Defog Electronic defog
Digital Zoom
White balance Auto; White balance area
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Audio Input One channel built-in MIC
Power
Power Supply 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
Power consumption Max 6.4 W (12 VDC, IR on)
Environmental
Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Ingress Protection IP67
Construction
Casing Material Plastic sunshield + metal body
Dimensions 179.9mm×70mm×70mm (7.08"×2.76"×2.76")
Net Weight 0.42kg (0.93lb)
Gross Weight

0.53kg (l1.17b)

Installation

Wall mount; ceiling mount; vertical pole mount

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
