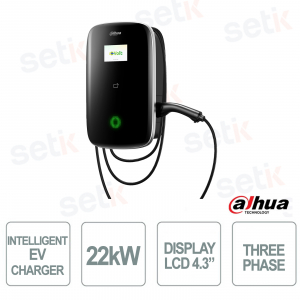

Dahua D-Volt Pro 22 kW Three-Phase Type 2 Smart App RFID OCPP MID IP55 EV Charging Station

Dahua D-Volt Pro 22 kW Three-Phase Type 2 Smart App RFID OCPP MID IP55 EV Charging Station

 
EN PROMOCIÓN -55%

ICS-A220E-B2D - The D-Volt Pro 22 kW smart charging column is designed to offer fast, safe and efficient charging for electric vehicles in commercial and professional settings. Equipped with a 4.3" LCD display , MID-certified meter , App, RFID and Plug&Play control , OCPP 1.6J and ModBus TCP support and numerous integrated protections, it guarantees maximum reliability. Thanks to intelligent current management , it automatically optimizes the charging power based on the electrical system's consumption, improving energy efficiency and reducing the risk of overloads. The IP55 certification, IK10 resistance and Type A + 6 mA DC RCD protection make it ideal for both indoor and outdoor installations. Dahua

Technical data sheet

referencia : ICS-A220E-B2D

brand : Dahua

EAN: 6939554905667

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ICS-A220E-B2D | D-VOLT PRO 22kW EV CHARGING STATION

Dahua

The Dahua D-Volt Pro ICS-A220E-B2D 22 kW smart charging column is the ideal solution for charging electric vehicles in residential, commercial and corporate environments. Equipped with a 4.3" LCD display , Type 2 socket , MID-certified meter , App, RFID and Plug&Play management and OCPP 1.6J and ModBus TCP support, it offers high performance and maximum ease of use. Thanks to dynamic power management , it automatically adjusts the charging current based on the electrical system's absorption, optimizing consumption and avoiding overloads. The Type A + 6 mA DC RCD protections, IP55 certification and IK10 resistance ensure reliability and safety even in outdoor installations.

Main specifications:

  • Power: 22 kW three-phase
  • Connector: Type 2 socket (IEC 62196-2)
  • Charging Mode: Plug & Play, RFID and App
  • Connectivity: OCPP 1.6J, ModBus TCP, Ethernet, RS485, CAN, USB
  • Display: 4.3" LCD
  • Intelligent Management: Dynamic Power Balancing
  • Safety: RCD Type A + 6 mA DC, IP55, IK10, MID meter

Further details

✅ Power :
Charging power of up to 22 kW in three-phase mode ensures fast and efficient charging of electric vehicles. The adjustable current from 6 A to 32 A also allows the available power to be automatically adjusted to the system's consumption, optimizing energy and avoiding overloads.
✅ Type 2 Connector:
Equipped with a Type 2 socket (IEC 62196-2 EU) , it ensures maximum compatibility with most electric and plug-in hybrid vehicles on the European market, making it ideal for residential and commercial installations.
✅ Charging mode :
It supports three startup modes – Plug & Play , RFID and App – allowing simple, safe and flexible management of charging sessions, with the possibility of programming times and energy levels to reduce operating costs.
✅ Advanced connectivity:
It integrates OCPP 1.6J and ModBus TCP protocols, as well as RJ45 Ethernet, RS485 , CAN and USB ports , allowing integration with management systems, remote monitoring and OTA updates for complete control of the charging infrastructure.
✅ LCD Display :
The 4.3-inch LCD display provides a clear view of charging status, operating information and key parameters, improving the user experience and making it easier to manage the device.
✅ Security:
Designed with multiple electrical protections , it includes RCD Type A 30 mA + 6 mA DC , PEN protection , protection against overvoltages , overcurrents , short circuits , overtemperatures and current leakages , as well as IP55 and IK10 protection ratings to ensure maximum reliability even in outdoor environments.

Technical data sheet

ICS-A220E-B2D
Basic
Rated Power 22 kW
Power Supply AC400 V±15% 50/60 Hz 3-Phase
Input Cable Wiring Method L1/L2/L3/N/PE
Operating Current 3 * 32 A max
Socket Outlet or Connector Type Socket/5 m (16.40 ft) Cable, Type 2
Display Screen 4.3 inch LCD
Charging Protocol Mode 3 (EN/IEC 61851)
Protection IP66 (Cable), IP55 (Socket)
Anti-collision Grade IK10
Operating Temperature –30 °C to +50 °C (– 22 °F to +122 °F)
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Port
Charging Port Type 2 (Socket, IEC 62196 Type2 EU)
Ethernet Port 1 × RJ-45 port
Others RS485*2/CAN*2/USB
Function
Charging Control Mode Plug & Play/RFID/APP
Communication Protocol OCPP 1.6J and ModBus TCP
Upgrade Method USB upgrade and remote upgrade (OCPP 1.6J)
MID Built-in MID-certified Meter.
Leakage Protection 30 mA Type A RCD + 6 mA DC
Security Protection Surge protection, over temperature protection, over voltage protection, under voltage protection, over current protection, grounding protection, electrical leakage protection, PEN (for British regions), and Integral 30 mA Type A RCD (EN 61008) + 6 mA DC protection (EN 62955)
General
Operating Humidity ≤95% (RH), non-condensing
Product Dimensions 443.0 mm × 273.0 mm × 171.5 mm (17.44" × 10.75" × 6.75") (H × W × D)
Packaging Dimensions cable: 606.0 mm × 423.0 mm × 484.0 mm (23.86" × 16.65" × 19.06") (L × W × H)
socket: 606.0 mm × 423.0 mm × 409.0 mm (23.86" × 16.65" × 16.10") (L × W × H)
Net Weight 6.0 kg ± 0.5 kg (13.23 lb ± 1.10 lb)
Package Weight 12.0 kg ± 1.0 kg (26.46 lb ± 2.20 lb)
Installation Environment Indoor or outdoor in well-ventilated places and free of oil stains, chemicals and inflammable and explosive substances.
Wire Wire cross-section:
3 × 6 mm2 (9 AWG) 1-Phase
5 × 6 mm2 (9 AWG) 3-Phase
Installation Wall mount and vertical pole mount
Certifications CE/CB
EN IEC61851-1, EN IEC61851-21-2, EN300328, EISI EN300330,
EN301489-1/-17/-3/-52, EN62311, EN50364, ETSI EN 301511,
ETSI EN301908-1/-2/-13, IEC62955, 2011/65/EU, 2015/863/EU
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
