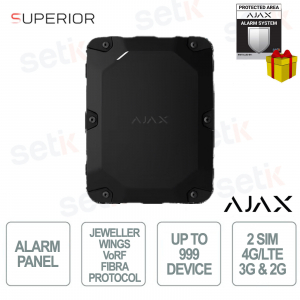

158639.384.BL1 # 158639 | Ajax Superior MegaHub black is a professional hybrid control panel designed for large installations, capable of managing up to 999 wired and wireless devices with Grade 3 certification for high-security applications. It integrates Ethernet, Wi-Fi and dual SIM 2G/4G (LTE) connectivity with automatic channel switching to ensure communication continuity. It supports wired Fiber protocol up to 2,000 m and Jeweller, TurboWings and VoRF radio communication for maximum coverage and reliability. It manages up to 100 automation scenarios , 100 security groups and 500 rooms, with photographic alarm verification. 100–240 V power supply with backup up to 60 hours and IP40/IK06 protection rating, ideal for advanced enterprise systems.
BUSQUE INSTALADOR
158639.384.BL1 | HYBRID CONTROL PANEL WITH PHOTO VERIFICATION - CONNECTABLE VIA ETHERNET, WI-FI, AND TWO SIM CARDS (2G/3G/LTE) - DESIGNED FOR INSTALLATION IN AN AJAX HOUSING
Ajax Superior MegaHub black, 158639.384.BL1, is a professional hybrid control panel for large installations, capable of managing up to 999 wired and wireless devices with Grade 3 certification for high-security applications. It integrates Ethernet, Wi-Fi and dual SIM 2G/4G LTE connectivity with automatic channel switching and transmission priority to ensure operational continuity. It supports Fiber protocol up to 2,000 m and Jeweller, TurboWings and VoRF radio communication for extended coverage and advanced reliability. It manages up to 100 automation scenarios , 100 security groups, 500 rooms and photographic alarm verification. 100–240 V power supply with backup up to 60 hours and IP40/IK06 protection rating, ideal for advanced enterprise security systems.
Main specifications:
- Up to 999 wired and wireless devices
- Ethernet, Wi-Fi and dual SIM 2G/4G LTE connectivity
- Fiber Protocol up to 2,000 m
- 100 automation scenarios and 100 security groups
- Backup up to 60 hours with IP40/IK06 rating
Further details
✅ Capacity:
Hybrid enterprise control panel capable of managing up to 999 wired and wireless devices , 100 security groups, 500 environments, up to 1,000 users and 100 automation scenarios, ideal for large, highly complex professional systems.
✅ Fiber Communication :
Support for wired Fiber protocol up to 2,000 m , with 8 configurable lines (radial, ring, tree) to ensure stability, security and operational continuity even in large installations.
✅ Wireless Communication :
Integration with Jeweller, TurboWings and VoRF protocols with radio range up to 2,000 m in open field, two-way transmission, OTA firmware updates and protection against interference.
Integration with Jeweller, TurboWings and VoRF protocols with radio range up to 2,000 m in open field, two-way transmission, OTA firmware updates and protection against interference.
✅ Communication channels:
Multiple connectivity via Ethernet, Wi-Fi and dual SIM 2G/4G LTE , with automatic switching between channels and transmission priority to ensure maximum connection reliability.
Multiple connectivity via Ethernet, Wi-Fi and dual SIM 2G/4G LTE , with automatic switching between channels and transmission priority to ensure maximum connection reliability.
✅ Notifications:
Instant sending of alarms and events to Ajax apps and monitoring center via IP and cellular channels, with event logging of up to 1,000 logs in non-volatile memory.
Instant sending of alarms and events to Ajax apps and monitoring center via IP and cellular channels, with event logging of up to 1,000 logs in non-volatile memory.
✅ Photo verification:
Compatible with MotionCam detectors for photographic verification of alarms based on events, scenarios, arming/disarming or masking attempts, increasing the reliability of intrusion management.
✅ Monitoring:
Automatic synchronization with security institutes, continuous monitoring of the status of fiber lines and device supervision with anti-spoofing authentication.
✅ Sabotage Resistance:
Advanced system with anti-opening tamper , short circuit detection, fiber line breakage, anti-jamming protection with frequency hopping and device authentication.
✅ Power supply:
Main power supply 100–240 V AC 50/60 Hz with 24 V Fiber line for connected devices and 12 V backup battery support up to 18 Ah to ensure operational continuity.
✅ Power consumption:
Power consumption from the mains up to 10 W , designed for energy efficiency in professional installations with autonomy up to 60 hours with battery backup.
Technical data sheet
| 158639.384.BL1 | |
| Capacity | Ajax devices up to 9991 Specifically, up to 10 range extenders 1 The hub supports both devices with the new firmware version (ie, with the “999-ready” label) and devices with the legacy firmware version. However, no more than 250 devices with the legacy firmware can be added to the hub. he remaining devices within the 999 limit must have the new firmware version. Ajax NVRs
Automation scenarios
Security groups |
| Wired communication | Fiber communication technology Proprietary wired communication technology to transmit commands, alarms, and events. Key features:
4-core cable Input 8 Fiber lines Compatible with Fiber devices only Fiber line length up to 2,000 m up to 6,550 ft When the U/UTP cat.5 4×2×0.51 mm (24 AWG) cable with copper conductor is used. Power supply of devices up to 1.2 A per one Fiber line up to 1.6 A in total for all Fiber lines For all connected wired devices. Output voltage range 23–25.1 V⎓ Maximum rated output 0.53 A Maximum output peak-to-peak ripple voltage 220 mV Topologies
Polling interval from 12 to 300 s Adjusted by a PRO or user with admin rights in Ajax apps Encrypted communication All stored and transmitted data is protected by block encryption featuring a dynamic key |
| Wireless communication | Superior Jeweler communication technology Proprietary wireless technology for transmitting commands, alarms, and events. Superior Jeweler is an upgraded version of the Jeweler radio protocol for Superior devices, ensuring compliance with EN 50131 (Grade 3). Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 25 mW Automatic power control to reduce power consumption and radio interference. Radio signal modulation GFSK Radio communication range Up to 2,000 m Up to 6,500 ft Between a hub and a radio signal range extender, or between a range extender and connected devices (in an open space). The maximum range depends on the connected device. Polling interval from 12 s to 300 s Adjusted by a PRO or user with admin rights in Ajax apps Frequency hopping Proprietary wireless communication technology to transmit large data packets. Key features:
865.0 - 868.0 MHz 868.0 - 868.6 MHz 868.7-869.2 MHz 869.4 - 869.65 MHz Maximum effective radiated power (ERP) up to 25 mW Automatic power control to reduce power consumption and radio interference Radio communication range Up to 2,000 m Up to 6,500 ft Between the hub and the devices added to it in open space. The maximum range depends on the added device Encrypted communication All stored and transmitted data is protected with advanced encryption, ensuring both confidentiality and integrity. Frequency hopping To prevent radio interference and jamming. |
| Recommendations | The device is designed for indoor and outdoor use if installed in Case E (395). |
| Communication channels | Ethernet 1 × 8P8C socket Up to 100 Mbps. Cellular 2 × micro SIM slot Cellular bands 2G GSM900/DCS1800 (B3/B8) 4G (LTE) FDD B1/B3/B5/B7/B8/B20 Wi-Fi 802.11 b/g/n module Up to 72 Mbps. Automatic switching between communication channels
1. Ethernet 2. Wi-Fi 3. Cellular connection Communication channels work in parallel to increase the system's reliability. Most of the data is transmitted via Ethernet. External antenna connectors Jeweler Wings 4G (LTE) The system will notify of the damaged antenna. Ajax ExternalAntenna is sold separately. Alarm transmission system categories SP2, SP5, DP3 Control panel operation method pass-through Signaling security S2 Substitution security Information security I2 Encryption algorithm AES-128 |
| Notifications | Notification types
Event types
|
| Photo verification | Photo verification types
up to 9 s By default Photo resolution up to 960 × 720 pixels Depends on the detector Number of photos in a series from 1 to 5 pictures |
| Monitoring | Supported protocols
Event types
|
| Sabotage protection | Tamper alarm The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel. Protection against spoofing device authentication Frequency hopping The hub sends notifications to all users and the security company of jamming or losing connection with the devices. Jamming alert Superior Hub G3 Jeweler analyzes the channel's noise level and the quality of communication with added devices and sends an alert in 30 seconds. |
| Power supply | Main power supply type Type A Device operating AC voltage range 110–240 V, 50/60 Hz From the main power supply. Maximum current consumption is up to 1.8 A. Device operating DC voltage range 10.5–15 V⎓ Autonomous operation up to 60 hours Superior Hub Hybrid 2 with a 7 Ah backup battery can power a system of 15 wired devices for 60 hours. Wireless devices operate on batteries and do not require an additional power supply Battery power saver mode allows extending the backup battery life Low battery voltage 11.7 V⎓ Low battery recovery voltage 12.7 V⎓ End-of-life battery voltage 10.5 V⎓ Superior MegaHub switched off. Maximum output peak-to-peak ripple battery voltage 220 mV⎓ Minimum backup battery energy level in the charged state 100% |
| Current consumption | Maximum at nominal voltage 220 mA Quiescent at nominal voltage up to 178 mA When GSM and Ethernet are enabled. up to 170 mA When Ethernet is disabled. 2 From the backup battery if the main power supply is lost. |
| Enclosure | Dimensions 395 × 300 × 110 mm 15.55″ × 11.81″ × 4.33″ Weight TBC Operating temperature range from −25 °C to +55 °C from −13 °F to 131 °F Operating humidity up to 95% without condensation Protection class IP40, IK06 |
| Color | Black |
| Complete set | Superior MegaHub Power cable Battery connection cable Ethernet cable Houses E (395) Installation kit 8 terminating resistors (120 Ω) Quick start guide |
| Warranty | 24 months |
