Touchscreen Keyboard 7" LAN WiFi RS485 Video Live SD 128GB Anti-theft EN50131 - Hikvision

Touchscreen Keyboard 7" LAN WiFi RS485 Video Live SD 128GB Anti-theft EN50131 - Hikvision

 
-35% nuevo

DS-PK670W/White - is an advanced touchscreen keypad for burglar alarm systems, featuring a 7-inch touch LCD display with an intuitive interface for simple and immediate control. It supports LAN, Wi-Fi, and RS-485 bus connectivity , ensuring maximum installation flexibility and integration into security systems. It allows live camera viewing and event management with video storage on SD cards up to 128GB . It integrates quick control functions via shortcuts and relay management, offering an advanced user experience. Equipped with audio with a built-in speaker and EN50131 Grade 2 certification, it represents a complete solution for the intelligent control of indoor security systems. Hikvision

Technical Data Sheet

referencia : DS-PK670W/White

brand : Hikvision

EAN: 6942640552393

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

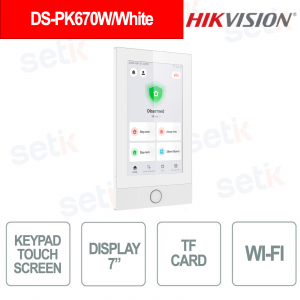

DS-PK670W/White – TOUCHSCREEN KEYBOARD

Hikvision

The Hikvision DS-PK670W is an advanced touchscreen keypad designed for professional burglar alarm systems, equipped with a 7-inch LCD touch display with 600×1024 resolution for intuitive and immediate control. It supports LAN, Wi-Fi and RS-485 bus connectivity , ensuring maximum flexibility of installation and integration into security systems. It allows live viewing of cameras and event management with video recording on SD cards up to 128GB . Thanks to the quick keys and relay control , it allows quick and customized operations. It integrates audio speakers and LED indicators , with EN50131 Grade 2 certification, ideal for indoor environments and advanced system management.

Main features:

- High resolution 7” LCD touchscreen display

- LAN, Wi-Fi and RS-485 bus connectivity

- Live camera viewing

- Event recording on SD up to 128GB

- Quick control with shortcuts and relays

- Built-in speaker and status LED

- EN50131 Grade 2 Certification

Further details

✅ Event log:
The keyboard allows the management of up to 200 event records , allowing complete traceability of activities and alarms , useful for historical analysis and verification of security operations.
✅ Interfaces:
 It integrates 10/100 Mbps Ethernet LAN interface and 2.4GHz Wi-Fi , ensuring stable and flexible connection for remote control and integration into advanced security systems.
✅ Authentication :
It supports 4- to 6-digit PIN code authentication, providing secure and customizable access for authorized users.
✅ Bus interconnection :
It uses RS-485 Half-Duplex technology with 4-wire wiring , ensuring reliable and stable communication between devices within the burglar alarm system.
✅ Indication :
 Equipped with multi-color LED indicators (yellow, green, red) and visual signals, it allows immediate monitoring of system status and events.
✅ Hardware :
It includes SD slot up to 128GB, built-in speaker and debug ports , offering advanced recording, audio reporting and maintenance features , ideal for professional indoor use.

Technical data sheet

DS-PK670W/White
Event logs
Event log records 200
User interface
Display 7" Colorful LCD with resolution 600*1024
Indication 1 indicator (Yellow\Green\Red)
Key button 1
Authentication
PIN 4~6 digits

Bus interconnection
Bus technology Half-Duplex RS-485
Bus wiring 4-Core Alarm Cable (at least 2 × 0.5 mm² + 2 × 0.22 mm²)

Communication interfaces
LAN/Ethernet Supported,10/100Mbps self-adaptive
Wi-Fi Supported,802.11b/g/n (2.4GHz)
Power supply - general
Quiescent current 270mA@12VDC
Input voltage 12 VDC nominal (9~24 VDC), powered by bus
Max. current 400mA@12VDC
Relay output
Relay output 1.1A 30VDC
Environmental
Operating temperature -10°C to 50°C
Storage temperature -10°C to 50°C
Relative humidity 10% ~ 90% non-condensing
Physical
Dimensions (W × H × D) 122mmx218.7mmx27mm
Weight 400 g
Installation method Wall mounting
Tamper-proof Front and Rear
Compliance
Electrical compliance CE, CB
EN 50131 Security Grade 2, Environmental Class II
Indication
LED indication Supported
Hardware features
SD card FAT32 up to 128G
Loudspeaker Supported
Mic Reserved
Debugging port 2
General
Application scenario Indoor
Shell material Plastic
Color White or Black
