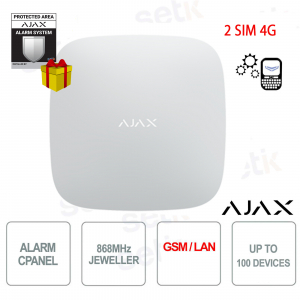

Ajax Hub 2 (4G) Jeweller White – Smart 4G Security Central

Ajax Hub 2 (4G) Jeweller White – Smart 4G Security Central

 
BEST SELLER

38241.108.WH1 # 38241 | Ajax Hub 2 (4G) Jeweller white is an advanced security control panel that ensures always-on connections thanks to three communication channels—Ethernet and dual 4G SIM—with instant switching to ensure continuity even in the event of an unstable network. The Jeweller and Wings radio protocols offer encrypted transmissions, coverage up to 2,000 m, and rapid sending of MotionCam photo verifications, with confirmation of receipt and automatic data backup. The Ajax cloud, with 99.99% availability, enables comprehensive remote monitoring, over-the-air software updates, and instant notifications via app, calls, and SMS. The hub integrates anti-sabotage protection, jamming detection, and an internal battery of up to 16 hours, supporting up to 100 devices and ensuring maximum security. Ajax

Technical Data Sheet

>> FREE AJAX STICKER SIGN

referencia : 38241.108.WH1

brand : Ajax Systems

EAN: 4823114015083

Disponibilità: 2

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CARTEL GRATUITO DE TVCC×

Con todos >> KITS AJAX

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

38241.108.WH1 | SECURITY SYSTEM CONTROL PANEL WITH PHOTO-VERIFICATION SUPPORT

>> FREE AJAX STICKER SIGN


Ajax

The Ajax Hub 2 (4G) Jeweller, 38241.108.WH1 , white is an advanced security control panel designed to ensure always-on communication via Ethernet and dual 4G SIM, ensuring continuity even in the event of an unstable signal. Thanks to the encrypted Jeweller and Wings radio protocols, the hub offers fast and secure transmission of alarms, events and MotionCam photo verification, with coverage of up to 2,000 m and data backup in the event of outages. The Ajax cloud with 99.99% availability allows remote configuration, OTA updates and comprehensive monitoring, while anti-sabotage functions, a built-in battery of up to 16 hours and compatibility with 100 devices make the hub ideal for professional systems.

Main specifications:

- Triple connection: Ethernet + 2 4G SIMs with automatic switching

- Jeweller and Wings protocols for encrypted communications and rapid photo-verification

- Radio coverage up to 2,000 m (Jeweller) and 1,700 m (Wings)

- Ajax Cloud with 99.99% availability and full remote management

- Built-in battery up to 16 hours and anti-sabotage protections

- Support for up to 100 Ajax devices

Further details

✅ Capacity:
Ajax Hub 2 (4G) Jeweller supports up to 100 wireless devices , organized into 50 rooms, 9 security groups and 32 automatic scenarios, allowing the creation of highly modular systems that include sensors, sirens, cameras and automations, easily adapting to home or professional installations of any size.
✅ Jeweler Communication :
The Jeweller protocol ensures encrypted, stable, real-time radio communication with a range of up to 2,000 m , preventing spoofing attempts thanks to device authentication and reducing interference through frequency hopping, ensuring immediate transmission of alarms, events and device statuses.
✅ Wings Communication :
Wings technology is designed for fast and reliable delivery of MotionCam photo verifications , with a range of up to 1,700 m and a dedicated algorithm that confirms delivery, performs automatic backups and resends data in case of interruptions, ensuring clear images even with a weak signal.
✅ Communication channels :
 The hub features three parallel channels— Ethernet and two 4G SIMs —that ensure operational continuity through automatic switching in a few seconds, maintaining a constant connection with users, the cloud, and monitoring centers even in unstable network conditions or in the event of failures.
✅ Photo verification:
Thanks to compatibility with MotionCam and MotionCam Outdoor, the hub sends photographic sequences of the event in a few seconds via Wings, allowing for immediate visual verification of the alarm , reducing false positives and improving the ability to intervene for users and security companies.
✅ Monitoring:
Connected to the Ajax cloud hosted on AWS, with 99.99% availability, the system enables full monitoring from the app, with remote configuration, push notifications, calls and SMS, offering continuous supervision of device status, alarms and connection quality.
✅ Anti-sabotage:
The hub integrates a series of advanced protections including anti-tampering , jamming detection with dedicated notifications, loss of connection with devices in 36 seconds and with the cloud in 1 minute , as well as an internal battery that guarantees up to 16 hours of autonomy in the event of a blackout.

Technical data sheet

38241.108.WH1
Capacity
Wireless Ajax devices up to 100
Specifically, up to 10 sirens and 1 range extender.
Third-party IP cameras up to 25
  • Seamless integration with Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras, and DVRs.
  • RTSP support.
Users up to 50
  • Any number of admin users within the hub limit.
  • PRO accounts for installers.
  • PRO accounts for installation and monitoring companies.
  • Access management for users.
Automation scenarios up to 32
  • Alarm responses.
  • Scheduled actions.
  • Security mode changing reactions
  • Temperature changing reactions.
  • Humidity changing reactions.
  • Reactions to changes in CO2 concentration.
  • Reactions to pressing Button.
Security groups up to 9
Rooms up to 50
Wireless communication
Jeweler communication technology Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
  • Two-way communication.
  • Advanced anti-sabotage.
  • Block encryption featuring a dynamic key.
  • Instant notifications.
  • Remote configuration via the Ajax apps.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) < 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Wings communication range Up to 2,000 m
Up to 6,500 ft
Between the hub and connected devices (in an open space).
Maximum range depends on the connected device.
Polling interval from 12 to 300 s
Adjusted by PRO or user with admin rights in the Ajax apps.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Radio frequency hopping To prevent radio interference and radio signal interception.
Wings communication technology Proprietary wireless communication technology to transmit photo verifications.
Key features:
  • Two-way communication.
  • Block encryption featuring a dynamic key.
  • Advanced anti-sabotage.
  • Package re-uploading in case of transmission errors.
  • Photo delivery check.
Radio frequency bands 866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depence on the sales reaction
Maximum effective radiated power (ERP) < 20 mW
Featured automatic power control to reduce power consumption and noise interference.
Radio signal modulation GFSK
Radio signal range Up to 1,700 m
Up to 5,500 ft
Between the hub and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted radio communication All the data stored and transmitted are protected by block encryption featuring a dynamic key.
Radio frequency hopping To prevent radio interference and radio signal interception.
Recommendations The device operating voltage is 110–240 V~. Hub is designed for indoor installation only.
Communication channels
Ethernet 1 8P8C socket
Up to 100 Mbps.
Cellular 2 micro-SIM slot
Cellular bands 2G
GSM 850/900/1800/1900 MHz
3G
WCDMA 850/900/2100 (B1/B5/B8)
4G (LTE)
FDD B1/B3/B5/B7/B8/B20
Automatic switching between communication channels Instant switching between Ethernet and SIM.
Instant switching between 4G (LTE), 3G, and 2G networks of one SIM.
Switching between SIMs takes up to 4 minutes.
Communication channels prioritization 1. Ethernet
2. Cellular connection
Communication channels work in parallel, to increase system reliability. Most of the data is transmitted via Ethernet.
Notifications
Supported notification types
  • Push notifications
  • SMS
  • Calls
Event types
  • Alarms
  • Malfunctions
  • Security Mode Change
  • System Events
  • Non-security Alerts
  • Automation Devices
The notification types are configured for each user.
Photo verification
Photo verification types
  • Photo by alarm
  • Photo by scenarios
  • Photo on demand
Photo delivery time up to 9 s
by default.
Photo resolution up to 640 × 480 pixels
Depends on the detector.
Number of photos in a series: from 1 to 5 pictures
Monitoring
Supported protocols
  • SIA (DC-09)
  • SurGard (Contact ID)
  • ADEMCO 685
  • Other proprietary protocols
Event types
  • System alarms and events
  • Panic button coordinates
  • Photo verification
Power Supply
Main 110–240 V~, 50/60 Hz
Up to 10W of mains power consumption.
Backup Built-in backup battery: Li-ion 3 А·h
Up to 15 hours of offline operation when the Ethernet is switched off.
Alternative 6 V⎓ (when using 6V PSU for Hub 2/Hub 2 Plus/ReX 2)
12–24 V⎓ (when using 12–24V PSU for Hub 2/Hub 2 Plus/ReX 2)
Requires the appropriate alternative power supply unit (sold separately)
Anti-sabotage
Tamper alarm The system receives notifications about attempts to detach the device from the surface or remove it from the mounting panel.
Protection against spoofing devices' authentication
Proprietary authentication algorithms make it impossible to spoof the hub or connected devices.
Frequency hopping The users and the security company receive notifications in case of jamming or when the hub loses connection with the devices.
Enclosure
Color White
Dimensions 163 × 163 × 36 mm
6.42″ × 6.42″ × 1.42″
Weight 360 g
12.70 oz
Operating temperature range from −10°C to +40°C
from 14°F to 104°F
Operating humidity up to 75%
Casing protection class IP20
Complete set Hub 2 (4G) Jeweler
SmartBracket mounting panel
Power supply cable
Ethernet cable
Installation kit
SIM card (depends on the sales region)
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
