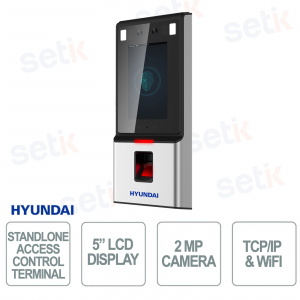

HYU-639 Access Control Terminal with Facial Recognition and Fingerprint

HYU-639 Access Control Terminal with Facial Recognition and Fingerprint

nuevo

HYU-639 - The access control terminal is a standalone solution with facial recognition (accuracy >99%), fingerprint reading, Mifare cards and a 5" touch display. Equipped with a 2MP wide-angle camera with WDR, it allows rapid identification within 1 second at a distance of 0.3–1 m. It manages up to 3,000 faces, 5,000 fingerprints and 100,000 events, with TCP/IP, WiFi, RS485, Wiegand and USB port connections. The device is IP65 certified, suitable for indoor and outdoor installations and compatible with 12V centralized power supply. Hyundai

Technical Data Sheet

referencia : HYU-639

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-639 | STAND-ALONE ACCESS CONTROL TERMINAL WITH FACIAL RECOGNITION - BIOMETRIC FINGERPRINT READING AND READER

Dahua

The HYU-639 terminal is a standalone, intelligent access control solution that integrates facial recognition, fingerprint reading, and Mifare cards. It features a 5" touch display, a 2MP wide-angle camera with WDR, and supports WiFi, TCP/IP, RS485, Wiegand, and USB. Ideal for both indoor and outdoor use (IP65), it offers fast and secure access management with up to 100,000 recorded events .

Main specifications:

- Facial recognition in <1 second="" accuracy="">99%

- Memory for 3,000 faces, 5,000 fingerprints and 5,000 cards

- 5" LCD touch display, 2MP camera with wide-angle lens

- TCP/IP, WiFi, USB, RS485, Wiegand connections

- 12V power supply, IP65 protection, indoor/outdoor installation

Further details

5" touch screen:
The device integrates a 5-inch touchscreen LCD display , designed to offer intuitive and fast user interaction. It is ideal for environments where quick and visual access is essential, allowing the selection of authentication modes, the viewing of system statuses and guided interaction with voice messages .
Display resolution :
The display has a resolution of 480 x 800 pixels , ensuring high readability even in variable lighting conditions. The combination with the 2MP wide-angle camera with WDR allows for a clear view during facial recognition, improving the accuracy of the process.
RS485 and Wiegand communication:
The terminal is compatible with RS485 and Wiegand protocols , making it easy to integrate with external access controllers or additional biometric readers. This dual communication interface allows the system to be easily expanded into existing security networks or environments with high interoperability requirements .

Technical data sheet

HYU-639
Specifications
Embedded Linux operating system
5" LCD touch screen with a resolution of 480 x 800 pixels
2MP camera with wide-angle lens and WDR
Facial recognition time: ≤1 second per person
Face recognition accuracy: ≥99%
Face recognition distance: 0.3~1 meters
Facial image capacity: Up to 3,000 images in JPG/JPEG format
Fingerprint capacity: Up to 5,000 fingerprints
Card capacity: Up to 5,000 cards
Events: Up to 100,000 event logs
Communication mode: Self-adaptive 10/100 Mbps network interface and WiFi
Communication interface: RS485, Wiegand, USB
Input interface: 1 door lock, 1 exit button (REX), 1 tamper, 1 alarm input
Output interface: 1 door lock relay, 1 alarm relay
IP65 protection rating
Power supply: 12V DC /2A (centralized power supply)
Operating temperature -20°C ~ +50°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 281.5 x 113 x 45 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
