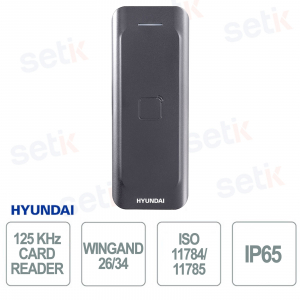

HYU-642 – 125 KHz IP65 EM Card Reader for Access Control

HYU-642 – 125 KHz IP65 EM Card Reader for Access Control

 

The HYU-642 is a 125 KHz EM card reader compliant with ISO 11784/11785 standards, designed to ensure reliability and durability even in outdoor environments thanks to its IP65 protection. It offers a reading range of up to 50 mm and communicates via Wiegand 26/34 protocol, ensuring compatibility with various access control systems. Equipped with an acoustic signal to confirm reading, it withstands extreme temperatures from -20°C to +65°C and humidity up to 90% non-condensing. Made of polycarbonate and ABS, it combines robustness and a compact design for discreet and secure installations. Hyundai

Technical Data Sheet

referencia : HYU-642

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-642 | 125KHz EM Card Reader

Dahua

The HYU-642 is a high-performance 125 KHz EM card reader, compliant with ISO 11784/11785 standards and ideal for indoor and outdoor access control systems. Thanks to its IP65 protection, it withstands extreme weather conditions and guarantees reliable readings up to 50 mm away. Communication occurs via Wiegand 26/34 protocol, ensuring compatibility with a wide range of devices. Made of polycarbonate and ABS, it combines robustness, compact design, and low power consumption.

Main specifications:

- 125 KHz EM reader, ISO 11784/11785 standard

- Reading range up to 50 mm

- Wiegand 26/34 protocol

- Confirmation tone

- Resistant to -20°C ~ +65°C, IP65

- Power supply 12V DC, consumption ≤ 2W

Further details

✅ Authentication method:
It uses 125KHz EM technology to read the ID number of cards, ensuring fast and accurate identification, ideal for professional security systems.
✅ Wiegand 26/34 communication :
It ensures simple and secure integration with most access control systems, offering compatibility and stability in data transmission.
✅ Watchdog:
Self-recovery system that allows the device to automatically recover in the event of a malfunction or error, minimizing downtime .
✅ Doorbell:
Integrated acoustic signal that confirms that the card has been read, improving the user experience and providing immediate feedback to the user.

Technical data sheet

HYU-642
Specifications
8-bit processor
Card reading: EM 125KHz
ISO Standard: ISO 11784/11785
Reading range: ≤50mm
Incorporates acoustic signal
Wiegand 26/34 communication
IP65 protection rating
Power supply: 12V DC
Consumption: ≤2 W
Operating temperature -20°C ~ +65°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 115.9 x 43.3 x 17 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
