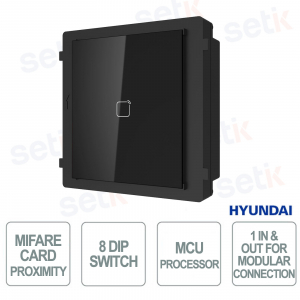

MIFARE Reader Module NEXTGEN IP65 Video Intercom with Badge Access and Modular Connection - Hyundai

MIFARE Reader Module NEXTGEN IP65 Video Intercom with Badge Access and Modular Connection - Hyundai

 
nuevo

HYU-714 - The HYUNDAI NEXTGEN proximity reader module is designed for advanced video intercom systems, offering secure access control via an integrated MIFARE reader for door opening with proximity cards. Equipped with a modular connection with 12V DC input/output , it ensures simple and scalable integration with other system modules. Eight configurable DIP switches allow for flexible settings management, while background light compensation improves performance in harsh environmental conditions. The IP65 protection rating and low power consumption of ≤2W ensure reliability and durability even for professional outdoor installations. Hyundai

Technical Data Sheet

referencia : HYU-714

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-714 | HYUNDAI NEXTGEN MIFARE PROXIMITY READER MODULE FOR VIDEO INTERCOM SYSTEMS


Hyundai Security

The HYUNDAI HYU-714 NEXTGEN proximity reader module is designed for professional video intercom systems, offering advanced access control thanks to the integrated MIFARE reader for door opening via badge. The modular connection with 12V DC input/output allows for simple and scalable integration with other system devices, while the 8 configurable DIP switches allow for complete customization of settings. Background light compensation improves visibility in any environmental conditions, and the IP65 protection guarantees durability and reliability even for outdoor installations. Low power consumption ≤2W ensures energy efficiency and stable performance over time.

Main specifications:

- Integrated MIFARE reader for door opening with badge

- 12V DC input/output modular connection

- 8 DIP switches for advanced configuration

- Backlight compensation for better visibility

- IP65 protection for outdoor use

- Low power consumption ≤2W

Further details

✅ 8 DIP switches:
 8 configurable DIP switches that allow advanced customization of the access control system , facilitating the adaptation of the module to different system configurations and improving operational flexibility.
✅ MIFARE proximity reader:
 Integrated MIFARE proximity reader designed to ensure secure and rapid access via badge , ideal for residential and professional applications where efficient entrance management is required .
✅ MCU Processor:
Built-in high-performance MCU processor ensures stable and reliable management of device functions , optimizing the performance and operational continuity of the video intercom system .
✅ Modular connection:
Modular connection with 1 input/output that allows simple and scalable integration with other modules , making the system easily expandable and suitable for advanced installations .

Technical data sheet

HYU-714
Characteristics
Supports door unlocking by MIFARE cards
Background light compensation
IP65 protection rating
Easy to extend
Specifications
Embedded MCU processor
Incorporates MIFARE proximity reader
8 DIP switches
Modular connection: 1 input / 1 output
Power input: 12V DC (from another module)
12V DC power output (up to another module)
Power consumption ≤2W
Operating temperature -40°C ~ +55°C
Operating humidity 10% ~ 95%
IP65 protection rating
Dimensions: 100 (W) x 98.5 (H) x 33.7 mm
Flush or surface installation
