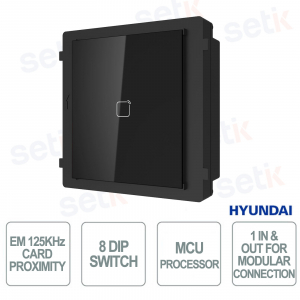

Hyundai NEXTGEN IP65 125KHz EM Reader Module with Badge Access and Modular Connection

Hyundai NEXTGEN IP65 125KHz EM Reader Module with Badge Access and Modular Connection

 
nuevo

HYU-715 - The HYUNDAI NEXTGEN proximity reader module is designed for advanced video intercom systems, offering efficient access control via an integrated 125KHz EM reader for door opening with a badge. Thanks to the modular connection with 12V DC input/output , it allows for simple and scalable integration with other system devices. The 8 configurable DIP switches allow for flexible management of settings, while background light compensation guarantees optimal performance in any environmental conditions. The IP65 protection rating and low power consumption of ≤2W ensure reliability, durability, and operational continuity even in professional outdoor installations. Hyundai

Technical Data Sheet

referencia : HYU-715

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-715 | HYUNDAI NEXTGEN 125KHz EM CARD PROXIMITY READER MODULE FOR VIDEO INTERCOM SYSTEMS


Hyundai Security

The HYUNDAI HYU-715 NEXTGEN proximity reader module is designed for professional video intercom systems, offering reliable access control thanks to the integrated 125KHz EM reader for door opening via badge. The modular connection with 12V DC input/output allows for simple and scalable integration with other modules, while the 8 configurable DIP switches allow for flexible settings management. Background light compensation improves visibility in any environmental conditions, and the IP65 protection guarantees resistance even in outdoor installations. Low consumption ≤2W ensures energy efficiency and consistent performance over time.

Main specifications:

- Integrated 125KHz EM reader for badge access

- 12V DC input/output modular connection

- 8 DIP switches for advanced configuration

- Backlight compensation for better visibility

- IP65 protection for outdoor use

- Low power consumption ≤2W

Further details

✅ 8 DIP switches:
 8 configurable DIP switches that allow advanced customization of the access control system , facilitating the adaptation of the module to different system configurations and improving operational flexibility.
✅ 125KHz EM proximity reader:
 Integrated EM 125KHz proximity reader ideal for ensuring secure and immediate access control via badge , optimising entrance management in residential and professional contexts.
✅ MCU Processor:
Built-in high-performance MCU processor ensures stable and reliable management of device functions , optimizing the performance and operational continuity of the video intercom system .
✅ Modular connection:
Modular connection with 1 input/output that allows simple and scalable integration with other modules , making the system easily expandable and suitable for advanced installations .

Technical data sheet

HYU-715
Characteristics
Supports door unlocking by 125KHz EM cards
Background light compensation
IP65 protection rating
Easy to extend
Specifications
Embedded MCU processor
Incorporates 125KHz EM proximity reader
8 DIP switches
Modular connection: 1 input / 1 output
Power input: 12V DC (from another module)
12V DC power output (up to another module)
Power consumption ≤2W
Operating temperature -40°C ~ +55°C
Operating humidity 10% ~ 95%
IP65 protection rating
Dimensions: 100 (W) x 98.5 (H) x 33.7 mm
Weight: 160 g
Flush or surface installation
