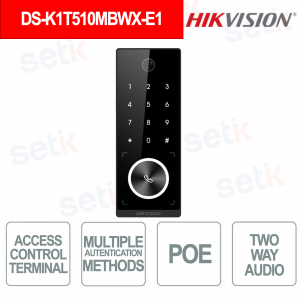

Hikvision IP65 WiFi PoE Face Recognition PIN Card Access Control Terminal with Two-Way Audio

Hikvision IP65 WiFi PoE Face Recognition PIN Card Access Control Terminal with Two-Way Audio

 
-35% nuevo

DS-K1T510MBWX-E1 - The terminal is a complete solution for access control and intercom, designed to integrate security and intelligent management in a single device. It supports multiple authentication via M1 card, PIN and facial recognition , ensuring flexibility and advanced security with accuracy over 99% . Equipped with two-way audio and remote management via the Hik-Connect APP , it allows real-time communication and control. Connectivity is ensured by Wi-Fi, LAN and PoE , with web configuration and AP mode for simplified installations. Ideal for professional environments thanks to IP65 protection and WDR technology , it offers reliability even in difficult conditions. Hikvision

Technical Data Sheet

referencia : DS-K1T510MBWX-E1

brand : Hikvision

EAN: 6936422110376

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-K1T510MBWX-E1 – ACCESS CONTROL TERMINAL

Hikvision

The Hikvision DS-K1T510MBWX-E1 terminal is a professional access control solution that integrates access management and intercom functions in a single device, ensuring security and advanced communication. It supports multiple authentication via M1 card, PIN and high-accuracy facial recognition (>99%) , offering operational flexibility in different contexts. Thanks to Wi-Fi, LAN and PoE power connectivity , it allows simple installations and remote management via the Hik-Connect APP and web configuration. It integrates two-way audio for real-time communication and advanced security features such as facial anti-spoofing and WDR . Ideal for outdoor environments thanks to IP65 protection , it ensures reliability even in difficult conditions.

Main features:

- Access management and intercom in a single device

- Multiple authentication: face, M1 card and PIN

- Fast (<0.33 s="" and="" accurate="">99%) facial recognition

- Wi-Fi, 10/100 Mbps LAN and PoE connectivity

- Remote control via Hik-Connect APP and Web

- Integrated two-way audio

- Support anti-spoofing and WDR technology

- IP65 protection for indoor and outdoor environments

- Capacity up to 1000 users and 3000 cards

Further details

✅ Capacity :
It supports advanced management with up to 1000 users/faces, 3000 cards and 150,000 events , ensuring high performance and reliability even in contexts with frequent and numerous accesses.
✅ Authentication :
It offers multiple access modes via high-precision facial recognition (>99%) , M1 card (13.56 MHz) and PIN code , ensuring security and operational flexibility with fast recognition times (<0.33 s="" span=""> .
✅ Two-Way Audio :
 It integrates two-way audio , allowing real-time communications with client software, internal stations and master stations, ideal for intercom applications and advanced access control.
✅ Functions :
It includes advanced features such as built-in access management and intercom , facial anti-spoofing , web configuration and AP mode , and remote control via Hik-Connect APP , improving security and centralized management .
✅ Interfaces :
Equipped with RJ45 network port , Wiegand interface , lock control , exit button input , door contact and tamper , for complete integration with professional security and access control systems .
✅ Network :
It offers full connectivity with Wi-Fi, Bluetooth and 10/100 Mbps LAN , as well as IEEE802.3at PoE power supply , ensuring flexible installation and stable communication in advanced IP environments .

Technical data sheet

DS-K1T510MBWX-E1
System parameters
Operating system Linux
Video
Lens ×1
Standard video PAL (Default) and NTSC
Network
Bluetooth Support
Wired network 10/100 Mbps self-adaptive
Wi-Fi Support
Interface
PoE IEEE802.3at, PoE standard
Network interface 1
Wiegand 1, supports Wiegand input, single direction
Lock control 1
Exit button 1
Door contact input 1
TAMPER 1
Capacity
User capacity

1000
Card capacity

3000
Face capacity

1000
Event capacity

150000
Authentication
Card type M1 card;M1 card content;CPU card No.
Card reading frequency 13.56 MHz
Face recognition duration ＜ 0.33 s
Face recognition accuracy rate ＞99%
Face recognition distance 0.3 to 1.5 m
General
Button

1 physical call button
Power supply

12 VDC, 1 A, PoE standard
Working temperature

-30 °C to 65 °C (-22 °F to 149 °F)
Working humidity

0% to 90% (no condensation)
Dimensions

135 mm × 52 mm × 26 mm (5.32" × 2.05" × 1.02")
Installation

Wall mounting
Protective level

IP65
Language

Arabic, English, French, Indonesian, Italian, Portuguese (Europe), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese (standard), Dutch, Turkish
Weight

Net weight: 0.19 g (0.42 lb)
Rough weight: 0.57 g (1.26 lb)
Function
QR code recognition

Support scan QR code via QR code module
Face anti-spoofing

Support
Two-way audio Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
