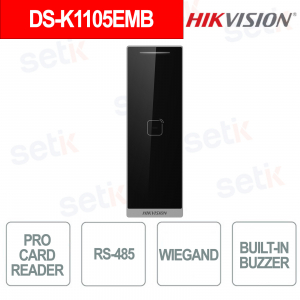

RFID Badge Reader M1 EM RS-485 Wiegand OSDP Bluetooth IP66 Touch Panel - Hikvision

RFID Badge Reader M1 EM RS-485 Wiegand OSDP Bluetooth IP66 Touch Panel - Hikvision

 
-35% nuevo

DS-K1105EMB - The Hikvision DS-K1105EMB badge reader is a professional access control solution, designed to ensure reliability and advanced integration into security systems. It supports RS-485, Wiegand (W26/W34) and OSDP protocols , ensuring maximum compatibility with different system architectures. It integrates a dual frequency reader for M1 (13.56 MHz) and EM (125 KHz) cards , offering flexibility in authentication modes together with Bluetooth and touch panel control . Equipped with an integrated buzzer for immediate notifications and online update support , it improves the operating experience and device management. Thanks to IP66 protection and a wide temperature range, it is ideal for installations even in outdoor environments. Hikvision

Technical Data Sheet

referencia : DS-K1105EMB

brand : Hikvision

EAN: 6936422139803

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-K1105EMB – PRO CARD READER

Hikvision

The Hikvision DS-K1105EMB badge reader is an advanced solution for access control systems, designed to ensure integration and reliability in professional environments. It supports RS-485, Wiegand (W26/W34) and OSDP protocols , ensuring compatibility with various security architectures. It integrates a dual frequency reader for M1 (13.56 MHz) and EM (125 KHz) cards and authentication via Bluetooth , offering flexibility in access methods. Equipped with a touch panel with integrated buzzer , it allows intuitive use and immediate feedback on the reading status. It includes smart features such as occlusion detection and door opening with gestures , as well as IP66 protection for use even in outdoor environments.

Main features:

- Supports RS-485, Wiegand (W26/W34) and OSDP protocols

- Dual frequency reader M1 (13.56 MHz) and EM (125 KHz)

- Multiple authentication with card, Bluetooth and touch

- Touch panel with integrated buzzer for immediate feedback

- Smart functions with door opening via gesture

- Online updates supported

- IP66 protection for indoor and outdoor installations

- 12V DC power supply and low consumption ≤6W

Further details

✅ RS-485 :
It supports RS-485 interface with OSDP protocol and 19200 baud rate , ensuring stable and secure communication between reader and controller, ideal for professional access control systems and long-distance installations .
✅ Wiegand:
Compatible with Wiegand protocol (W26/W34) , it ensures universal integration with most existing access control systems, facilitating upgrades and retrofits without structural modifications .
✅ Authentication :
It offers advanced multiple authentication via M1 card (13.56 MHz), EM (125 KHz) and Bluetooth , allowing flexible and modern access methods, with support for touch functions and gesture opening for an advanced user experience.

Technical data sheet

DS-K1105EMB
Interface
RS-485 Support
Wiegand Support
Authentication
Card type EM card;M1 card
General
Power supply

DC 12V
Power consumption

≤6W
Working temperature

-30 °C to 65 °C
Working humidity

10% to 90%
Dimensions

139×46×21.2mm（5.47×1.81×0.83inch）
Installation

Wall mounting
Protective level

IP66
Buzzer

Support
Weight

167.7g
Time synchronization Support
