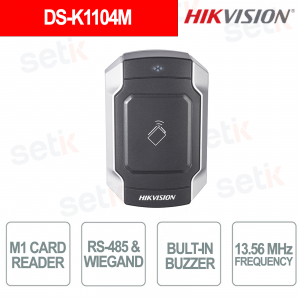

DS-K1104M Card Reader M1 13.56 MHz Vandalproof IK10 RS-485 Wiegand - Hikvision

DS-K1104M Card Reader M1 13.56 MHz Vandalproof IK10 RS-485 Wiegand - Hikvision

 
-35%

DS-K1104M - is a vandal-proof M1 card reader for professional access control systems, with a 13.56 MHz reading frequency and a PC + zinc alloy body. It supports RS-485 and Wiegand interfaces, integrates an acoustic buzzer and offers IK10 protection against impacts. Powered by 12 VDC with consumption ≤ 2 W , it operates from -20 °C to 65 °C and has dimensions of 118 × 76 × 23 mm , making it suitable for robust and reliable installations. Hikvision

Technical Data Sheet

referencia : DS-K1104M

brand : Hikvision

EAN: 6954273635718

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-K1104M – VANDAL-PROOF M1 CARD READER - RS-485 & WIEGAND - IK10

Hikvision

Hikvision DS-K1104M is a vandal-proof M1 card reader for access control systems, with a 13.56 MHz reading frequency and a PC + zinc alloy body. It integrates an acoustic buzzer , RS-485 and Wiegand interfaces and IK10 protection, offering a robust solution for professional installations. It operates with 12 VDC power, consumes up to 2 W and operates from -20 °C to 65 °C . The DS-K1104M model is without a keypad and supports ID configuration via DIP switches .

Main features:

  • Reader: M1 13.56 MHz
  • Protection: IK10
  • Interfaces: RS-485 / Wiegand
  • Structure: PC + zinc alloy
  • Buzzer: integrated
  • Power supply: 12 VDC

Further details

✅ Reading frequency:
The Hikvision DS-K1104M reader uses a 13.56 MHz frequency for reading and authentication via M1 cards , making it specifically designed for professional access control applications.
✅ Acoustic Buzzer:
It integrates an acoustic buzzer that provides an audible signal while using the player, adding audio feedback to the operations performed on the device.
✅ RS-485 :
It has an RS-485 interface, which allows the reader to be connected to compatible access control systems through the communication interface provided by the device.
✅ Wiegand:
Support for the Wiegand interface expands the integration possibilities of the DS-K1104M with infrastructures and access control systems that use this communication standard.
✅ Authentication :
Authentication is done by reading M1 cards at 13.56 MHz ; the DS-K1104M model does not have a keyboard , while the device ID configuration can be done via DIP switches .
✅ Material :
The reader features a robust body made of PC + zinc alloy and is classified IK10 , a feature that identifies its high mechanical resistance to impacts for access control installations.

Technical data sheet

DS-K1104M
Authentication
Card reading frequency 13.56MHz
General
Power supply 12 VDC, ≤ 500 mA
Power consumption ≤ 2 W
Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
Working humidity 10% to 90% (no condensation)
Dimensions 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91")
Installation Applied for 86 & 120 Gang Box
Weight ≤ 0.52 kg (1.1 lb)
Buzzer Support
Function
ID settings via DIP Switch
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
