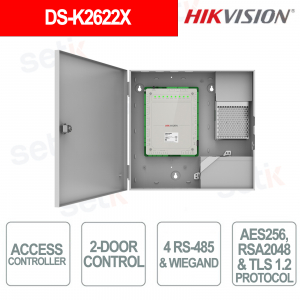

DS-K2622X 2-Port RS-485 OSDP Wiegand Access Control Controller - Hikvision

DS-K2622X 2-Port RS-485 OSDP Wiegand Access Control Controller - Hikvision

 
-35%

DS-K2622X - is a professional 2-door access control controller , designed to manage advanced systems with complete configuration via web browser . It supports IPv4, IPv6 and DHCP networks, AES256, RSA2048 and TLS 1.2 security protocols and advanced functions such as anti-passback, multi-door interlocking and multi-factor authentication . It integrates RS-485, OSDP and Wiegand connections, up to 4 RS-485 readers and 4 Wiegand readers , as well as dedicated inputs and outputs for alarms, locks and door contacts. It also supports battery backup , status indicators and wall mounting, offering a complete solution for professional access management systems. Hikvision

Technical Data Sheet

referencia : DS-K2622X

brand : Hikvision

EAN: 6942160487991

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-K2622X – PROFESSIONAL CONTROLLER - 2 PORTS

Hikvision

Hikvision DS-K2622X is a professional 2-door access control controller , manageable directly via web browser without dedicated software. It supports IPv4, IPv6 and DHCP networks, AES256, RSA2048 and TLS 1.2 encryption, as well as advanced functions such as anti-passback, multi-door interlocking and multi-factor authentication . It integrates RS-485, OSDP and Wiegand connections, supporting up to 4 RS-485 readers and 4 Wiegand readers , with interfaces for locks, exit buttons, door contacts and alarms. 100-240 VAC power supply, backup battery support and status indicators complete a reliable solution for professional installations.

Main features:

  • Doors: 2
  • Network: IPv4 / IPv6 / DHCP
  • Security: AES256 / RSA2048 / TLS 1.2
  • Readers: 4 RS-485 + 4 Wiegand
  • Protocols: OSDP / Wiegand
  • Functions: Anti-passback / Interlock / MFA

Further details

✅ Doors:
The Hikvision DS-K2622X controller supports 2-door management, with 2 lock controls, 2 exit buttons and 2 door contact inputs , offering centralized access management for professional installations.
✅ Network :
It features a self-adaptive 10/100 Mbps wired connection and supports IPv4, IPv6 and DHCP , allowing the controller to be integrated into network infrastructures and configured via a web browser.
✅ Security :
It supports AES256, RSA2048 and TLS 1.2 cryptographic protocols, designed to protect communications and data managed by the access control system.
✅ Readers:
It allows you to connect up to 4 RS-485 readers with OSDP protocol and 4 Wiegand readers , offering high flexibility in integrating compatible card readers and third-party devices.
✅ Protocols :
It supports OSDP over RS-485 and multiple Wiegand formats, including 26/34 bit standards and custom Wiegand configurations, making it easy to integrate with different access control systems and readers.
✅ Functions :
It integrates professional features such as multi-factor authentication, anti-passback and multi-door interlocking , as well as fire interface support, for advanced access management and security scenarios.
✅ Management :
All configurations can be performed directly via a web browser without the need for dedicated application software ; furthermore, status indicators for power, communication, and operation facilitate operational control and device status verification.

Technical data sheet

DS-K2622X
Network
Wired network 10/100 Mbps self-adaptive
Interface
Network interface 1
Lock control 2
Exit button 2
Door contact input 2
Alarm input 4
Alarm output 4
TAMPER 1
RS-485 2 for card readers (1 for communication, 1 for redundancy; each interface can connect up to 4 readers)
Wiegand 4, standard 26/34 input, supports custom Wiegand settings
Fire interface Support
Capacity
Linked door capacity 2
Linked card reader capaciry 4 RS-485 card readers (OSDP protocol) and 4 Wiegand card readers
General
Power supply 100 VAC to 240 VAC
Battery Charge and discharge
Power consumption ≤ 72 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 0% to 90% (no condensation)
Installation Wall mounting
Language English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian and Turkish
Function
Configuration via Web browser Support
Multi-factor authentication Support
Anti-passback Support
Multi-door interlocking Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
