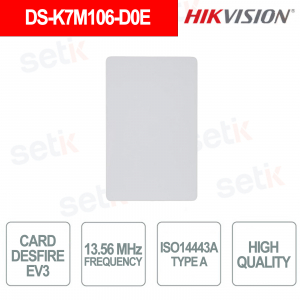

DS-K7M106-D0E DESFire EV3 Card Encrypted 13.56 MHz ISO14443A for Access Control - Hikvision

DS-K7M106-D0E DESFire EV3 Card Encrypted 13.56 MHz ISO14443A for Access Control - Hikvision

 
-35%

DS-K7M106-D0E - is an encrypted DESFire EV3 card designed for professional access control systems, with DESFireEV3 technology and an operating frequency of 13.56 MHz . It supports the ISO14443A Type A communication protocol and offers a compact size of 85.5 × 54 × 0.9 mm , suitable for everyday use as an access credential. The card is designed to operate in a wide temperature range from -25 °C to 125 °C , ensuring reliability even in harsh environmental conditions. Hikvision

Technical Data Sheet

referencia : DS-K7M106-D0E

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DS-K7M106-D0E – ENCRYPTED DESFIRE EV3 CARD

Hikvision

The Hikvision DS-K7M106-D0E is an encrypted DESFire EV3 card designed for professional access control and identification systems. It uses DESFireEV3 technology with a 13.56 MHz operating frequency and ISO14443A Type A communication protocol, offering a compact and reliable credential. The standard 85.5 × 54 × 0.9 mm size facilitates everyday use, while the wide operating range of -25 °C to 125 °C allows for use in a variety of environmental conditions.

Main features:

  • Technology: DESFireEV3
  • Frequency: 13.56 MHz
  • Protocol: ISO14443A Type A
  • Size: 85.5 × 54 × 0.9 mm
  • Temperature: -25°C / 125°C

Further details

✅ Technology:
The Hikvision DS-K7M106-D0E card uses DESFire EV3 technology and is listed in the datasheet as an encrypted card , designed as an electronic credential for compatible identification and access control systems.
✅ Frequency:
It operates at the standard radio frequency of 13.56 MHz , which the card uses for contactless communication with compatible reading devices.
✅ Protocol :
It supports the ISO14443A Type A communication protocol, the standard specified for card communication with compatible readers in access control systems.

Technical data sheet

DS-K7M106-D0E
Network
Communication protocol ISO14443A Type A
Authentication
Card radio frequency standard 13.56 MHz
General
Working temperature -25℃~125℃ (-13℉~257℉)
Dimensions 85.5mm x 54mm x 0.9mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
