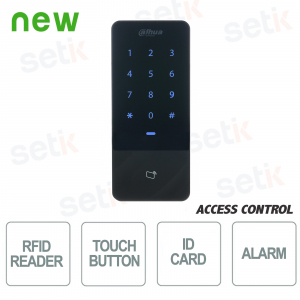

RFID ID PROXIMITY READER STANDALONE WITH TOUCH KEYPAD - WATERPROOF - DAHUA

Controller Standalone Controllo accessi dahua

DESCRIPTION:
The ASI1201E-D-V1 proximity reader from Dahua Security is one of the best standalone RFID readers on the market.
This device allows access control with identification via RFID ID cards , code or combination.

Product details

ASI1201E-D-V1
  • Waterproof RFID Reader - Dahua Security
  • Useful for access control
  • Communication: TCP/IP (RJ45 10/100M), RS485, Wiegand 26/34/66
  • Identification via RFID Cards, Code or Combination
  • Compatible with RFID I D cards
  • 34Bit Processor
  • Door time out alarm, intrusion alarm, duress alarm and tamper alarm
  • Fast card reading/response times (<0.1s)
  • Capacity up to 30,000 users, 60,000 events
  • Power supply: DC 12V 1A
  • Size: 142mm × 62mm × 23mm

Technical data sheet

Model ASI1201E-D-V1
System
Main processor Embedded Processor
Button Type Touch button
Network Protocol TCP/IP
OSDP Protocol Yes
Basic
Product Type Standalone
Buzzer Yes
Backlight Yes
Casing Material PC
Function
Verification Method Card;Password;Remote
Period List 128 groups
Holiday Period 128 groups
Network Update Yes
First User Unlock Yes
Remote Verification Yes
Peripheral Card Reader Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader
Issuing Card by Master Card Yes
Multi-User Authentication Yes
Auto Registration Yes
RFID
Card Type ID card
Performance
Card Reading Distance 0mm–30mm (0"–1.18")
User
User (Card) Type Normal user
Capacity
User Capacity 30,000
Card Capacity 30000
Password Capacity 30,500 (Includes 30,000 user passwords and 500 public passwords)
Record Capacity 60000
Port
RS-485 1
Wiegand 1 (Wiegand input is 26, 34 or 66 bits self-adaptive; Wiegand output is 34 bits by default.)
Network Port 1-channel 10/100Mbps Ethernet port
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel
Power Output Port 1 channel
Alarm
Anti-pass Back Yes
Tamper Alarm Yes
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
General
Power Adapter Optional
Power Supply DC 12 V 1 A (The access standalone does not supply power to the lock.)
DC 12 V 2 A (The access standalone supplies power to the lock. The current of the lock can only reach up to 1 A. If it exceeds, the current will be distributed based on the actual amount of current.)
Protection IP66
Power Consumption ≤12 W (When the access standalone does not supply power to the lock, the power is ≤12W. When it does supply power to the lock, it is calculated based on the actual amount of power of the lock.)
Product Dimensions 142 mm × 62 mm × 23 mm (5.59" × 2.44" × 0.91") (H × W × D)
Packaging Dimensions 195 mm × 135 mm × 56 mm (7.68" × 5.31" × 2.20") (H × W × D)
Transport Package Dimensions 604 mm × 290 mm × 314 mm (23.78" × 11.42" × 12.36") (H × W × D)
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity 0%–90% (RH), non-condensing
Operating Altitude 0 m–1,300 m (0 ft–4265.09 ft)
Operating Environment Outdoor
Gross Weight 244g (0.54lb)
Installation Surface Mount

Further details

This terminal is STANDALONE .

This means that it is autonomous, able to manage functions without having to integrate other devices.

34BIT Processor

Lettore per tessere RFID

Standalone RFID reader with touch keyboard and identification via:
- Code

- Combination

- ID card

ASI1201E-D-V1

Controllo tramite RS485

Communication via TCP/IP (RJ45 100M), RS485 or Wiegand26/34/66

Up to 30,000 users , 60,000 events

Smart functions:

- Intrusion alarm, Door time out alarm, Tamper alarm

Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.
