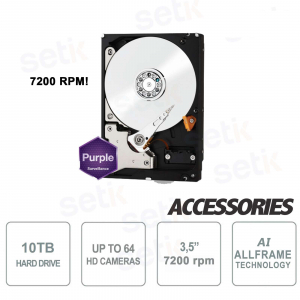

Western Digital 10TB 7200 rpm SATA Internal Hard Drive for Video Surveillance

Western Digital 10TB 7200 rpm SATA Internal Hard Drive for Video Surveillance

 
HDD space calculation

HD Purple Western Digital HD10TBVIDEO Internal SATA Hard Disk for DVR with 10TB capacity 3.5" Audio/Video 7200 RPM , AI Streams 32, for better disk performance - HD10TBVIDEO
!Subject to availability, alternatives may be delivered - WD101PURZ !"

referencia : HD10TBVIDEO

brand : Western Digital

EAN: 0718037866741

Manufacturer Object ( [id] => 12 [name] => Western Digital [description] =>

Western Digital è uno dei leader in ambito Audio/video, setìk ne distribuisce tutta la gamma specifica per questo mercato identificata come AV-25 o AV-35.

[short_description] =>

Hard Disk Videosorveglianza

Western Digital è il principale produttore di Hard Disk per la videosorveglianza

[id_address] => [date_add] => 2012-07-14 15:16:50 [date_upd] => 2019-11-15 17:54:31 [link_rewrite] => western-digital [meta_title] => Western Digital Hard Disk AV [meta_keywords] => hard disk,dischi audio video,dischi AV,SV35,hard disk videosorveglianza [meta_description] => Western Digital, principale produttore di Hard Disk per Videosorveglianza [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DEPENDING ON AVAILABILITY, ALTERNATIVES CAN BE DELIVERED!

HD10TBVIDEO

HD10TBVIDEO - WESTERN DIGITAL HARD DISK - 10TB SATA 3.5" AUDIO / VIDEO - 7200 RPM ALLFRAME AI

Western Digital
HD10TBVIDEO - Hard Disk - Western Digital
Capacity: 10TB ; Size: 3.5"; 7200 rpm - Version: Purple for video surveillance
Up to 64 HD cameras - New PURZ Series with AllFrame AI technology!
Read the article about the new Purple Z Series discs. Click HERE

Box di giunzione JBOXZ compatibile con telecamere setik BLHYB2MZ-PRO DMHYB2MZ-PRO

ATTENTION:

Western Digital Purple series hard drives may be delivered with dual coding ( with an X or Z at the end ), depending on whether the supply comes from Western Digital's European warehouses or from China. However, the two products are equivalent in all respects in terms of features. To find out more, click here .

Product details

  • New series of hard disks for surveillance, PURZ
  • Supports up to 64 HD cameras
  • AllFrame AI Technology
  • Improve writing speed by up to 50%
  • 7200 RPM
  • 3 Years WD Direct Warranty
  • Operation up to 65° (over 30% higher than common hard disks)

Technical data sheet

Model HD10TBVIDEO
Formatted Capacity 10 TB
Form factor 3.5-inch
Advanced Format (AF) Yes
RoHS Compliant Yes
Product Features
Cameras Supported Up to 64
Maximum drive bays supported No limits
AI Streams 32
Firmware Feature Name AllFrame AI
Tarnish-resistant components Yes
Performance

Interface Transfer rate (max)5

Buffer to host

Host to/from drive (sustained)

6 Gb/s

265 MB/s
Cache (MB) 256
Performance Class 7200 RPM
Reliability/Data Integrity
Load/Unload Cycles 600,000
Annualized workload rating 360TB/yr
Non-recoverable read errors per bits read <1 in="" 10="" 15="" td="">
MTBF 1,500,000
Limited warranty (years)/8 3
Power Management

Average power requirements (W)

Read/Write

Idle

Standby and Sleep

9

8

0.5
Environmental Specifications
Temperatures (°C, on the base casting)
Operating
Not Operating

0 to 65
-40 to 70
Shock (Gs)
Operating (2 ms, read/write)
Operating (2 ms, read)
Non-operating (2 ms)
70
70
250
Acoustics (dBA)
Idle
Seek (average)
34
38
Physical Dimensions
Height (in./mm, max) 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 1.65/0.75

Further details

WD Setik has chosen Western Digital as its official supplier of audio/video drives. A 3-year warranty and direct replacement are available from the manufacturer.

In case of defect you can open an RMA directly on the WD website, direct replacement!

Setik OFFERS you the hard drive mounting!
By purchasing one of our hard drives in addition to a video recorder, the latter will be mounted on the video recorder for FREE!

Intellipower Intellipower technology. Variable speed based on received data. Up to 40% reduction in consumption.
Recording in H264 25fps - 24 Hours of Continuous Recording - Values in GIGABYTE
Cameras CIF D1 720p 1080p 4MP
4 8.8 26.4 62 132.8 353.9
8 17.6 52.8 124 265.6 707.8
16 35.2 105.6 248 531.2 1415.6
32 70.4 211.2 496 1062.4 2831.2
64 141 580.4 1316.5 2972.7 5662.3

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
