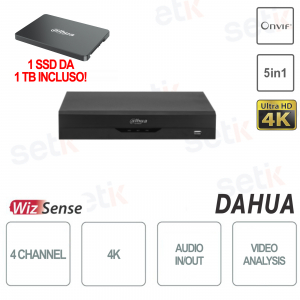

XVR5104HS-4KL-I3(1T): 4K AI DVR with Facial Recognition, SMD Plus and 1TB SSD Included - Dahua

XVR5104HS-4KL-I3(1T): 4K AI DVR with Facial Recognition, SMD Plus and 1TB SSD Included - Dahua
-57%

XVR5104HS-4KL-I3(1T) - 4-channel XVR supports HDCVI/AHD/TVI/CVBS/IP video inputs up to 4K and integrates advanced AI for facial recognition, SMD Plus and perimeter protection, reducing false alarms. Includes AI Coding H.265+ compression for maximum storage efficiency, ONVIF compatibility, intelligent dual lighting and a versatile interface with 4K HDMI output. It features IoT functionality, customizable alarm and mobile remote access. Quick installation, simple use and ideal for professional indoor/outdoor video surveillance systems. Included 1 TB SSD for high-performance recordings without the need for immediate upgrades. Dahua

Technical Data Sheet


DISCOVER THE VERSION WITHOUT THE HARD DISK INCLUDED XVR5104HS-4KL-I3


referencia : XVR5104HS-4KL-I3(1T)

brand : Dahua

EAN: 6923172504456

Disponibilità: 5

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


DISCOVER THE VERSION WITHOUT THE HARD DISK INCLUDED XVR5104HS-4KL-I3


XVR5104HS-4KL-I3(1T) | 4-CHANNEL AND 8-CHANNEL IP XVR VIDEO RECORDER, 5 TECHNOLOGIES IN 1 - 4K - 1TB SSD INCLUDED


Dahua

The Dahua XVR5104HS-4KL-I3(1T) digital video recorder is the compact and powerful solution for professional video surveillance, with integrated artificial intelligence for facial recognition, SMD Plus and perimeter protection. It supports up to 8 IP channels in 4K, AI Coding H.265+ compression, IoT functions and intelligent lighting. Optimized for indoor/outdoor installations, it also includes a 1TB SSD for smooth and uninterrupted recording.

Main specifications:

- Built-in AI: facial recognition, SMD Plus, perimeter protection

- 4 analog inputs + 8 IP channels up to 8MP

- H.265+ compression with AI Coding for bandwidth saving

- Smart IR and white light illuminators (Smart Dual Illuminators)

- Audio via Coax, HDMI 4K, mobile app for remote control

- 1TB SSD included for high-performance recording

Further details

Number of channels:
The Dahua XVR5104HS-4KL-I3(1T) video recorder has 4 analog video inputs and can handle up to 8 IP channels with a maximum recording bitrate of 64 Mbps, thus offering great flexibility for hybrid or fully digital security systems.
Perimeter Protection :
It supports 4-channel intelligent perimeter protection, with advanced functions such as line crossing and intrusion, which can accurately distinguish between humans and vehicles to dramatically reduce false alarms caused by animals or environmental conditions.
Face Detection :
It integrates 2-channel facial detection, identifying human faces in real time and providing analysis of attributes such as age, gender, presence of glasses or masks, useful for applications in retail, access control or behavioral monitoring.

Face Recognition:
It includes 1-channel facial recognition, capable of comparing detected faces with a local database of up to 20,000 images, thus allowing for fast and reliable identification, even in high-traffic environments.
SMD Plus:
It offers intelligent 4-channel motion detection, distinguishing people and vehicles from other moving objects, ensuring more efficient video surveillance thanks to built-in artificial intelligence.
Network:
It provides advanced connectivity via protocols such as IPv4/IPv6, HTTP/HTTPS, ONVIF, and P2P. It allows remote access via browser or mobile app and supports AI Coding compression to optimize storage space without losing video quality.
XVR5104HS-4KL-I3(1T) dimensions

Technical data sheet

Model: DVR XVR5104HS-4KL-I3(1T)
SYSTEM
Main Processor Embedded Processor
Operating System Embedded LINUX
Operating Interface Web; Local GUI
Perimeter protection
Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 1 channel, 10 IVS for each channel
General Model: 4 channels, 10 IVS for each channel
Face detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 1 channel (up to 8 face images/s)
Face Recognition
Face Database Capacity Up to 10 face databases and 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 1 channel
SMD Plus
SMD Plus by Recorder 4-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
Audio and Video
Analog Camera Input 4 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
Camera Input 1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps, 720p@25/30fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps, 720p@25/30fps.
IP Camera Input Up to 8 channels of IPC access
4 IP channels by default + 4 channels (analog channels are converted to IP channels)
incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
Encoding Capacity Main stream: All channel 4K (1 fps–7 fps); 6MP (1fps–
10 fps); 5MP (1fps–12fps); 4K-N, 4MP/3MP (1fps–15fps); 4M-N/1080p/720p/960H/D1/CIF (1fps–25/30fps);
Sub steram: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps)
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/8/9
Third-party Camera Access ONVIF®; RTSP; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Standard compression
Video Compression AI Coding; H.265+; H.265; H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Mobile Phone Access iOS; Android
Interoperability ONVIF® 21.06; CGI Conformant
Browser Chrome
IE9 or later
Firefox
Network Mode Single-address mode
Recording Playback
Record Mode General, motion detection; intelligent; alarm; POS
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Alarm
General Alarm Motion detection, video loss, tampering
Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict
Intelligent Alarm Face detection, face recognition, perimeter protection
Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email
Ports
Audio Input 1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Yes (share the same audio input with the first channel)
HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
RS-485 1 port, for PTZ control
USB 2 USB ports (USB 2.0)
HDMI 1
VGA 1
Network port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 2 A
Power Consumption <7 w="" span="">
Net Weight

0.53 kg (1.17 lb)

Gross Weight 1.07 kg (2.36 lb)
Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H)
Packaging Dimensions 333.0 mm × 315.0 mm × 89.0 mm (13.11" × 12.40" × 3.50") (W× D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 0%–90% (RH)
Installation Desktop
Certifications FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
