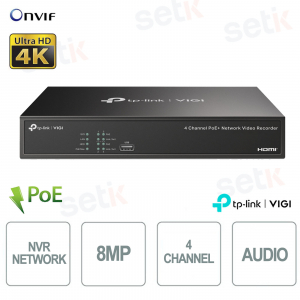

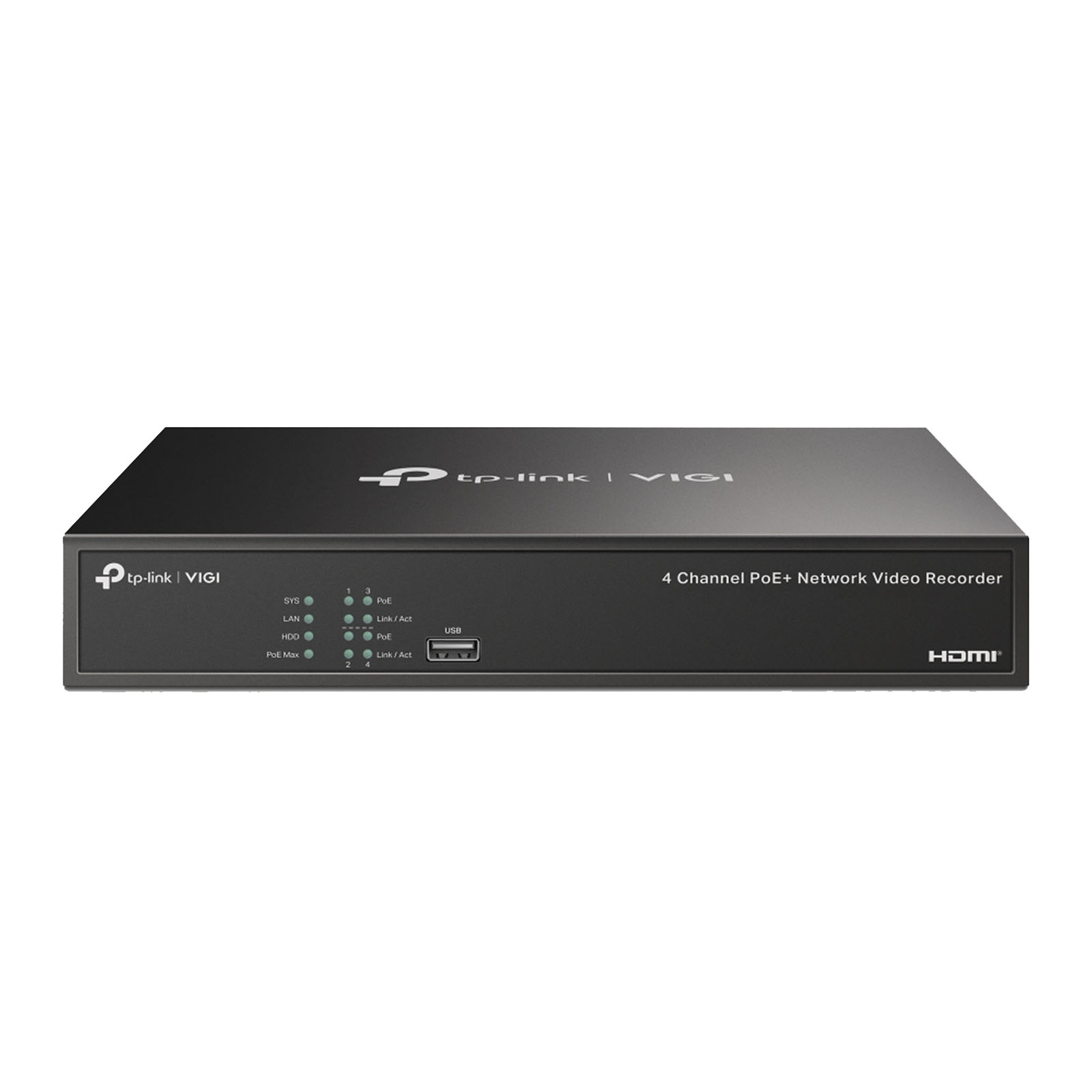

VIGI NVR1004H-4P TP-Link VIGI NVR IP network 4 channels PoE+ (2 channels 8MP / 4 channels 4MP), 80Mbps input bandwidth and 60 Mbps output. H265+ compression, maximum resolution 8MP - 2x USB 2.0, 1x RJ-45, 1Ch audio in/out, 1x HDMI, 1x VGA - supports 1 SATA HDD up to 10TB - Motion detection, abandoned object detection, vehicle and person detection, smart frame. Dimensions: 246.2 × 148.2 × 45 mm
3 Years Warranty
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>
VIGI NVR1004H-4P NVR NETWORK TP LINK VIGI 4 CHANNELS POE+ 8MP 4K HDMI

TP-Link VIGI 4MP IP network NVR 4 channels PoE+ - VIGI NVR1004H-4P
 Max Resolution 16MP - 8 channels PoE+ (2 channels 8MP / 4 channels 4MP) - H.265+ Compression - Supports 1 HDD up to 10TB - 80Mbps in 60Mbps out bandwidth
 2x USB 2.0, 1x RJ-45, 1 CG audio in/out, 1x HDMI, 1x VGA
 Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
 Remote Monitoring - 3 Years Warranty
PRODUCT DETAILS

|| Technical Specifications:
- Video Resolution: H.265+/H.265/H.264+/H.264
- 8 Channel PoE+ 8 Channel 2 Channel 8MP / 4 Channel 4MP / 8 Channel 2MP
- 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth
- Maximum resolution 16MP
- Ports: 2x USB 2.0, 1x RJ-45 bidirectional audio
- Supports 1 HDD up to 10TB
- Smart Detection - Two-way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame
- Remote monitoring
- 3 years warranty
DATA SHEET
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 60Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1.4 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| RECORD MANAGEMENT | |
| Record Mode |
 |
| Playback Mode |
 |
| Backup Mode |
 |
| Playback Function |
 |
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD 1 × 2TB HDD Pre-installed |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| ALARM | |
| General Alarm |
 |
| Anomaly Alarm |
 |
| Alarm Linkage |
 |
| GENERAL | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90%RH Non-Condensing |
| Package Contents |
 |
| Working Temperature | NVR: -10–55 °C Power adapter: 0–40 °C |
| Working Humidity | 10%~90%RH Non-Condensing |
| Dimensions (L x W x H) | 246.2 × 148.2 × 45 mm |
| External power supply | 53.5V DC/1.31A |
| Power Consumption | 4.25W (without disk) 13.10 W (With Disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |

|  |
 |
| Automatic initialization for quick setup
 | |
| 3 year warranty The following product is covered by a 3 year warranty | |
