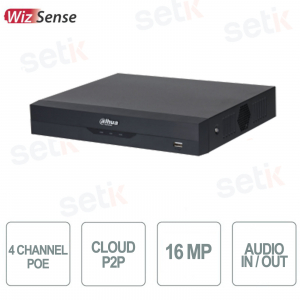

IP NVR Video Recorder for Surveillance. 4 PoE Channels up to 16Megapixel 4K ULTRA-HD in preview and playback, Max 80Mbps bandwidth, Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG , 1 HDMI, 1 VGA, Max 1HDD SATA 16TB, 2 USB Ports, 1 Input + 1 Audio Output, 1 RJ-45 10/100Mbps port. ONVIF Compatible, Video Analysis Support. WizSense Series. NVR4104HS-EI
DAHUA: DEBAJO DEL COSTE×
 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>
4 CHANNEL POE IP NVR 4K ULTRA-HD UP TO 16 MEGAPIXEL - H.265+ - VIDEO AUDIO ANALYSIS - DAHUA WIZSENSE SERIES

4 PoE channels 4K ULTRA-HD up to 16Megapixel - Max 80Mbps broadband - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
ONVIF® Compatible - Video Analytics Supported - 1 Audio Input + 1 Audio Output
Supports 16TB SATA HDD ( not included ) - 24 months warranty
| 4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
|---|---|
|

 |
Product details

|
 | This NVR supports video compression in H.264 and also in the new H.265 standard Optimized for Mobile |
|  | New ULTRA HD 4K Technology! Resolution even higher than FULL-HD! More detail available, greater sense of depth and realism. |
|  | 4 PoE channels with resolution up to 16Megapixel! Max 80Mbps bandwidth |
|  | Support ONVIF® Version 2.4 IP cameras |
|  | Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more (the functioning with the models proposed here must be verified on a case by case basis) |
|  | This video recorder supports some Video Analysis functions:  |
|  | Cloud function with Easy4IP
 |
|  | This NVR supports cameras with built-in IVS (Video Analysis Functions) |
|  | Multiple Network Monitoring: Web viewer, CMS(DSS/PSS) & DMSS(Best CCTV Software for Mobile)  |
|  | Compatible with all mobile devices: Android, iPhone,  |
|  | Equipped with: 1 SATA III Port, up to 16TB capacity. (Hard drive not included) WARNING: On NVR systems use specific audio/video disks. For more information, read our dedicated article . |
|  | Motion Function. Recording starts when the camera detects motion. |
|  | 1x RJ-45 (10/100Mbps) |
|  | This NVR features 2x USB Ports |
|  | This product features 1x HDMI port. |
|  | This DVR features 1 audio input and 1 audio output |
|  | Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP |
|  | This NVR has email sending. It also records and sends snapshots to external Cloud Storage (Dropbox, Skydrive) |
|  | This product is covered by a 24 month warranty. |
Technical data sheet
| Model: DVR | NVR4104HS-P-EI |
| SYSTEM | |
| Main Processor | Industrial grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web, Local GUI |
| TO THE | |
| AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Detection Performance of AI by Recorder (Number of Channels) | 4-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (16 targets/s) |
| Audio and Video | |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing |
| Resolution | 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12MP@30fps; 4-channel 8MP@30fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12MP@30fps; 3-channel 8MP@30fps; 3-channel 6MP@30fps; 4-channel 5MP@30fps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen display | Main Screen: 1/4 Sub Screen: 1/4 |
| Third Party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
| Standard Compression | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Multichannel Playback | Up to 4 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Smart Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Disk Interface | 1 SATA port. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| PoE Port | 4 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power Supply | 53 VDC, 1,226 A |
| Power Consumption | Total output of NVR is <10 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 36w="" the="" maximum="" single="" port="" 25="" 5w="" td=""> |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.88 kg (4.14 lb) |
| Product Dimensions | 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H) |
| Packaging Dimensions | 333 mm × 89 mm × 315 mm (13.11" × 3.50" × 12.40") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
