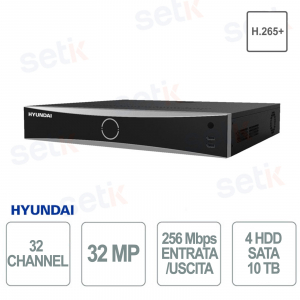

NVR Hyundai 32 Channel IP NVR Recorder 256Mbps-Up to 32MP

NVR Hyundai 32 Channel IP NVR Recorder 256Mbps-Up to 32MP
nuevo

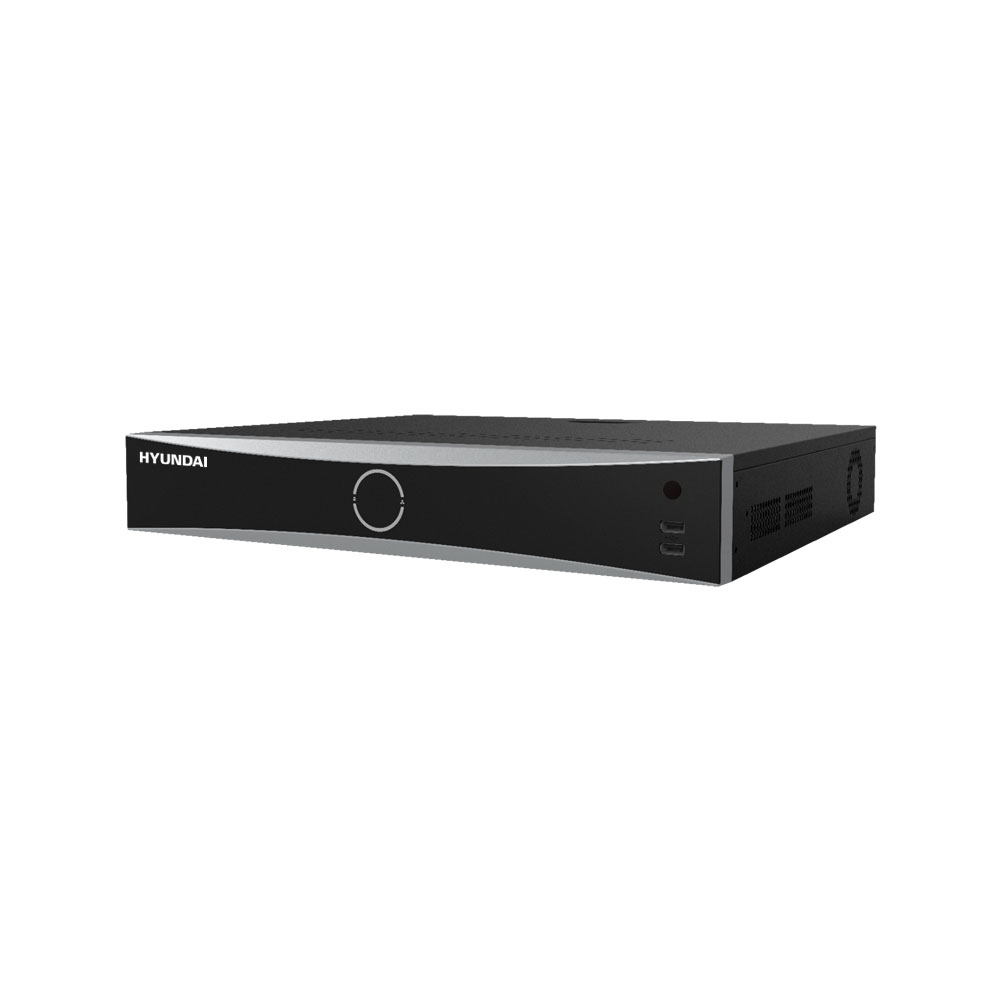

NVR Hyundai HYU-1084 32 Channel IP NVR with resolution up to 32 MP 32 Megapixel , 256 Mbps input-output bandwidth, H.266/H.265+ , 2x HDMI (4K) , 1 VGA (1080P) -1 BNC - 2 USB 2.0, 1 USB 3.0, 2x RS485, 1x RS232 - Two-way Audio and Alarm - P2P - max 4 HDD up to 10 TB (Not Included), 1x eSATA - Hyundai Security



referencia : HYU-1084

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Hyundai Security

HYUNDAI NVR 32 CHANNEL IP ONVIF® 4K UHD 32 MP RECORDER - 256 MBPS INPUT-OUTPUT

Hyundai Security
HYU-1084 - 32 Channel IP NVR ONVIF® - Hyundai 4K Resolution 32 MP 32 megapixel - Max 256 Mbps - Input/Output Compression up to H.265+ - 2 HDMI outputs (4K), 1 VGA output (1080P) and 1 BNC video output - 2 USB 2.0, 1 USB 3.0, 1 RS-232, 2 RS-485 - 2 RJ45 ports (10/100/1000M) - 1 eSATA Cloud P2P port - 4 SATA 3.5" Hard Disks (Max 10TB - not included) - 16 alarm inputs / 9 alarm outputs

Product details

HYU-1084
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of IP devices compatible with each other (DVR/cameras).

This NVR is ONVIF® compatible

H265+ Video Compressione
This NVR supports compression standards up to H.265+

H.265+: What are the benefits?

- Save up to 90% on bandwidth

- Reduce storage space

- Longer recording times on analog surveillance systems with the same storage space.

Standard di Video Compressione H.265+

Questo NVR presenta 32 canali

32 Channels
Recording up to 32 Megapixels!

Questo dvr supporta la funzione Cloud
  • Possibility of management and viewing from Smartphone "P2P installation", via Hyundai HYU-connect application (iOs and Android).
applicazione hyundai hyu-connect

  • Network configuration via free cloud (www.hdcvi.hyundai-security.es - Manageable by App. HYUVMS).

applicazione hyuvms

HD Hard Disk

Supports 4x SATA Audio / Video AV-GP SATA 3.5" Hard Disk, up to 10TB

It has 1x eSATA port



WARNING: On NVR systems use specific audio/video disks.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED



Video Content analsysis

SUPPORT SMART CAMERAS

It can connect to HYUNDAI intelligent IP cameras and realize VCA alarm recording, playback, and replay.

Supports special cameras, such as people counting cameras, ANPR (license plate recognition) cameras or fisheye cameras

SMART SEARCH

This feature allows you to quickly obtain various motion videos by simply drawing an area during playback. Very useful in case you encounter an emergency.

Funzione Smart Search

4K Risoluzione Ultra HD

ULTRA HD RESOLUTION

New ULTRA HD 4K Technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.

This NVR features:

2 HDMI video outputs (4K) and 1 VGA output (1080P)

Questo DVR presenta ingressi / uscite audio This NVR features 1 RCA Audio input + 1 RCA Audio output
Questo DVR presenta 8 ingressi allarme e 1 uscita allarme This NVR features 16 Inputs + 9 Alarm Outputs
Porta USB IN This NVR features 2xUSB 2.0, 1xUSB 3.0
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This NVR features 2 RJ45 ports (10/100/1000Mbps)
Porta RS485 per il controllo PTZ RS 485 for PTZ Controls (Remotely controllable cameras)
Porta RS232 RS 232 to communicate with PC and keyboard
Menu multilingua

This recorder features multilingual menus

Technical data sheet

Feature HYU-1084
32 IP camera inputs
Compression format H.265+, H.265, H.264+, H.264
Incoming bandwidth 256 Mbps
Outgoing bandwidth 256 Mbps
Video outputs 1 HDMI 1 4K output (simultaneous with VGA output)
1 HDMI 2 4K output (independent of VGA output)
1 VGA 1080P output
1 BNC video output
Main output division 1, 2, 4, 6, 6, 8, 8, 9, 9, 16, 25, 32, 36
Auxiliary output split 1, 2, 4, 6, 6, 8, 9, 9, 16
Bidirectional audio 1 RCA input / 1 RCA output
Recording resolution 32MP, 24MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
AI-enabled decoding capability 20 1080P channels at 30fps
AI disabled decoding capability 32 channels 1080P at 30fps
Artificial Intelligence from NVR Facial recognition: 4 channels, up to 2MP, up to 16 libraries, up to 50,000 total facial images
Perimeter protection: 4 channels, up to 2MP, 12 rules, video analytics for person and vehicle recognition
Motion detection 2.0: 32 channels, person/vehicle classification
Simultaneous playback 16 channels
Alarm 16 in/ 9 out
Supports 4 SATA HDD up to 10TB (HDD not included), 1 eSATA port
Motion Detection 2.0: Deep learning based motion detection 2.0 can classify people and vehicles and minimize false alarms caused by lights or objects such as leaves.
Smart search
Network interface with 2 auto-adaptive RJ45 (10/100/1000M) Ethernet ports
Network protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Onvif (S/G), SDK, ISAPI support
Up to 128 remote connections
Web browser support
Connections 2 USB 2.0, 1 USB 3.0, 2 RS485 (half-duplex), 1 RS232
Power supply 100V~240V AC, 50/60Hz
Power consumption ≤30W (without HDD)
power supply output 12V
Operating temperature -10°C ~ +55°C
Relative humidity 10~90%.
Dimensions 445 (W) x 75 (H) x 391 mm
Weight ≤3.6kg
Desktop or 1.5U rackmount installation

Further details

No additional details

Download

Download the English Brochure (not available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
