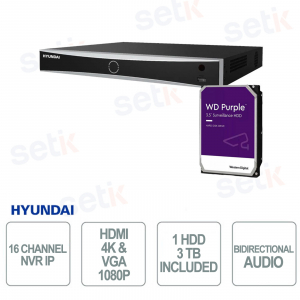

HYU-1064-3TB | 16-CHANNEL IP NVR RECORDER - MAXIMUM RESOLUTION 8MP - 4 ALARM INPUTS - 1 3TB HDD INCLUDED


Dahua

The HYU-1064-3TB is a 16-channel professional IP NVR from HYUNDAI, designed to ensure maximum security thanks to integrated artificial intelligence, high recording capacity, and compatibility with resolutions up to 12MP. It includes a 3TB HDD (expandable up to 10TB), offers perimeter protection, facial recognition, and advanced deep learning-based motion detection, drastically reducing false alarms. 4K HDMI and 1080P VGA video output allow for clear viewing, while two-way audio improves real-time communication.

Main specifications:

- 16 IP channels with recording up to 12MP

- AI: face detection, perimeter protection, motion detection 2.0

- HDMI 4K + VGA 1080P outputs

- RCA two-way audio

- 4 alarm inputs / 1 output

- 3TB HDD included, support up to 10TB

Further details

✅ Number of channels:
It supports 16 IP channels , allowing the simultaneous management of numerous network cameras with synchronized viewing and recording.
✅ IP Technology :
Fully IP, with Gigabit RJ45 interface and compatibility with standard network protocols (TCP/IP, RTSP, Onvif, etc.), for easy integration into existing networks.
✅ Resolution:
It supports recording up to 12MP , ensuring high video quality. With AI enabled, it can handle up to 8 channels of 1080P or 2 channels of 8MP at 30fps .
✅ HDMI and VGA outputs :
It features 4K HDMI output and 1080P VGA output , both independent, for connecting high-resolution monitors and screens.
✅ Two-way audio:
Includes 1 RCA input and 1 RCA output , for real-time audio communication, useful in contexts such as reception, intercom or access control .
✅ Motion Detection 2.0:
Based on deep learning , motion detection classifies people and vehicles, reducing false alarms caused by irrelevant movements such as leaves or lights.
✅ Alarm:
It has 4 alarm inputs and 1 output , useful for connecting external sensors (doors, windows, PIR) and activating automatic actions in the event of an event .
✅ Includes 1 x 3TB HDD :
Includes a 3TB hard drive optimized for video surveillance, with support for two drives up to 10TB total , ideal for long-term recording and historical archiving.

Technical data sheet

HYU-1064-3TB
Specifications
16 IP camera inputs
H.265+, H.265, H.264+ and H.264 compression formats
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 160 Mbps
Simultaneous VGA 1080P and HDMI 4K video outputs
Two-way audio: 1 RCA input / 1 RCA output
Recording Resolution: 12MP, 8MP, 6MP, 5MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Decoding capability: With AI enabled: 8 channels 1080P (30 fps), 4 channels 4MP (30 fps), 2 channels 8MP (30 fps), 1 channel 12MP (30 fps)
Decoding capacity with AI disabled: 12 channels 1080P (30 fps), 6 channels 4MP (30 fps), 3 channels 8MP (30 fps), 2 channels 12MP (30 fps)
NVR Artificial Intelligence:
  • Face recognition: 1 channel, up to 8MP, up to 16 libraries, up to 20,000 face images in total
  • Perimeter protection: 2 channels, up to 4MP, 12 rules, video analytics for people and vehicle recognition
  • Motion Detection 2.0: 16 channels, people/vehicle classification
16-channel synchronized playback
4 alarm inputs / 1 alarm output
Supports 2 SATA HDDs up to 10TB (includes a special 3TB HDD for video surveillance)
Motion Detection: The deep learning-based Motion Detection 2.0 function can classify people and vehicles and minimize false alarms caused by lights or objects such as leaves.
Smart search
Self-adaptive RJ45 Ethernet (10/100/1000M) network interface
Network protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Up to 128 remote connections
Connections: 2 USB 2.0
Power supply: 12V DC, 3.3A
Power consumption: ≤15W (without HDD)
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 385 (W) x 52 (H) x 315 mm
Weight: ≤1 kg
Tabletop or 1U rack installation
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
