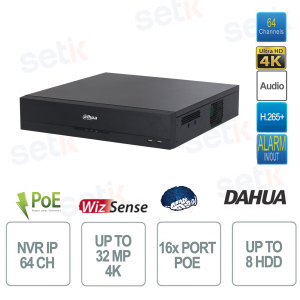

Dahua NVR5864-16P-EI2: 64-Channel AI Network Video Recorder with PoE

Dahua NVR5864-16P-EI2: 64-Channel AI Network Video Recorder with PoE

 
HDD space calculation
BEST PRICE -56% nuevo

The NVR5864-16P-EI2 is a 64-channel network video recorder with 16 PoE ports, designed to ensure advanced performance and next-generation AI security. Thanks to a powerful processor and support for resolutions up to 32 MP and 8K HDMI output, it ensures smooth streaming and precise analysis. It integrates deep learning algorithms with functions such as facial detection, license plate recognition, people counting and perimeter protection, reducing false alarms. AcuPick technology enables fast and accurate searches through large volumes of data, while the NVR NEXT modular GUI simplifies use and improves efficiency. Compatible with third-party systems via ONVIF , it offers expansion up to 8 20TB HDDs and intelligent security features such as PPE detection (helmets, vests, masks). A scalable and professional solution for video surveillance of large facilities. Dahua

Technical Data Sheet

referencia : NVR5864-16P-EI2

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR5864-16P-EI2 | NVR 64 IP CHANNELS ONVIF® POE DAHUA - 4K ULTRA HD - 16 POE CHANNELS - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The NVR5864-16P-EI2 is a 64-channel AI network video recorder with 16 PoE ports, ideal for professional surveillance systems. Thanks to a powerful processor and support for resolutions up to 32 MP with 8K HDMI output, it ensures smooth streaming and efficient data management. It integrates deep learning algorithms for advanced features such as facial recognition, vehicle and person analysis, perimeter protection, and false alarm reduction. AcuPick technology enables quick searches through huge video volumes, while the NVR NEXT modular interface simplifies use and improves efficiency. Compatible with third-party devices via ONVIF, it supports up to eight 20TB HDDs and intelligent safety features such as PPE detection (helmets, vests, masks).

Main specifications:

- 64 IP channels with 16 built-in PoE ports

- Supports resolutions up to 32MP and 8K HDMI output

- Advanced AI: face, vehicle, person and perimeter recognition

- AcuPick technology for fast and precise search

- ONVIF compatibility and support up to 8 x 20TB HDDs

Further details

✅ Resolution:
6MP CMOS sensor (3288×1850 px) that guarantees sharp and detailed images even in low light conditions, with 120dB WDR support to manage strong contrasts.
✅ Number of Channels :
It supports up to 64 IP channels , allowing you to manage large video surveillance systems in a single system.
✅ Maximum resolution:
Compatible with cameras up to 32MP and 8K HDMI video output, ensuring sharp and detailed images.

✅ PoE ports:
It has 16 built-in PoE (IEEE 802.3 af/at) ports , making it easy to power and connect IP cameras.
✅ WizSense Technology:
It integrates a dedicated AI chip with deep learning algorithms, optimized for people and vehicle recognition, reducing false alarms.
✅ Artificial Intelligence:
Advanced features such as facial recognition, ANPR, people counting, heat maps, vehicle analysis, PPE detection (helmets, masks, vests).
✅ Perimeter Protection:
Up to 8 channels with AI by Recorder and all channels with AI by Camera , for precise and reliable perimeter protection.
✅ Face Detection:
It recognizes facial attributes (age, gender, glasses, beard, masks) and can analyze up to 32 targets/s across all channels.
✅ Face Recognition :
It supports up to 20 facial databases with 30,000 images , enabling accurate recognition for advanced security applications.
✅ SMD (Smart Motion Detection):
With intelligent filtering to distinguish people and vehicles, reducing false alarms generated by rain, leaves or changes in light.

✅ Video Metadata:
Extracts up to 22 attributes from videos, including features of people, vehicles, and motorcycles, useful for research and forensic analysis.
✅ Audio and Video:
It supports up to 64 channels , Smart H.265+ compression, two HDMI and two VGA outputs, with simultaneous multi-screen playback of up to 64 views.
✅ Alarm:
It manages 16 inputs and 8 alarm outputs , with intelligent functions for events such as intrusions, network anomalies, environmental changes and audio alarms.
✅ Disk capacity:
Up to 8 SATA HDDs of 20TB each , for up to 160TB of storage, with RAID 0/1/5/6/10 support and backup via USB or network.

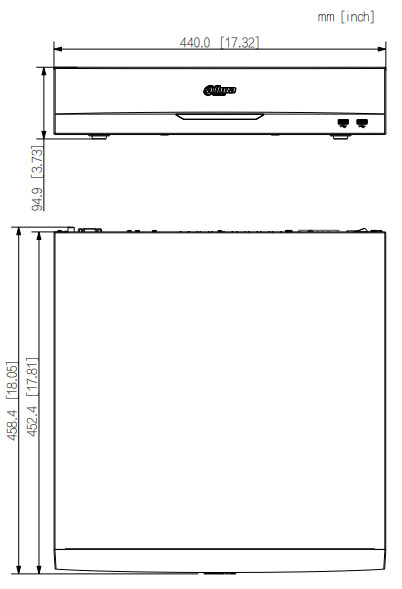

NVR5864-16P-EI2 dimensions

Technical data sheet

NVR5864-16P-EI2

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

4 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

Max. 32-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

4 channels, 22 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

People Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

64 channels

Network Bandwidth

AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 40-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps

Video Output

2 VGA, 2 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2

Multi-screen Display

Main screen: 1/4/8/9/16/25/36/64
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

RAID

RAID 0/1/5/6/10

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cybersecurity exception

Intelligent Alarm

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

2-channel RCA

Alarm Input

16 channels

Alarm Output

8 channels (1-channel 12V 1A output)

HDD Interface

8 SATA ports, each disk can contain up to 20TB. This limit varies depending on the environment temperature.

eSATA

1

RS-232

1

RS-485

1

RS-422

1

USB

4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)

HDMI

2

VGA

2

Network Port

1(10/100/1000 Mbps Ethernet port, RJ-45)

PoE Port

16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE

General

Power Supply

100–240 VAC, 50-60 Hz

Power Consumption

Total output of NVR is ≤ 13 W (without HDD) Total output power of PoE is 150 W, the maximum output power of a single port is 25.5 W

Net Weight

6.63 kg (14.62 lb)

Gross Weight

9.22 kg (20.33 lb)

Product Dimensions

440.0 mm × 458.4 mm × 94.9 mm (17.32" × 18.05" × 3.73") (W × D × H)

Packaging Dimensions

570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
