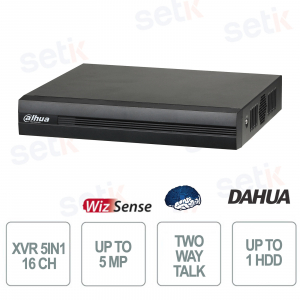

Dahua XVR1B16H-I: 16-Channel AI WizSense Video Recorder with SMD Plus and Smart H.265+

Dahua XVR1B16H-I: 16-Channel AI WizSense Video Recorder with SMD Plus and Smart H.265+
-56% nuevo

The XVR1B16H-I is a 16-channel digital video recorder with WizSense AI technology, designed to ensure advanced security through intelligent person and vehicle detection. It supports HDCVI, AHD, TVI, CVBS, and IP inputs for up to 24 channels and offers Smart H.265+ compression to reduce bandwidth and storage consumption without compromising quality. The SMD Plus function filters false alarms and AI Coding optimizes performance in complex scenarios. Compact and reliable, it is ideal for indoor and outdoor installations, ensuring maximum efficiency, privacy, and continuous protection. Dahua

Technical Data Sheet

referencia : XVR1B16H-I

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

XVR1B16H-I | WIZSENSE 16CH PENTA-BRID 5MP VALUE/1080P COOPER 1U 1HDD DIGITAL VIDEO RECORDER


Dahua

The Dahua XVR1B16H-I digital video recorder is part of the WizSense series with AI technology, designed to ensure maximum security and reduce false alarms through intelligent human and vehicle detection. Compatible with various video standards and featuring Smart H.265+ compression, it ensures high performance, space savings, and optimal image quality for professional installations.

Main specifications:

- 16 analog channels or 24 IP up to 6MP

- SMD Plus technology to reduce false alarms

- AI coding with up to 50% storage savings

- Support HDCVI, AHD, TVI, CVBS and IP

- Input bandwidth up to 128 Mbps

- Privacy masking function with irregular areas

Further details

Number of Channels:
It supports up to 16 analog channels and up to 24 IP channels , ensuring the management of multiple devices in a single system.
Maximum resolution :
Compatible with video signals up to 5MP , with HDMI output up to 4K (3840x2160) for sharp, detailed images.
WizSense Technology:
Powered by AI chips and deep learning algorithms, it offers advanced features such as intelligent recognition and classification of people and vehicles for more precise surveillance.
SMD (Smart Motion Detection):
Intelligent detection function that dramatically reduces false alarms caused by irrelevant movements (leaves, rain, animals, etc.).
Audio and Video:
16-camera BNC input with multi-camera support (HDCVI, AHD, TVI, CVBS), Smart H.265+/H.265 video compression and G.711 audio; includes HDMI and VGA output, plus two-way talk support.
Alarm:
It integrates advanced alarm functions with motion detection, PIR, network anomalies, disk failure, video loss and tampering, as well as notifications via email, snapshot and buzzer.
Disk capacity:
It supports 1 SATA HDD up to 16TB , providing ample storage space for long-term recording.

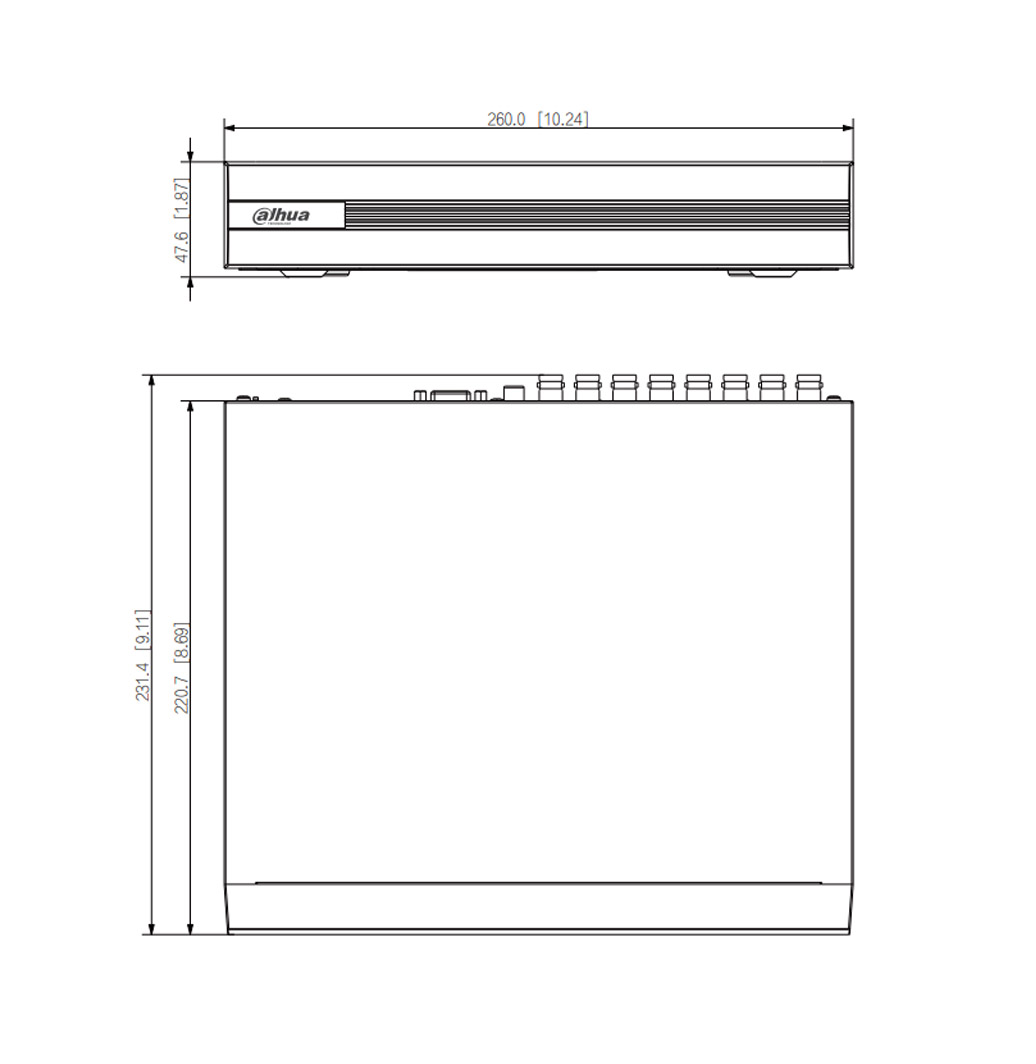

XVR1B16H-I dimensions

Technical data sheet

260.0 mm × 231.4 mm × 47.6 mm (10.24" × 9.11" × 1.87") (W × D × H)
XVR1B16H-I

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

SMD Plus

SMD Plus by Recorder

16 channels:
Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio and Video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 24 channels of IPC access
8 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capability

Main stream:
5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps)
5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1fps–15fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps)
Sub stream: D1/CIF@(1 fps–15 fps)

Dual-stream

Packaging Dimensions

333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
FCC: 47 CFR Part 15, Subpart B

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
