The XVR1B16-I is a 16-channel digital video recorder from the WizSense series, designed with AI chip and deep learning algorithm to ensure accurate detection of people and vehicles, reducing false alarms. It supports HDCVI, AHD, TVI, CVBS and IP inputs up to 18 channels, with a maximum resolution of 1080p and Full HD HDMI output. The SMD Plus function allows for precise video surveillance, while Smart H.265+ compression optimizes storage space. Thanks to Smart Dual Light and customizable audio, it offers flexible security solutions. With disk capacity up to 16 TB , it is a reliable and affordable choice for professional indoor and outdoor installations. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

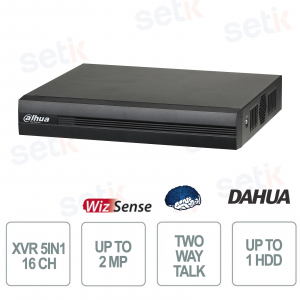

XVR1B16-I | WIZSENSE 16CH PENTA-BRID 1080N/720P COOPER 1U 1HDD DIGITAL VIDEO RECORDER

The Dahua XVR1B16-I is a 16-channel digital video recorder from the WizSense series, designed with AI chips and deep learning algorithms to ensure accurate detection of people and vehicles, drastically reducing false alarms. It supports HDCVI, AHD, TVI, CVBS and IP inputs for up to 18 channels with a maximum resolution of 1080p, integrates the SMD Plus function for intelligent motion control and Smart H.265+ compression to save space and bandwidth. Thanks to Smart Dual Light and customizable audio, it offers flexibility and reliability for any video surveillance context, with disk capacity of up to 16 TB for long-term recording.
Main specifications:
- 16 video channels and up to 18 IPs supported
- Resolution up to 1080p with HDMI/VGA output
- WizSense AI technology with intelligent detection
- SMD Plus function for false alarm reduction
- Smart H.265+ compression to optimize storage
- Disk support up to 16 TB
Further details

Technical data sheet
XVR1B16-I | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 1080p@25/30fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 18 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.42 kg (3.13 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

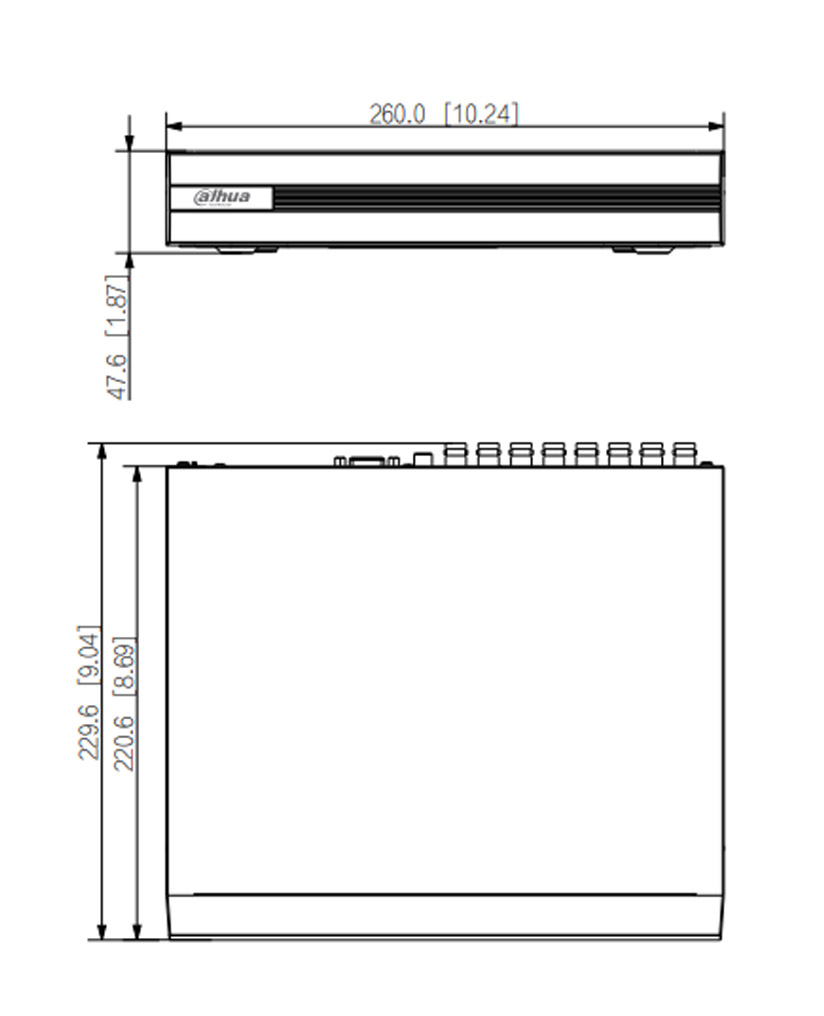

Product Dimensions |
260.0 mm × 229.6 mm × 47.6 mm (10.24" × 9.04" × 1.87") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +45 °C (+14 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: IEC 62368-1:2014 |
