Dahua XVR4104HS-I: 4-Channel AI WizSense DVR with SMD Plus and H.265+

Dahua XVR4104HS-I: 4-Channel AI WizSense DVR with SMD Plus and H.265+
-56% nuevo

The XVR4104HS-I is a 4-channel digital video recorder from the WizSense series, designed with AI chips and deep learning algorithms for intelligent detection of people and vehicles. Thanks to the SMD Plus function, it reduces false alarms caused by irrelevant movements, while Smart H.265+ compression guarantees significant space and bandwidth savings. It supports HDCVI, AHD, TVI, CVBS and IP inputs up to 5 channels with a maximum resolution of 1080p, offering clear and reliable images. With advanced functions such as Smart Dual Light , customizable audio and disk capacity up to 16 TB, it represents the ideal solution for safe and efficient video surveillance, suitable for both domestic and professional environments. Dahua

Technical Data Sheet

referencia : XVR4104HS-I

brand : Dahua

EAN: 6923172507518

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

XVR4104HS-I | WIZSENSE 4CH PENTA-BRIDGE 1080N/720P COMPACT 1U 1HDD DIGITAL VIDEO RECORDER


Dahua

The Dahua XVR4104HS-I is a 4-channel digital video recorder from the WizSense series, equipped with an AI chip and deep learning algorithms for intelligent person and vehicle detection, with false alarm reduction thanks to the SMD Plus function. It supports HDCVI, AHD, TVI, CVBS and IP inputs up to 5 channels with a maximum resolution of 1080p, ensuring clear and stable images. Smart H.265+ compression ensures bandwidth and storage savings, while advanced features such as Smart Dual Light and customizable audio improve security management. With disk capacity up to 16 TB, it represents a complete, efficient and versatile solution for home and professional installations.

Main specifications:

- Number of channels: 4 analog + up to 5 IP

- Maximum resolution: 1080p Full HD

- Technology: WizSense AI with deep learning

- SMD Plus: reduction of false alarms

- Audio & Video: HDMI/VGA support, Smart H.265+ compression

- Alarm: motion detection, PIR, anomalies and smart notifications

- Disk capacity: up to 16 TB

Further details

Number of Channels:
It supports 4 analog channels and up to 5 IP channels , for flexible and customized camera management.
Maximum resolution :
Compatible with signals up to 1080p Full HD , with HDMI and VGA outputs for clear, detailed images.
WizSense Technology:
Based on AI chips and deep learning, for accurate recognition of people and vehicles.
SMD (Smart Motion Detection):
Reduces false alarms caused by rain, animals or moving leaves by focusing only on relevant events.
Audio and Video:
Multiple video inputs (HDCVI, AHD, TVI, CVBS, IP), Smart H.265+ compression for bandwidth and space savings, two-way audio for greater interactivity.
Alarm:
Advanced motion detection, PIR alarms, network anomalies and video loss, with smart notifications and connection to sirens, buzzers or email.
Disk capacity:
One SATA port with support for up to 16TB , ideal for long-term recording without quality loss.

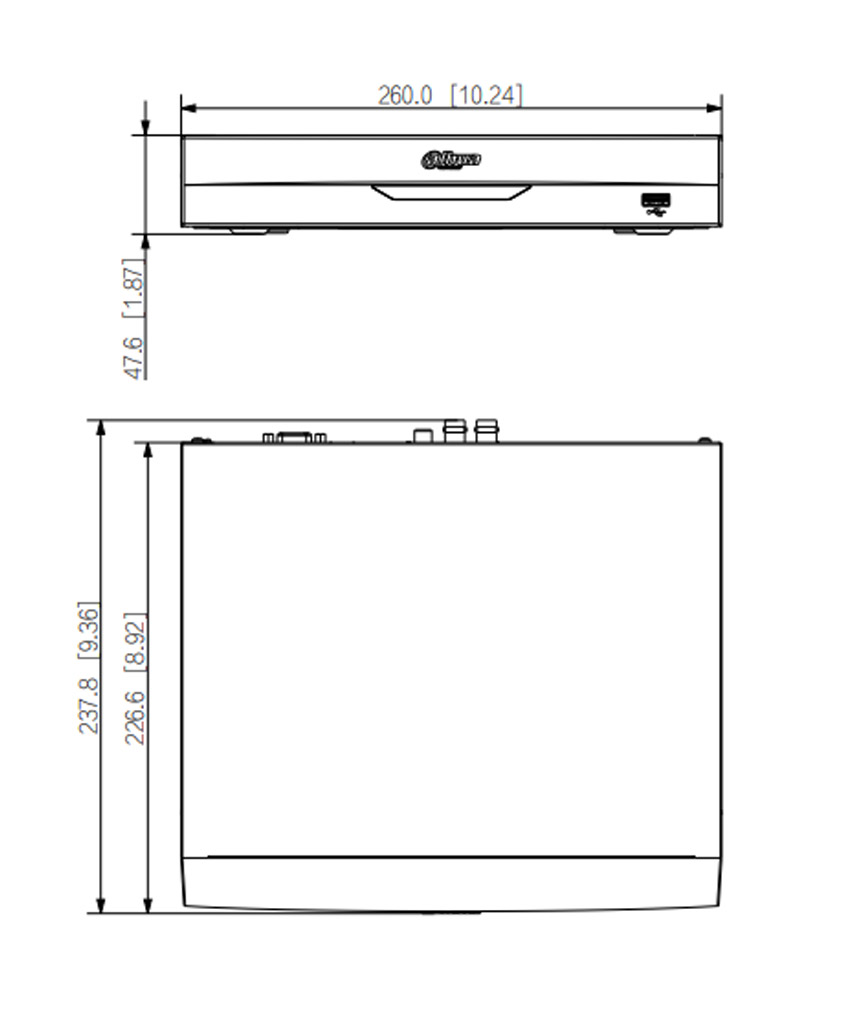

XVR4104HS-I dimensions

Technical data sheet

XVR4104HS-I

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 1080p@25/30fps; 720p@25/30fps.
3. AHD: 1080p@25/30fps; 720p@25/30 fps.

IP Camera Input

Up to 5 channels of IPC access
1 IP channel by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capability

Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–15 fps)

Product Dimensions

260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)

Packaging Dimensions

333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
FCC: 47 CFR Part 15, Subpart B

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
