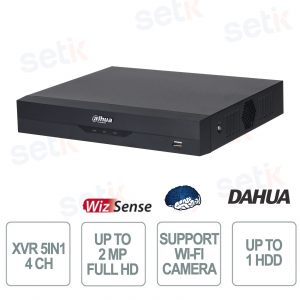

XVR4104HS-I/T | WIZSENSE 4CH PENTA-BRIDGE 1080N/720P COMPACT 1U 1HDD DIGITAL VIDEO RECORDER


Dahua

The Dahua XVR4104HS-I/T is a 4-channel digital video recorder from the WizSense series, designed with AI chips and deep learning algorithms to ensure intelligent detection and reduce false alarms thanks to the SMD Plus function. It supports various video formats (HDCVI, AHD, TVI, CVBS and IP) with resolutions up to 1080p, integrates Smart H.265+ compression to optimize bandwidth and storage and allows the use of advanced functions such as two-way audio and Smart Dual Light. Furthermore, it offers the possibility of connecting Wi-Fi cameras, increasing installation flexibility for domestic and professional scenarios. With disk capacities of up to 16 TB, it represents a reliable and complete solution for modern video surveillance.

Main specifications:

- Number of channels: 4 analog + up to 5 IP

- Maximum resolution: 1080p Full HD

- Technology: WizSense AI with deep learning

- SMD Plus: advanced false alarm reduction

- Audio & Video: HDMI/VGA support, Smart H.265+ compression

- Alarm: motion detection, PIR and customizable smart notifications

- Disk capacity: up to 16 TB

- Supports Wi-Fi camera connection

Further details

Number of Channels:
It supports 4 analog channels and up to 5 IP channels , offering flexible and scalable camera management.
Maximum resolution :
Compatible with signals up to 1080p Full HD , with HDMI and VGA outputs for sharp, detailed images.
WizSense Technology:
Based on deep learning algorithms to recognize people and vehicles, improving the reliability of video surveillance.
Wi-Fi Camera Support :
Allows access and management of wireless cameras, increasing versatility in installations.
Irregular Black Block Masking:
Function that allows you to obscure irregular areas of the video, improving privacy.
SMD Plus:
Advanced Smart Motion Detection with intelligent filtering, reduces false alarms caused by leaves, animals or weather conditions.
Audio and Video:
Multiple HDCVI, AHD, TVI, CVBS and IP inputs, Smart H.265+ video compression for space and bandwidth savings, and G.711 audio support.
Two-way Talk:
Two-way communication on 4 channels via coaxial and network, ideal for immediate interaction with the system.
Alarm:
Includes motion detection, PIR alarms, network anomalies and video loss, with smart management of notifications, snapshots and buzzer.
Disk capacity:
It supports up to 16TB SATA disk, providing ample storage space for long-term recording.
XVR4104HS-I-T dimensions

Technical data sheet

XVR4104HS-I/T

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

SMD

SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

5 channels

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 1080p@25/30fps; 720p@25/30fps.
3. AHD: 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 5 channels of IPC access
1 IP channel by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps

Encoding Capability

Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–15 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–4096 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
HDMI: 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection

Recording Playback

1/4

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

SMD Plus

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA
4-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Coaxial two-way talk: 4-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1(10/100Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 1.5 A

Power Consumption

Net Weight

0.89 kg (1.96 lb)

Gross Weight

1.46 kg (3.22 lb)

Product Dimensions

260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)

Packaging Dimensions

344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
FCC: 47 CFR Part 15, Subpart B

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
