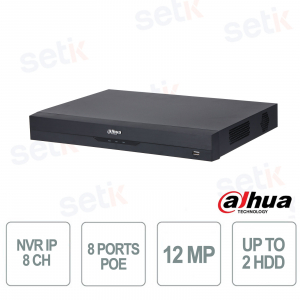

NVR2208-8P-I2 WizSense | 8-Channel 4K NVR with AI and 8 PoE Ports - Dahua

NVR2208-8P-I2 WizSense | 8-Channel 4K NVR with AI and 8 PoE Ports - Dahua
BEST PRICE -56% nuevo

The NVR2208-8P-I2 is an 8-channel network video recorder with 8 PoE ports and support for up to 2 HDDs, designed for professional security systems. Thanks to the Smart H.265+ codec and decoding capacity of up to 6×1080p@30fps, it ensures smooth and optimized recordings. It integrates AI functions such as facial detection and recognition, perimeter protection, and SMD Plus to reduce false alarms. With 4K HDMI and VGA outputs, two-way audio, and ONVIF compatibility, it ensures maximum integration flexibility. The compact design with smart fan ensures silent cooling and long life, ideal for advanced video surveillance. Dahua

Technical Data Sheet

referencia : NVR2208-8P-I2

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR2208-8P-I2 | DAHUA 8-CHANNEL IP ONVIF® NVR - H.265+ - UP TO 12 MEGAPIXELS - 8 POE CHANNELS


Dahua

The Dahua NVR2208-8P-I2 WizSense is an 8-channel network video recorder with 8 PoE ports and support for up to 2 HDDs, ideal for advanced video surveillance systems. It integrates Artificial Intelligence functions for facial recognition, perimeter protection, and false alarm reduction thanks to SMD Plus technology. It supports resolutions up to 12MP, Smart H.265+ codec, and guarantees high decoding capacity for smooth and detailed images. With HDMI outputs up to 4K, VGA, and ONVIF compatibility, it ensures maximum integration with third-party devices.

Main specifications:

- 8 channels with 8 built-in PoE ports

- Supports resolutions up to 12MP (4K Ultra HD)

- Built-in AI: facial recognition, perimeter protection, SMD Plus

- ONVIF compatibility and third-party camera support

- 4K HDMI and VGA video outputs, two-way audio

- Support up to 2 SATA HDDs (up to 10TB each)

Further details

Number of Channels :
It supports up to 8 channels with 8 PoE ports , allowing direct connection of IP cameras without additional power supplies.
Resolution :
Compatible with recordings up to 12MP (4K Ultra HD) , it ensures clear and detailed images even in complex scenarios.
Face Detection:
Thanks to deep learning algorithms, it detects and optimizes faces up to 12 images per second , ensuring maximum identification accuracy.

Face Recognition:
It supports up to 10 databases and 5,000 images , with recognition capabilities of up to 4 faces per second for fast and reliable identifications.
Perimeter Protection:
Automatically filters out false alarms caused by animals, leaves, or changes in light, improving the accuracy of alerts.
SMD Plus:
Intelligent detection technology that distinguishes people and vehicles, reducing false alarms and improving site protection
Network:
It offers bandwidth up to 144 Mbps in input and output , ONVIF compatibility and remote access via app for Android and iOS, ensuring flexibility and integration with third-party devices.

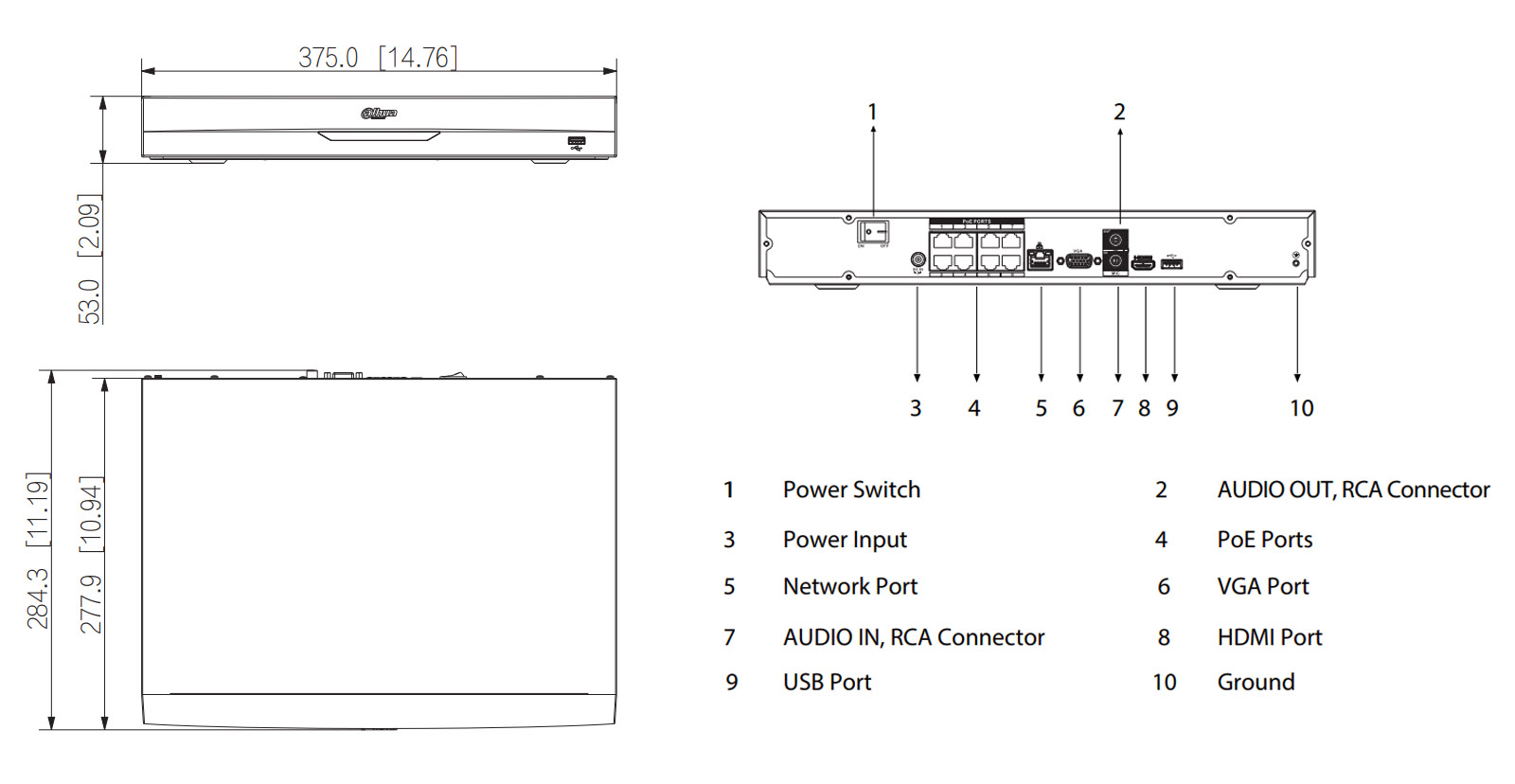

NVR2208-8P-I2 dimensions

Technical data sheet

NVR2208-8P-I2

System

Main Processor

Industrial-grade embedded processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Camera Face detection; face recognition; perimeter protection; SMD Plus
AI by Device Face detection; face recognition; perimeter protection; SMD Plus
Perimeter Protection
Perimeter Performance AI by Device(Number of Channels) 1
Perimeter Performance of AI by Camera (Number of Channels) 4
Face Detection
Face Attributes 6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Face Detection Performance of AI by Device (1080P) (Number of Channels) 1 (up to 12 face images/second)
Face Detection Performance of AI by Camera (Number of Channels) 5
SMD Plus
SMD Plus by Device 4
SMD Plus by Camera 6-channel SMD Plus (AI by camera): Detects tripwire and intrusion of human or vehicle; filters false alarms caused by leaves, raindrops and change of brightness away

Video

Access Channel

8 channels

Network Bandwidth

AI off: Access: 144 Mbps; Storage: 144Mbps; Forward: 72Mbps
AI on: Access: 72 Mbps; Storage: 72Mbps; Forward: 36Mbps

Resolution

12MP, 8MP; 5MP; 4MP; 3MP; 1080p; 720p; Q1

Decoding Capability

AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps

Video Output

1 VGA/1 HDMI (simultaneous)

Multi-screen Display

1/4/8/9 views

Third Party Camera Access

Onvif

Compression

Video

Smart H.265+; H.265; Smart H.264+; H.264

Audio

PCM; G711A; G711U; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

Mobile Phone Access

Android; iOS

Interoperability

ONVIF (profile T; profile S; profile G); CGI; SDK

Browser

Chrome; IE9 or later; Firefox

Recording Playback

Multi-channel Playback

Up to 8 channels

Record Mode

Manual record; alarm recordings; motion detection recordings; scheduled recordings

Storage

Local HDD and network

Backup

USB device

Playback Mode

1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off

Alarm

General Alarm

Motion detection, privacy masking, video loss, PIR alarm, IPC alarm

Anomaly Alarm

Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; cyber security exception

Intelligent Alarm

Face detection; face recognition; perimeter protection (intrusion and tripwire); IVS; SMD Plus

Alarm Linkage

Recordings; snapshot; buzzers; log; presets; e-mail; tours

External Port

HDD

2 SATA ports, up to 10 TB. The maximum HDD capacity varies with environment temperature

USB

1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI

1 (max. resolution: 4K)

VGA

1

Network

1 × RJ-45, 10/100/1000 Mbps

PoE

8 × PoE ports, 10/100 Mbps

RCA Input

1

RCA Output

1

General

Power Supply

54 V DC, 2.22 A

Power Consumption

Total output of NVR is ≤ 10W (without HDD)Total output power of PoE is 80W, the maximum output power of a single port is 25.5W

Net Weight

1.72 kg (3.79 lb)

Gross Weight

3.07 kg (6.77 lb)

Product Dimensions

375 mm × 284.3 mm × 53 mm (14.76" × 11.19" × 2.09") (W × L × H)

Packaging Dimensions

141 mm × 433 mm × 366 mm (5.55" × 17.05" × 14.41") (W × L × H)

Operating Temperature

-10°C to 45°C (+34°F to +113°F)

Storage Temperature

0°C to 40°C (+32°F to +104°F)

Operating Humidity

10%–93%

Storage Humidity

30%–85%

Operating Altitude

3,000 m (9,842.52 ft)

Installation

Desktop

Certifications

FCC:47 CFR FCC Part15,SubpartB,Class A
CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014
CE-LVD:EN 62368-1:2014+A11:2017

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
