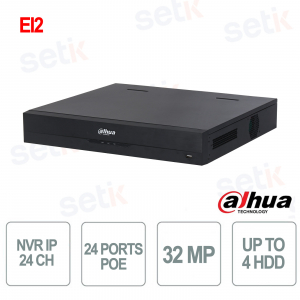

NVR5424-24P-EI2 | DAHUA 24-CHANNEL IP ONVIF® NVR - H.265+ - UP TO 32 MEGAPIXELS - 24 POE CHANNELS

The Dahua NVR5424-24P-EI2 WizSense is a 24-channel network video recorder with 24 built-in PoE ports, designed for professional IP surveillance systems. Equipped with an industrial processor and AI chip with deep learning algorithms, it provides advanced video analytics, false alarm reduction, and efficient image management up to 32MP, with HDMI output up to 8K.
Main specifications:
- 24 IP channels with 24 PoE ports for power supply and direct connection of cameras
- Up to 32MP resolution with advanced decoding and 8K HDMI video output
- Face Detection & Face Recognition with a database of up to 30,000 faces and multi-channel recognition
- Perimeter Protection & SMD Plus to reduce false alarms by distinguishing people and vehicles
- AcuPick for fast and precise target searches on large volumes of video data
- Additional intelligent functions: people counting, ANPR, heat map, metadata analysis and PPE detection
- High-performance network with bandwidth up to 448 Mbps and ONVIF compatibility with third-party cameras
Further details
✅ Face Recognition:

Technical data sheet
NVR5424-24P-EI2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade embedded processor |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TO THE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Recorder | Face detection; face recognition; perimeter protection; SMD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat map | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick Performance of AI by Recorder (1080P) (Number of Channels) | 4 channels | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick Performance of AI by Camera (1080P) (Number of Channels) | Max. 24-channel, 1 combined event per channel/s | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by recorder (Number of Channels) | 8 channels, 10 IVS rules for each channel | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance of AI by Camera (Number of Channels) | All channels (24 targets/s) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes | Gender; age group; glasses; expressions; face mask; beard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels) | 4 channels (up to 12 face images/s each channel) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Camera (Number of Channels) | All channels (24 targets/s) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity | Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s 2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Camera (Number of Channels) | All channels (24 targets/s) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Camera | All channels (48 targets/s) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metadata Performance of AI by Recorder (Number of Channels) | 4 channels, 22 attributes extraction. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metadata Performance of AI by Camera (Number of Channels) | All channels (16 targets/s) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle License Plate Comparison | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANPR by Camera (Number of Channels) | All channels (8 targets/s) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
24 channels |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
32MP; 24MP; 16MP; 12 MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability |
AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
2 VGA, 2 HDMI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
Main screen: 1/4/8/9/16/25 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Party Camera Access |
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
G.711a; G.711u; PCM; G726 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
Android; iOS |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE; Safari; Edge; Firefox |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-channel Playback |
Up to 16 channels |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection; intelligent; alarm; POS |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback, general playback, event playback, target Video, video clip, tag playback, smart playback (face and motion detection) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Group | Yes | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cybersecurity exception |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
2-channel RCA |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
16 channels |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
6 channels (1-channel 12V 1A output) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Interface |
4 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA |
1 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-232 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 | 1 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
2 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PoE Port |
24 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
100–240 VAC, 50/60 Hz |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Total output of NVR is <13 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 200="" the="" maximum="" a="" single="" port="" 25="" 5="" p=""> |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
4.67 kg (10.30 lb) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
6.78 kg (14.95 lb) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

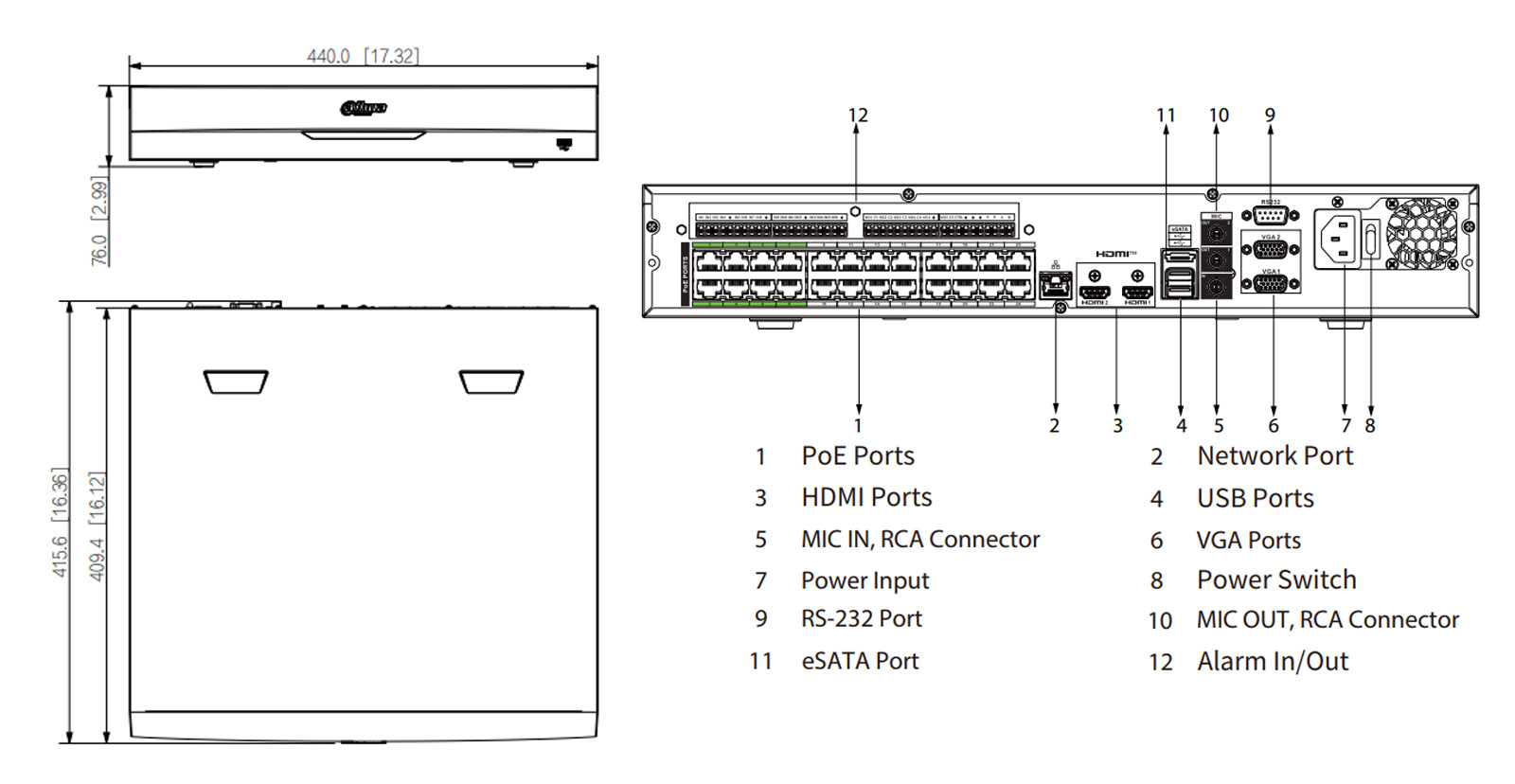

Product Dimensions |
440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") (W ×D × H) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
529.0 mm × 499.0 mm x 211.0 mm (20.83" × 19.65" × 8.31") (W ×D × H) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH), non-condensing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
