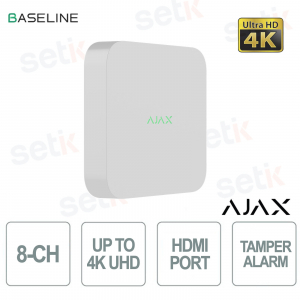

134500.122.WH1 | 8-CHANNEL NETWORK VIDEO RECORDER - HDMI PORT


Ajax

The Ajax NVR HAC, 134500.122.WH1, 8-channel network video recorder , with a compact, white design, offers maximum security and advanced video surveillance management. Thanks to the integrated HDMI port, you can directly connect a monitor for live viewing and playback of Full HD recordings, ensuring a smooth and reliable experience. With support for HDDs up to 16 TB and advanced security features, it is ideal for homes, offices, and small businesses .

Main specifications:

- 8 IP channels with ONVIF/RTSP support

- HDMI port for connecting a Full HD monitor

- Supports HDD up to 16TB

- TLS encrypted video streaming

- Local and remote management via dedicated apps

- Compact design, white color

Further details

Number of Channels:
It supports up to 8 channels in 4K resolution (25/30 fps) , allowing you to manage multiple IP and ONVIF cameras in a single system, with full compatibility with Ajax hubs.
Streaming Video :
Powered by JetSparrow technology , it offers fast and stable peer-to-peer streaming , dual streaming for instant preview, and seamless archiving with filters and calendar .
HDMI port :
Full HD output that allows you to directly connect a monitor to view live view and archives without the need for external software.
Communication Channels:
Use Ajax Cloud with TLS/mTLS encryption to ensure maximum data security, as well as encrypted communication between devices and remote control via the app.
Motion Detection:
It supports adjustable detection zones, configurable directly from the app, for intelligent monitoring and reduction of false alarms.
Anti-sabotage protection:
Includes anti-tamper button , dismount notifications, and owner-only access to recorded data, offering NDAA compliance and advanced security.

Technical data sheet

134500.122.WH1

Video Video input
8 channels
Recording resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output resolution
1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px
Live view / playback resolution
8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding Format
H.265, H.264, JetSparrow
Capability
  • 1 × channel at 8MP
  • 2 × channels at 5MP
  • 4 × channels at 1080p
  • 8 × channel at 1024 × 576 px
Live view window division
templates: 1, 4, 9, 16, 25, 5+1, 7+1, 12+1 views
custom: up to 10×10 views
Synchronous playback
8 channels
Intelligent video analytics Motion detection
Ajax camera: 8 channels
NVR: 8 channels
NVR HAC features built-in software to detect movement in the frame. It is possible to switch between image analysis by NVR HAC or camera algorithms in an Ajax app
AI object detection
Ajax camera: 8 channels
Interface HDD
1 × SATA: supports hard drive with up to 16 TB capacity (3.5” form factor) HDD is not included.
Network
1 × RJ-45 self-adaptive Ethernet (10/100 Mbps)
USB
rear panel: 1 × USB 2.0 (Type-A)
side panel: 1 × USB 2.0 (Type-A)
To connect a keyboard, mouse, or a USB flash drive.
Network Bandwidth
incoming: up to 80 Mbps
outgoing: up to 40 Mbps
Protocol
HTTP, HTTPS, TCP/IP, IPv4, IPv6, SNMP, RTSP, UDP, DHCP, DNS, DDNS
Interoperability
ONVIF
Key features Supported devices
  • Ajax cameras
  • IP cameras using ONVIF (Profile S/T) or RTSP
Built-in video monitoring software (VMS)
  • Integrated video wall interface with live camera feeds.
  • Smart event filters for quick access to relevant footage
  • Interactive timeline with preview navigation for efficient playback and incident review.
Visual verification of Ajax system alarms
NVR HAC supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows for immediate intrusion verification by the operator.
Privacy
Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner. This guarantees that only authorized parties can access video streams, event history, or device settings, in accordance with the owner's preferences.
Recommendations The device operating voltage is 110–240 V~.
The device is designed for indoor installation only.
Power supply Main
110–240 V, 50/60 Hz, 0.6 A
Power consumption
up to 24 W
Clock battery
CR2032 battery, 3 V
Only to power the system clock
Enclosure Dimensions
212 × 212 × 64 mm
8.33″ × 8.33″ × 2.50″
Weight
782g
1,724 lb
Without a hard drive.
Operating temperature range
from 0 °C to +40 °C
from 32 °F to 104 °F
Operating humidity
up to 75%
Protection class
IP20
Color White
Complete set NVR HAC (8-ch)
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
