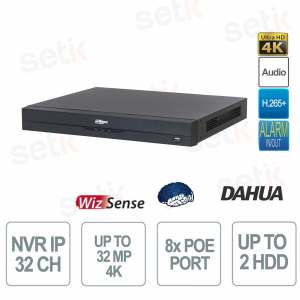

NVR5232-8P-EI2 | NVR 32 IP CHANNELS ONVIF® POE DAHUA - 4K ULTRA HD - 8 POE PORTS - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The NVR5232-8P-EI2 is a 32-channel NVR with 8 PoE ports and 2 HDDs from the WizSense range, designed to ensure advanced security and intelligent management of IP systems. Equipped with AI Features with deep learning algorithms, it offers Face Detection , Face Recognition , Perimeter Protection and the AcuPick system for fast and precise searches. The NVR NEXT interface simplifies management, while the Vehicle License Plate Comparison (ANPR) and PPE Detection by Camera functions make the analysis even more comprehensive.

Main specifications:

- 32 Channels and 8 Built-in PoE Ports

- Resolution up to 32MP and 8K HDMI output

- AcuPick for intelligent target search

- NVR NEXT with user-friendly modular interface

- AI Features for false alarm reduction

- Perimeter Protection, Face Detection and Face Recognition

- Vehicle License Plate Comparison (ANPR)

- PPE Detection by Camera for PPE detection

Further details

Number of Channels :
The NVR5232-8P-EI2 supports up to 32 IP channels , ensuring simultaneous management of a large number of cameras for comprehensive coverage.
Resolution:
It offers support for up to 32MP and 8K HDMI video output, ensuring sharp and detailed images even in complex scenarios.
PoE Port:
It integrates 8 PoE ports (IEEE 802.3 af/at) with ePoE support , to directly power the cameras, simplifying installation .
AcuPick:
AcuPick technology combines front-end and back-end intelligence for fast and precise searches across video streams, dramatically reducing target identification times.

NVR NEXT:
The NVR NEXT interface is designed with a modular and intuitive design, streamlining workflows and simplifying management, ideal for SMBs and scalable installations.
AI Features:
Thanks to the AI processor and deep learning algorithms, it includes functions such as SMD Plus , behavioral analysis, people counting, heat map and false alarm reduction.
Perimeter Protection:
With the perimeter protection function , the system recognizes intrusions and suspicious movements in real time, distinguishing people and vehicles to maximize security .
Face Detection:
It integrates facial detection across multiple channels, analyzing attributes such as age, gender, expressions, and the presence of masks, improving the accuracy of reporting .
Face Recognition :
With the facial recognition function , it manages up to 20 databases with 30,000 images , useful for access control and rapid identification .

Vehicle License Plate Comparison:
The system supports ANPR (Automatic Number Plate Recognition) for license plate recognition and comparison, with capacity for up to 20,000 registered numbers .
Network:
Compatible with IPv4/IPv6, HTTP/HTTPS, FTP, SNMP, ONVIF protocols, supports remote access via browser or mobile app (iOS/Android).
Alarm:
It has general, anomaly and intelligent alarms (face detection, perimeter protection, people counting, PPE detection), with 4 inputs and 2 alarm outputs.
PPE Detection by Camera:
The system detects personal protective equipment such as helmets, masks, reflective vests and glasses , reporting any shortages and ensuring compliance with safety regulations .

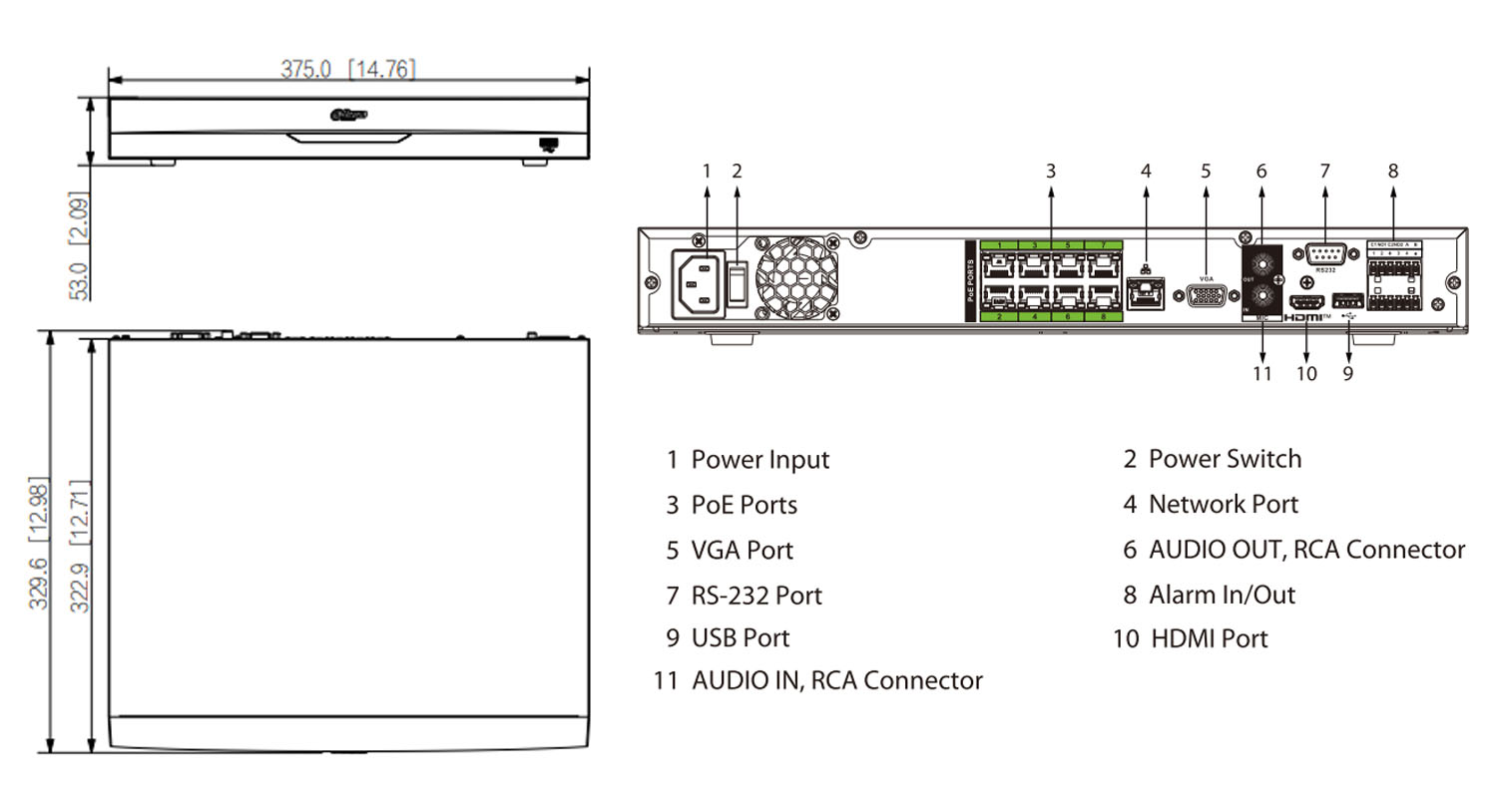

NVR5232-8P-EI2 dimensions

Technical data sheet

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
NVR5232-8P-EI2

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

4 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

Max. 32-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

4 channels, 22 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

People Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

32 channels

Network Bandwidth

AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 32-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps

Video Output

2 VGA, 2 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI and VGA

Multi-screen Display

Main screen: 1/4/8/9/16/25/36
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access
