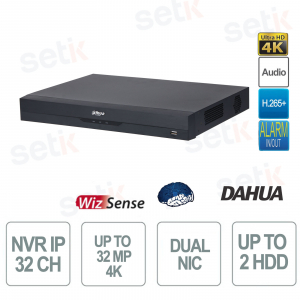

NVR5232-2N-EI2 32 Channels with AI, AcuPick, Face Recognition and Dual NIC - Dahua

NVR5232-2N-EI2 32 Channels with AI, AcuPick, Face Recognition and Dual NIC - Dahua
BEST PRICE -56% nuevo

NVR5232-2N-EI2 - is a 1U 32-channel NVR with 2 HDDs from the WizSense range, designed to offer high performance and intelligent management of IP video surveillance. Thanks to the industrial processor and AI Features algorithms based on deep learning, it guarantees advanced functions such as Face Detection , Face Recognition , Perimeter Protection and intelligent search with AcuPick , as well as Vehicle License Plate Comparison (ANPR) for license plate recognition and management. The modular and intuitive NVR NEXT interface simplifies daily operations, while the system supports resolutions up to 32MP with 8K HDMI output, ensuring sharp images and smooth performance. Thanks to the extensive Network functions and advanced Alarm management, the device guarantees maximum integration and security. Furthermore, the PPE Detection by Camera function detects helmets, masks, vests and other PPE, increasing compliance with safety regulations. 2 network ports (dual NIC) , which enable redundancy, load balancing and link aggregation , offering greater reliability and business continuity. Dahua

Technical Data Sheet

referencia : NVR5232-2N-EI2

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR5232-2N-EI2 | DAHUA 32-CHANNEL IP ONVIF® NVR - 4K ULTRA HD - 2 POE PORTS - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The NVR5232-2N-EI2 is a 1U 32-channel NVR with 2 HDDs from the WizSense range, designed to offer high performance and intelligent video analytics. Thanks to the industrial processor and AI Features algorithms, it guarantees advanced functions such as Face Detection , Face Recognition , Perimeter Protection and quick search with AcuPick , as well as support for Vehicle License Plate Comparison (ANPR) . The intuitive NVR NEXT interface optimizes operational workflows, while compatibility with resolutions up to 32MP and 8K HDMI output , advanced network management and intelligent alarm systems ensure maximum safety. Furthermore, the PPE Detection by Camera function detects PPE such as helmets, masks and vests, improving regulatory compliance.

Main specifications:

- 32 IP Channels

- Resolution up to 32MP and 8K HDMI output

- AcuPick for fast and intelligent searches

- NVR NEXT with user-friendly modular interface

- AI Features with deep learning and false alarm reduction

- Perimeter Protection, Face Detection and Face Recognition

- Vehicle License Plate Comparison (ANPR) with a database of up to 20,000 license plates

- Advanced network with dual ports and balancing functions

- Intelligent and customizable alarms

- PPE Detection by Camera for Occupational Safety

Further details

Number of Channels :
It supports up to 32 IP channels , ensuring simultaneous management of multiple cameras for complete video surveillance .
Resolution:
Compatible with cameras up to 32MP and 8K HDMI output , for extremely sharp and detailed images .
Dual NIC:
The 2N acronym indicates the presence of 2 Gigabit network ports (RJ-45) which allow redundancy, load balancing and link aggregation, improving reliability and continuity of service .
AcuPick:
AcuPick technology combines front-end and back-end intelligence for fast and precise searches across video streams, dramatically reducing target identification times.

NVR NEXT:
The NVR NEXT interface is designed with a modular and intuitive design, streamlining workflows and simplifying management, ideal for SMBs and scalable installations.
AI Features:
Thanks to the AI processor and deep learning algorithms, it includes functions such as SMD Plus , behavioral analysis, people counting, heat map and false alarm reduction.
Perimeter Protection:
With the perimeter protection function , the system recognizes intrusions and suspicious movements in real time, distinguishing people and vehicles to maximize security .
Face Detection:
It integrates facial detection across multiple channels, analyzing attributes such as age, gender, expressions, and the presence of masks, improving the accuracy of reporting .
Face Recognition :
With the facial recognition function , it manages up to 20 databases with 30,000 images , useful for access control and rapid identification .

Vehicle License Plate Comparison:
The system supports ANPR (Automatic Number Plate Recognition) for license plate recognition and comparison, with capacity for up to 20,000 registered numbers .
Network:
Compatible with IPv4/IPv6, HTTP/HTTPS, FTP, SNMP, ONVIF protocols, supports remote access via browser or mobile app (iOS/Android).
Alarm:
It has general, anomaly and intelligent alarms (face detection, perimeter protection, people counting, PPE detection), with 4 inputs and 2 alarm outputs.
PPE Detection by Camera:
The system detects personal protective equipment such as helmets, masks, reflective vests and glasses , reporting any shortages and ensuring compliance with safety regulations .

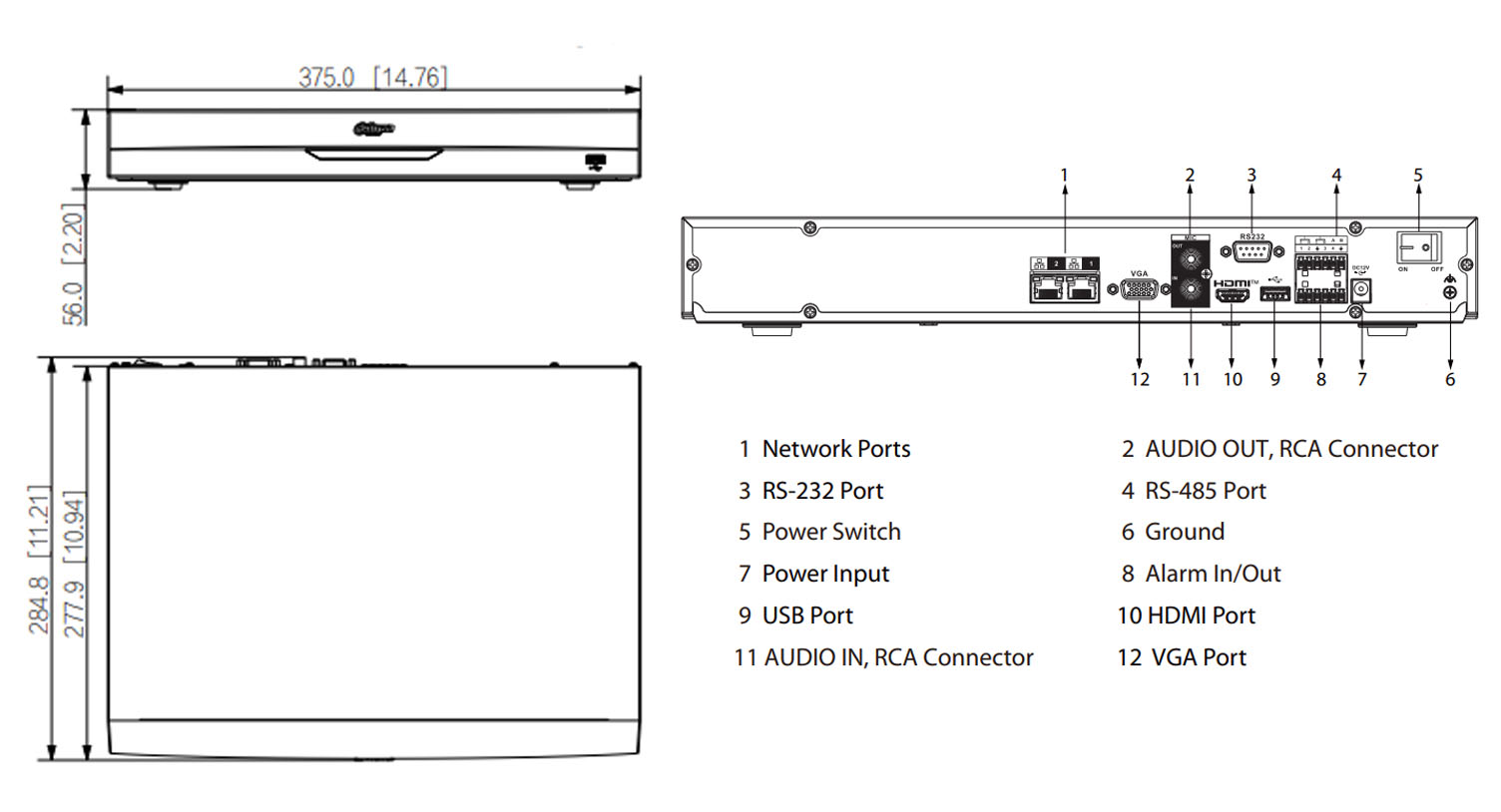

NVR5232-2N-EI2 dimensions

Technical data sheet

NVR5232-2N-EI2

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

4 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

Max. 32-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

4 channels, 22 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

People Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

32 channels

Network Bandwidth

AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 32-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps

Video Output

2 VGA, 2 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI and VGA

Multi-screen Display

Main screen: 1/4/8/9/16/25/36
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
