NVR5232-16P-EI2 - is a 32-channel NVR with 16 PoE ports and 2 HDDs from the WizSense range, designed to offer high performance in IP video surveillance. Thanks to the industrial processor and integrated AI with deep learning , it guarantees advanced functions such as AcuPick for fast and targeted searches, Face Detection and Face Recognition with a database of up to 30,000 images, intelligent Perimeter Protection and Vehicle License Plate Comparison (ANPR) for license plate recognition. The NVR NEXT interface simplifies management with a modular design, while the AI Features reduce false alarms. With support for up to 32MP , 8K HDMI output , DPI detection (PPE Detection by Camera) and extensive Network and Alarm options, it represents a scalable and secure solution for professionals and end users. Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

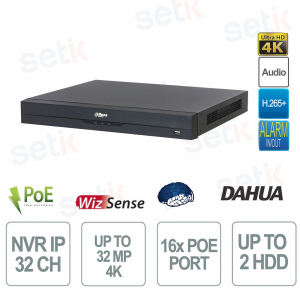

NVR5232-16P-EI2 | NVR 32 IP CHANNELS ONVIF® POE DAHUA - 4K ULTRA HD - 16 POE PORTS - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE

The NVR5232-16P-EI2 is a 32-channel NVR with 16 PoE ports and 2 HDDs from the WizSense range, designed to ensure advanced security and intelligent management of IP systems. Equipped with AI Features with deep learning algorithms, it offers Face Detection , Face Recognition , Perimeter Protection and the AcuPick system for fast and precise searches. The NVR NEXT interface simplifies management, while the Vehicle License Plate Comparison (ANPR) and PPE Detection by Camera functions make the analysis even more comprehensive.
Main specifications:
- 32 Channels and 16 Built-in PoE ports
- Resolution up to 32MP and 8K HDMI output
- AcuPick for intelligent target search
- NVR NEXT with user-friendly modular interface
- AI Features for false alarm reduction
- Perimeter Protection, Face Detection and Face Recognition
- Vehicle License Plate Comparison (ANPR)
- PPE Detection by Camera for PPE detection
Further details
✅ NVR NEXT:

Technical data sheet
CE-LVD: EN 62368-1:2014
NVR5232-16P-EI2 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
TO THE |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Recorder |
Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI by Camera |
Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick Performance of AI by Recorder (1080P) (Number of Channels) |
4 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AcuPick Performance of AI by Camera (1080P) (Number of Channels) |
Max. 32-channel, 1 combined event per channel/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Recorder (Number of Channels) |
8 channels, 10 IVS rules for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance of AI by Camera (Number of Channels) |
All channels (32 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes |
Gender; age group; glasses; expressions; face mask; beard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels) |
4 channels (up to 12 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Camera (Number of Channels) |
All channels (32 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity |
Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels) |
1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Camera (Number of Channels) |
All channels (32 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Camera |
All channels (64 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Metadata |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metadata Performance of AI by Camera (Number of Channels) |
4 channels, 22 attributes extraction. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Metadata Performance of AI by Camera (Number of Channels) |
All channels (16 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Attributes |
Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motor Vehicle Attributes |
License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Non-motor Vehicle Attributes |
Vehicle model, vehicle color, number of persons, helmet. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vehicle License Plate Comparison |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ANPR by Camera (Number of Channels) |
All channels (8 targets/s) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
License Plate Database Capacity |
1. Create up to 20,000 plate numbers. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Access Channel |
32 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Bandwidth |
AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Decoding Capability |
AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 32-channel 1080p@30fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output |
2 VGA, 2 HDMI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Display |
Main screen: 1/4/8/9/16/25/36 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access |
ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
