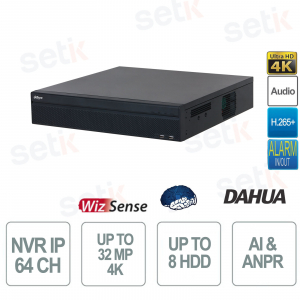

NVR5864-EI2 | NVR 64 IP CHANNELS ONVIF® DAHUA - 4K ULTRA HD - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua DHI-NVR5864-EI2 is a network video recorder from the WizSense EI2 range, ideal for high-performance professional surveillance systems. Equipped with 64 channels and support for up to 32 MP , it ensures ultra-clear images with 8K HDMI output and smooth video stream management. Thanks to AcuPick technology, it allows for intelligent and fast searches, while the NVR NEXT interface makes use simple and efficient. Integrated AI features include Perimeter Protection, Face Detection, Face Recognition, Vehicle License Plate Comparison and PPE Detection by Camera , ensuring advanced security and false alarm reduction.

Main specifications:

- 64 channels with support for cameras up to 32 MP

- HDMI 8K and bandwidth up to 448 Mbps

- AcuPick for fast and precise searches

- Advanced AI: Face Recognition, Perimeter Protection, PPE Detection

- ONVIF compatibility and RAID management up to 8 HDDs of 20TB each

Further details

✅ Number of Channels :
The device supports 64 IP channels , ideal for large video surveillance systems that require centralized management and scalability.
✅ Resolution:
Compatible with cameras up to 32 MP and equipped with 8K HDMI output, it offers detailed and smooth images, with maximum bandwidth up to 448 Mbps .
✅ AcuPick:
Innovative technology that leverages front-end and back-end intelligence for fast and accurate searches, dramatically reducing video analysis times.

✅ NVR NEXT:
Modular, intuitive and optimized graphical interface for simplified workflows, designed to increase operational efficiency even in complex contexts.
✅ AI Features:
Thanks to deep learning algorithms, it integrates advanced functions such as intelligent detection, video metadata, false alarm reduction and predictive analysis.
✅ Perimeter Protection:
Supports up to 8 channels from NVR and protection on all camera channels , with IVS rules for accurate control of sensitive areas .
✅ Face Detection:
Enables face detection with attribute analysis (age, gender, glasses, mask, expressions), up to 32 targets/s from camera.
✅ Face Recognition :
It manages up to 20 databases with 30,000 images and real-time recognition capabilities on 32 channels , useful for access and identification .

✅ Vehicle License Plate Comparison:
ANPR function with database of up to 20,000 license plates , with the possibility of blocklists and allowlists for advanced vehicle control.
✅ Network:
It supports advanced protocols (HTTP/HTTPS, IPv4/IPv6, SNMP, P2P, iSCSI) and guarantees ONVIF compatibility, with remote access from iOS and Android apps.
✅ Alarm:
Equipped with 16 inputs and 8 alarm outputs , it manages generic and intelligent events such as motion detection, system anomalies, suspicious sounds and altered scenes.
✅ PPE Detection by Camera:
Automatically detects personal protective equipment such as helmets, masks, glasses and jackets, generating alarms in case of non-compliance with safety regulations .

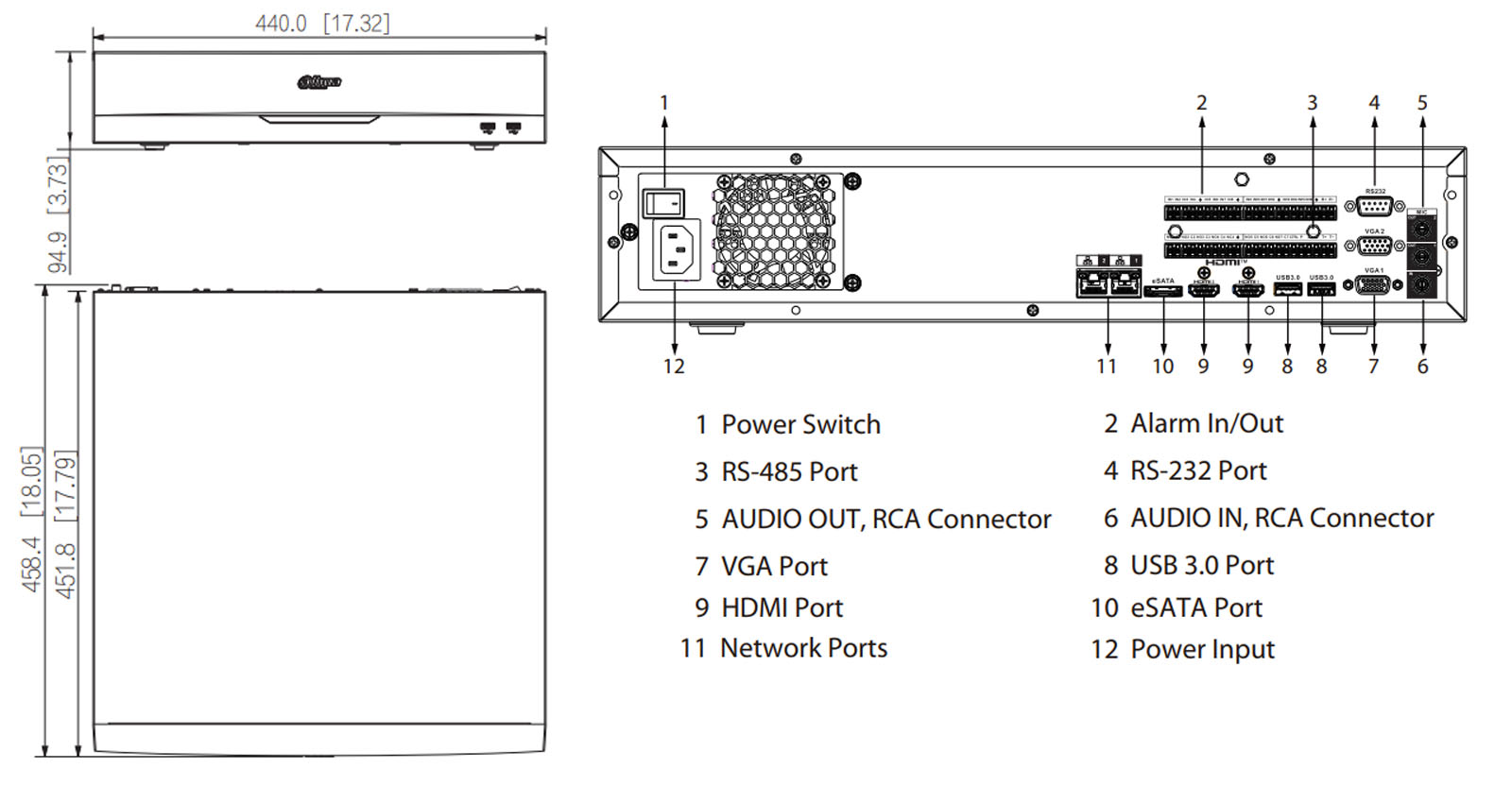

NVR5864-EI2 dimensions

Technical data sheet

NVR5864-EI2

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

4 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

Max. 32-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

4 channels, 22 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

People Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

64 channels

Network Bandwidth

AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 40-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps

Video Output

2 VGA, 2 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2

Multi-screen Display

Main screen: 1/4/8/9/16/25/36/64
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

RAID

RAID 0/1/5/6/10

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cybersecurity exception

Intelligent Alarm

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

2-channel RCA

Alarm Input

16 channels

Alarm Output

8 channels (1-channel 12V 1A output)

HDD Interface

8 SATA ports, each disk can contain up to 20TB. This limit varies depending on the environment temperature.

eSATA

1

RS-232

1

RS-485

1

RS-422

1

USB

4 (2 front USB 2.0 port, 2 rear USB 3.0 port)

HDMI

2

VGA

2

Network Port

2(10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

Total output of NVR is ≤ 13 W (without HDD)

Net Weight

6.27 kg (13.82 lb)

Gross Weight

8.75 kg (19.29 lb)

Product Dimensions

440.0 mm × 458.4 mm × 94.9 mm (17.32" × 18.05" × 3.73") (W × D × H)

Packaging Dimensions

570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
